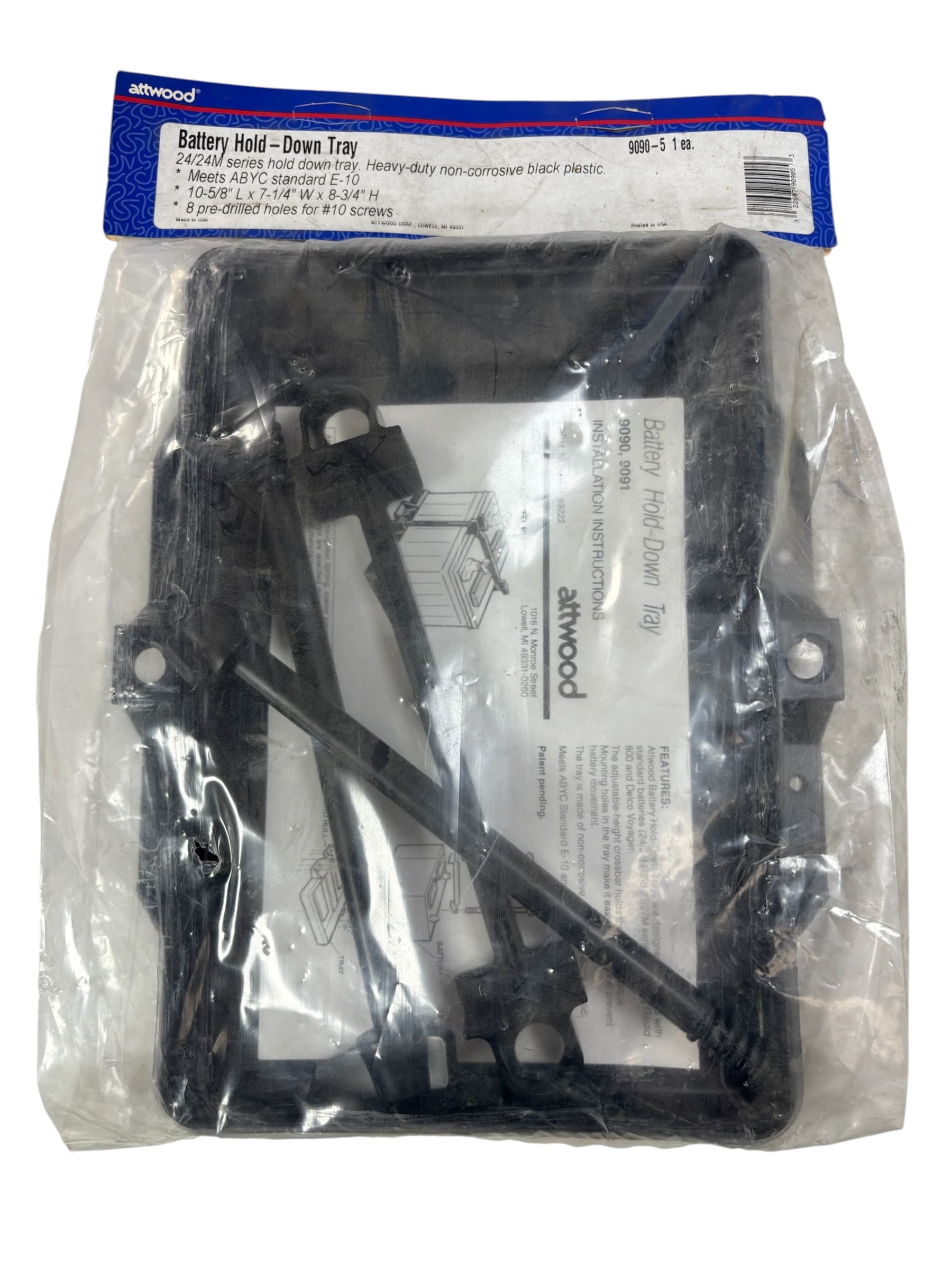

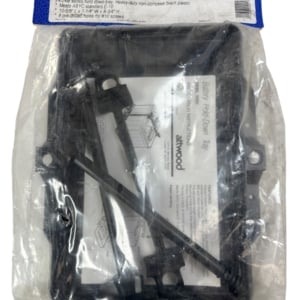

Manufacturer: Attwood Marine
Series / Collection: Low Profile Adjustable Battery Tray Series
Part Numbers Covered: 9090, 9090-1, 9090-5

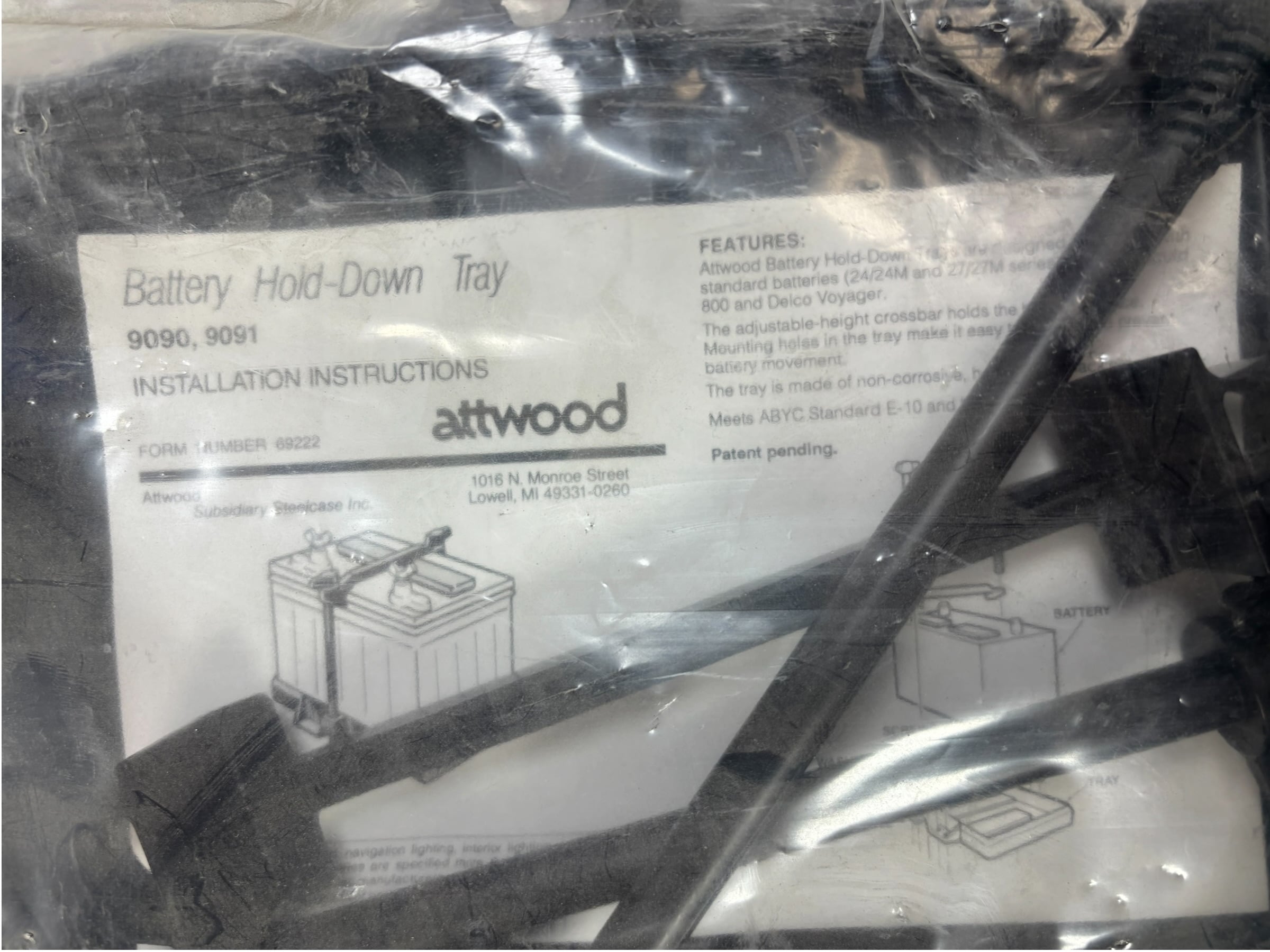

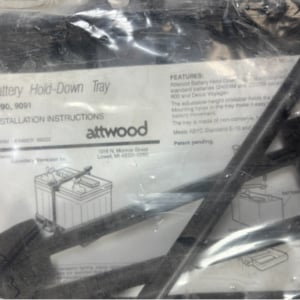

Installation Instruction Form Reference: 69222 / 69222 Rev. B
Related Series Configurations: 9091, 9091-1, 9091-5 (Group 27 equivalents)
Battery Fitment Class: Group 24 and 24M Series Marine or RV Batteries

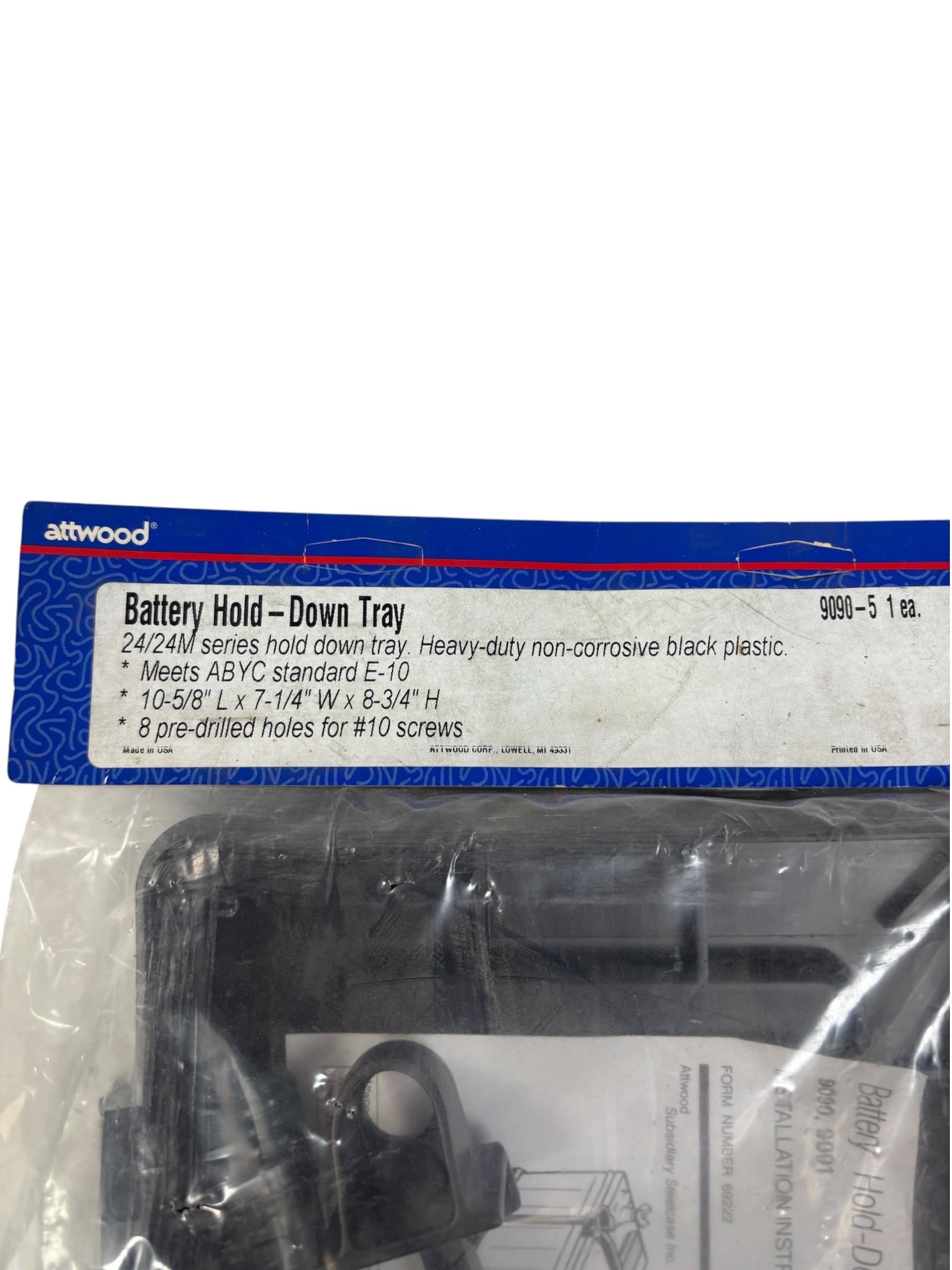

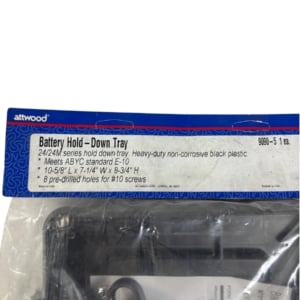

Tray Inside Dimensions: 10-5/8" Long x 7-1/4" Wide x 8-3/4" High

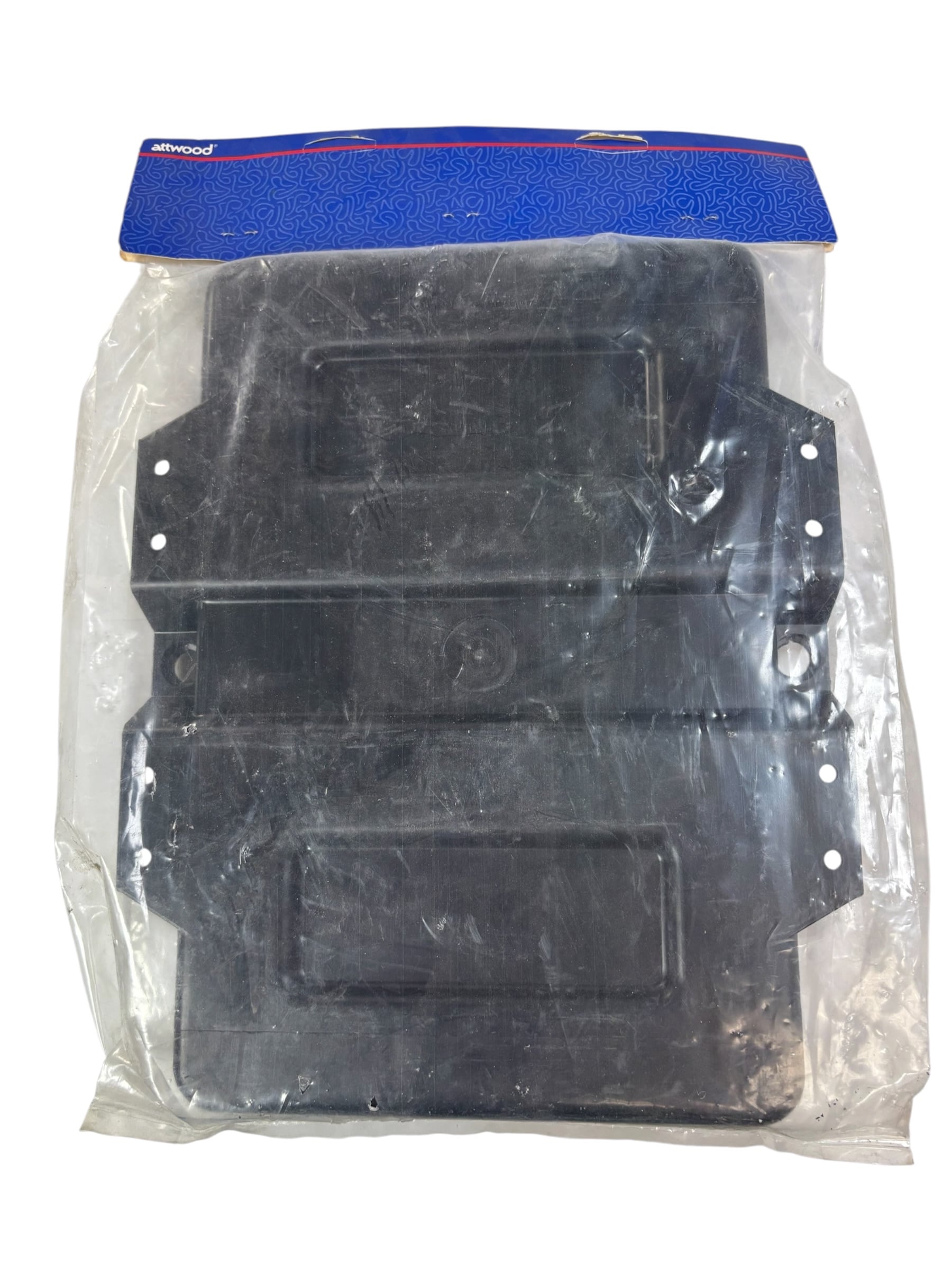

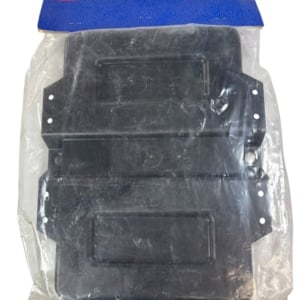

Structural Material: Heavy-Duty Non-Corrosive Injection Molded Black Plastic
Safety Standards Certification: Meets ABYC Standard E-10 / R-10 and U.S. Coast Guard (USCG) Requirements
Mounting Configuration: 8 Pre-Drilled Integrated Fastener Holes
Required Installation Hardware: Engineered for #10 Stainless Steel Screws / Fasteners
Hold-Down Mechanism: Adjustable-Height Crossbar with Two Specialized Retaining Bolts
Hardware Composition Advantage: Contains no metal components to rust out and no webbing straps to rot or fade
Primary Application: Securely floor-mounting or bulkhead-mounting starting, deep-cycle, or dual-purpose batteries in boats, trailers, and utility vehicles
