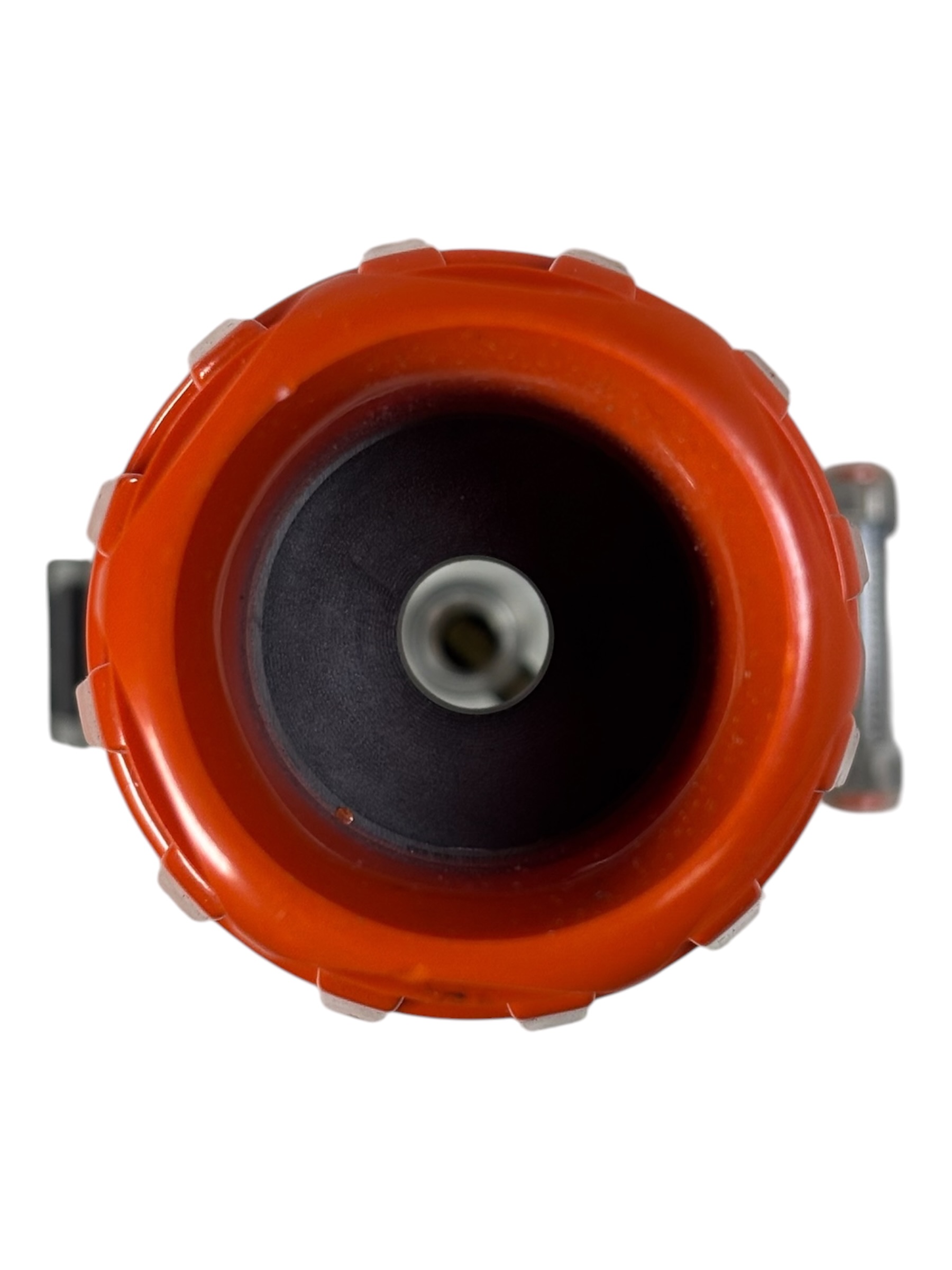

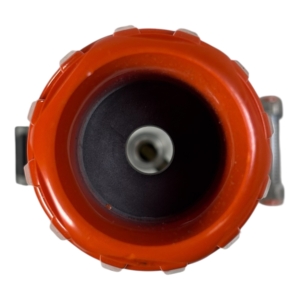

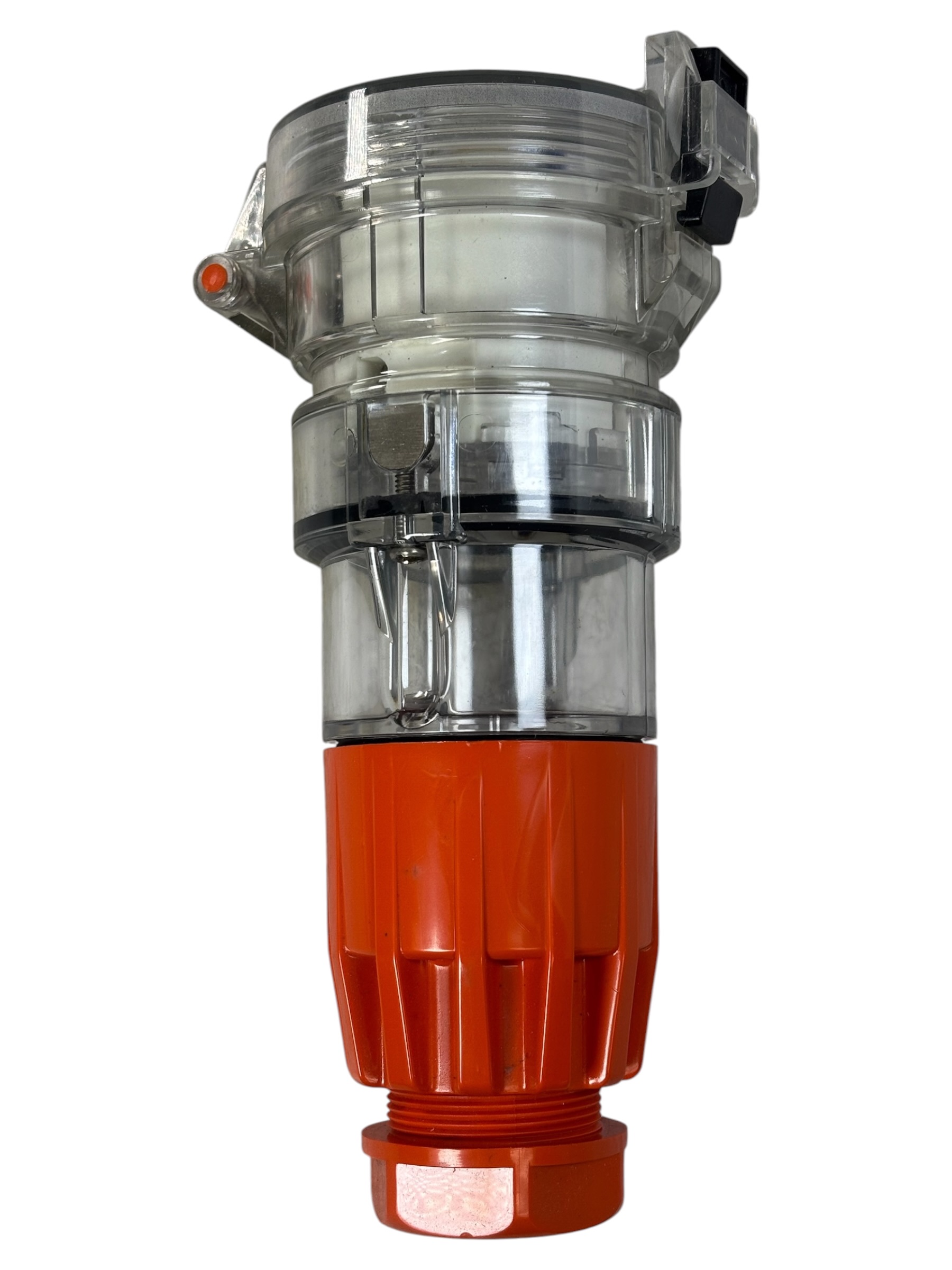

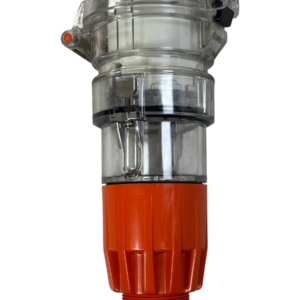

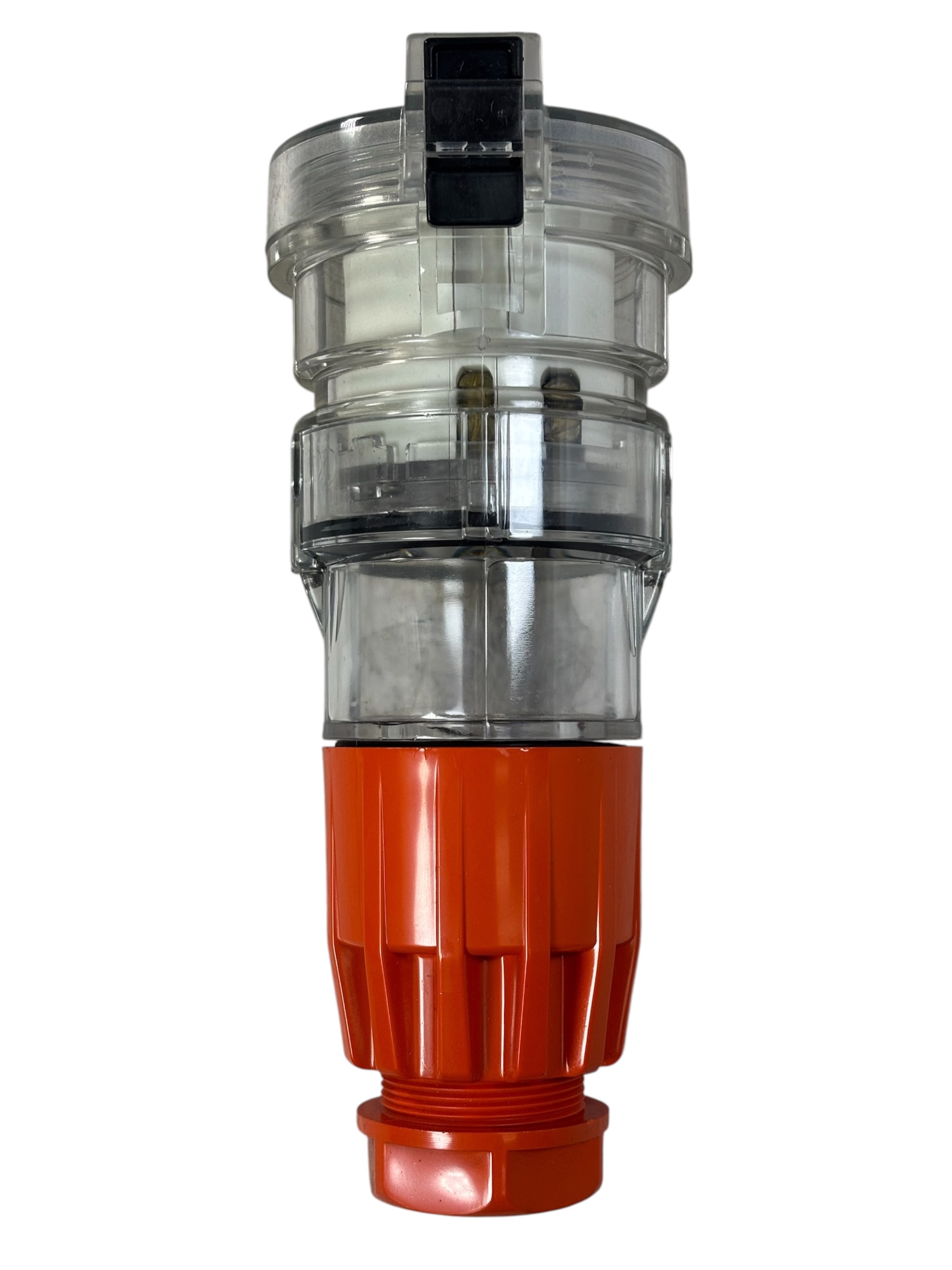

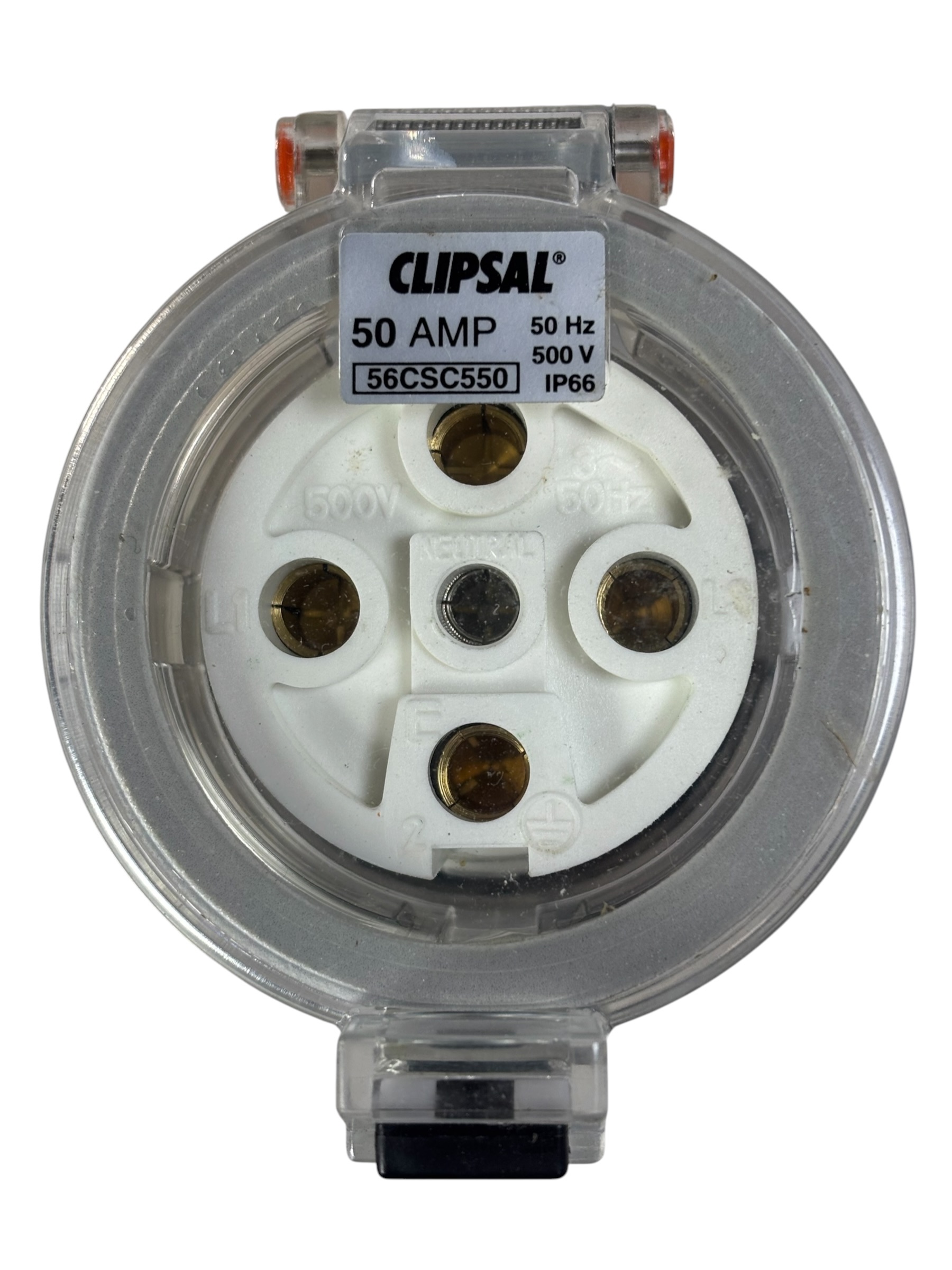

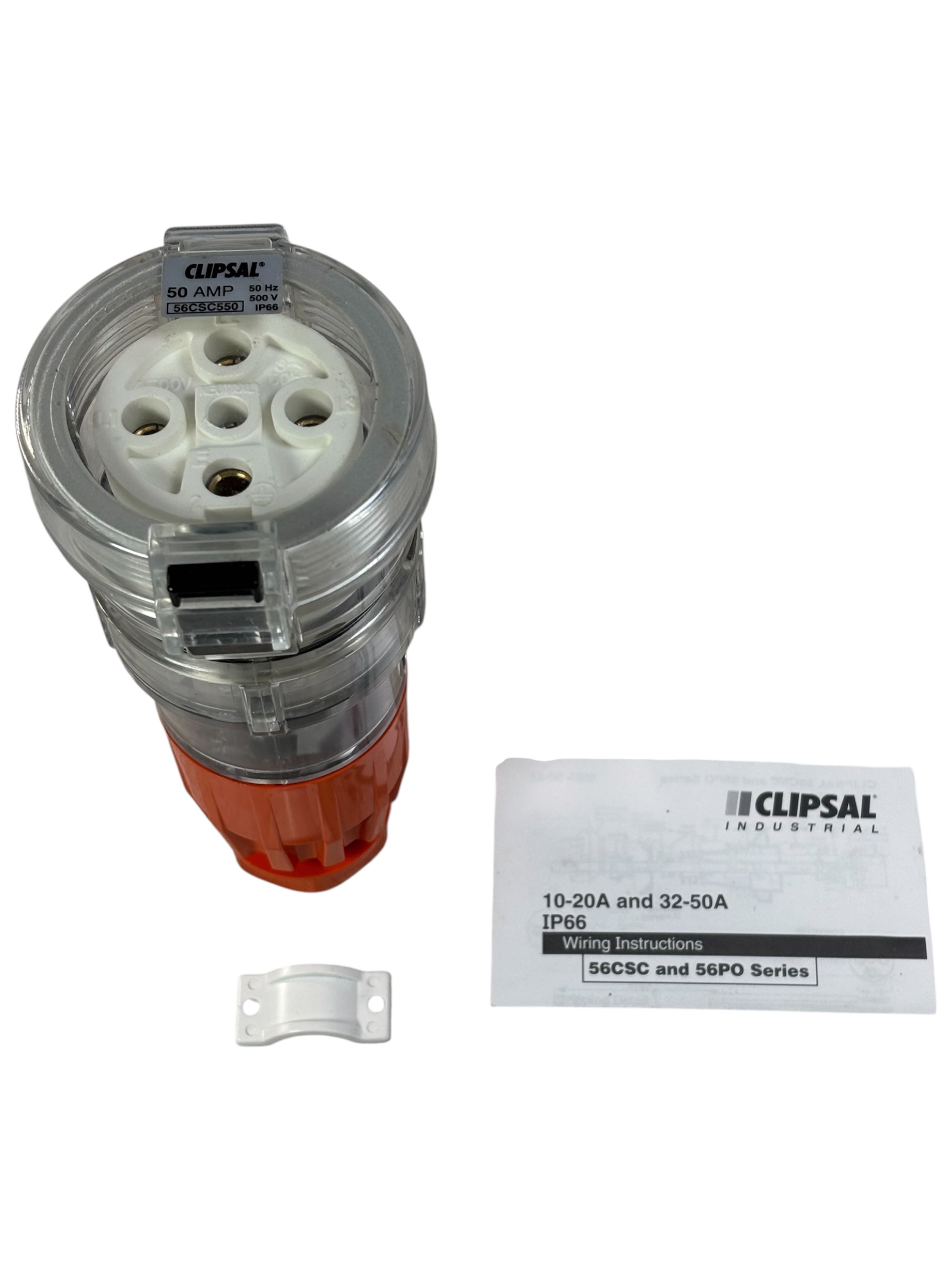

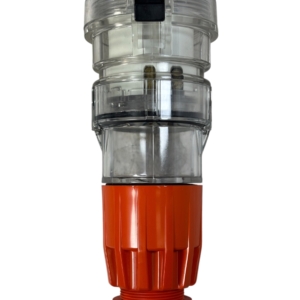

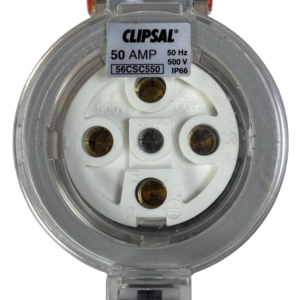

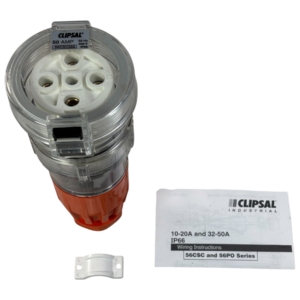

Up for sale is a genuine Clipsal 56 Series heavy-duty industrial cord extension socket. This premium 50A, 500V 5-round-pin connector acts as an important design breakthrough by functioning as a universal unit for both cord extension sockets and appliance connector configurations. Molded from highly durable polycarbonate material in high-visibility Electric Orange, it features an industry-standard IP66 rating to withstand complete dust ingress and powerful high-pressure water jets from any direction. Engineered purposefully for the commercial, agricultural, utility, and heavy manufacturing sectors, it delivers safe, secure, and uninterrupted 3-phase power delivery under the absolute harshest environmental conditions.

Key Features

High-Visibility Casing: Robust polycarbonate housing finished in vibrant Electric Orange to reduce structural hazards and eliminate accidental field disconnections.
Advanced IP66 Weatherproofing: Heavy-duty environmental sealing makes this unit completely dust-tight and rainproof for dependable indoor or outdoor job site routing.
Premium Terminal Architecture: Equipped with high-conductivity brass contact sleeves and wide-access screw terminals for lower line resistance.
Integrated Cord Gland Security: Built-in M40 cable entry gland ensures an incredibly tight grip that prevents internal wire strain and structural sliding.

Technical Specifications

Brand: Clipsal (Schneider Electric)
Series Range: 56 Series
Item Number: 56CSC550-EO
Rated Current Amperage: 50 Amps
Rated Operational Voltage: 500V AC (50 Hz)
Pin Layout Assembly: 5 Round Pins (3P + N + E Configuration)
Ingress Protection Rating: IP66 Certified
Housing Material Composition: Polycarbonate
Contact Sleeve Material: High-Grade Brass
Terminal Size Capacity: 2.5 mm² to 25 mm² Screw Terminals
Thread Type Metric: M40
Cable Entry Outer Diameter Range: 9 mm to 29 mm Cable Gland Accommodations
Operational Temperature Range: Severe -25°C up to 75°C Ambient Air Windows
Compliance & Standards: Fully conforms to AS/NZS 3120 and EN 60309-2 industrial expectations
Physical Dimensions: 184 mm Length x 180 mm Depth x 90 mm Width x 90 mm Height
Net Unit Weight: 0.409 kg

Please review your cable gauge limits and pin alignment markers carefully before finalizing installation wiring. Feel free to send a message if you have any questions!
