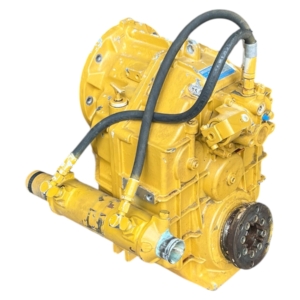

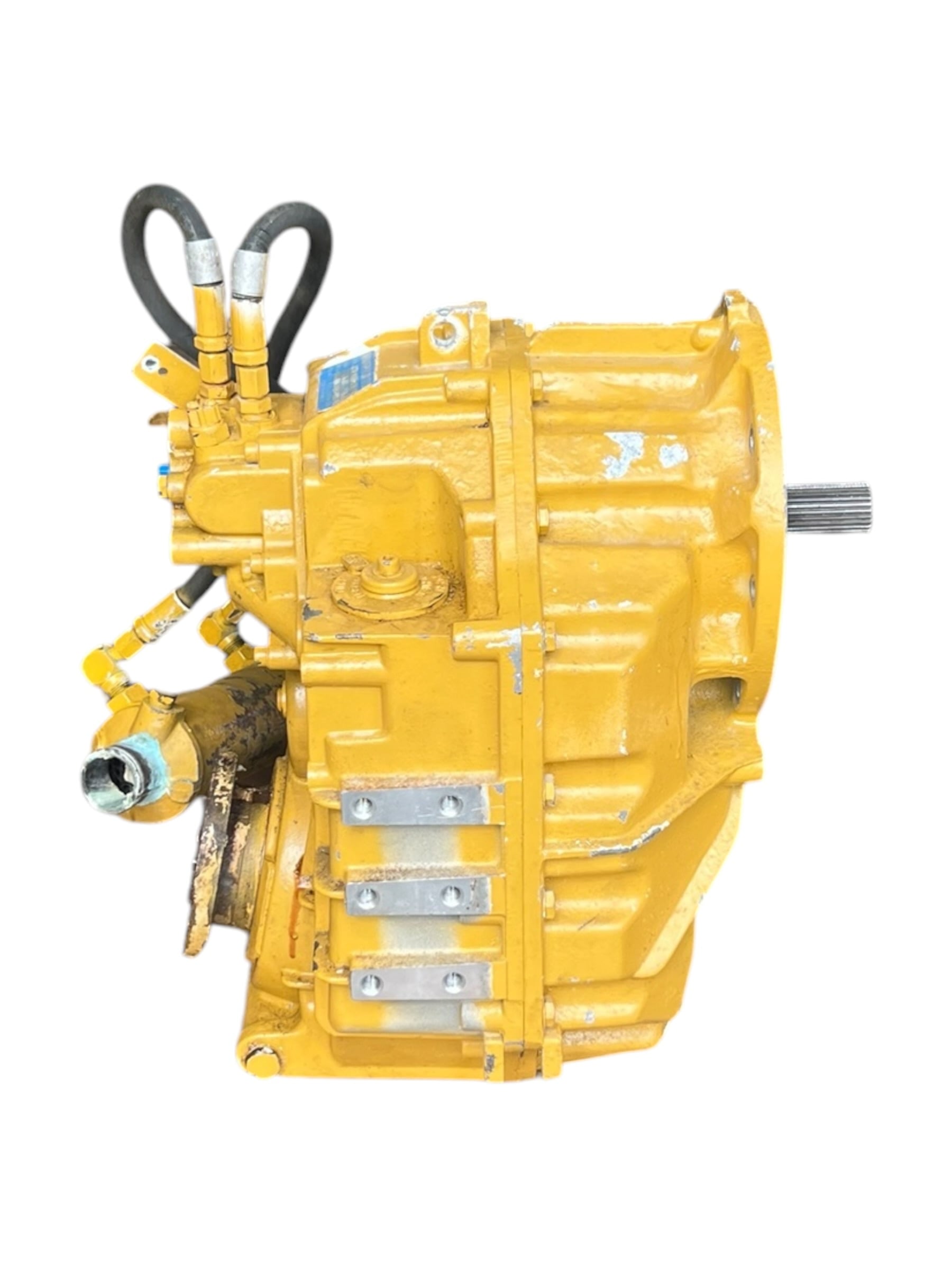

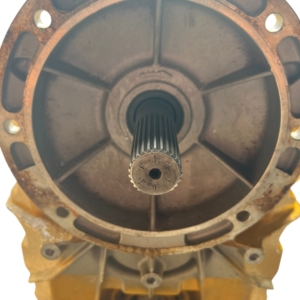

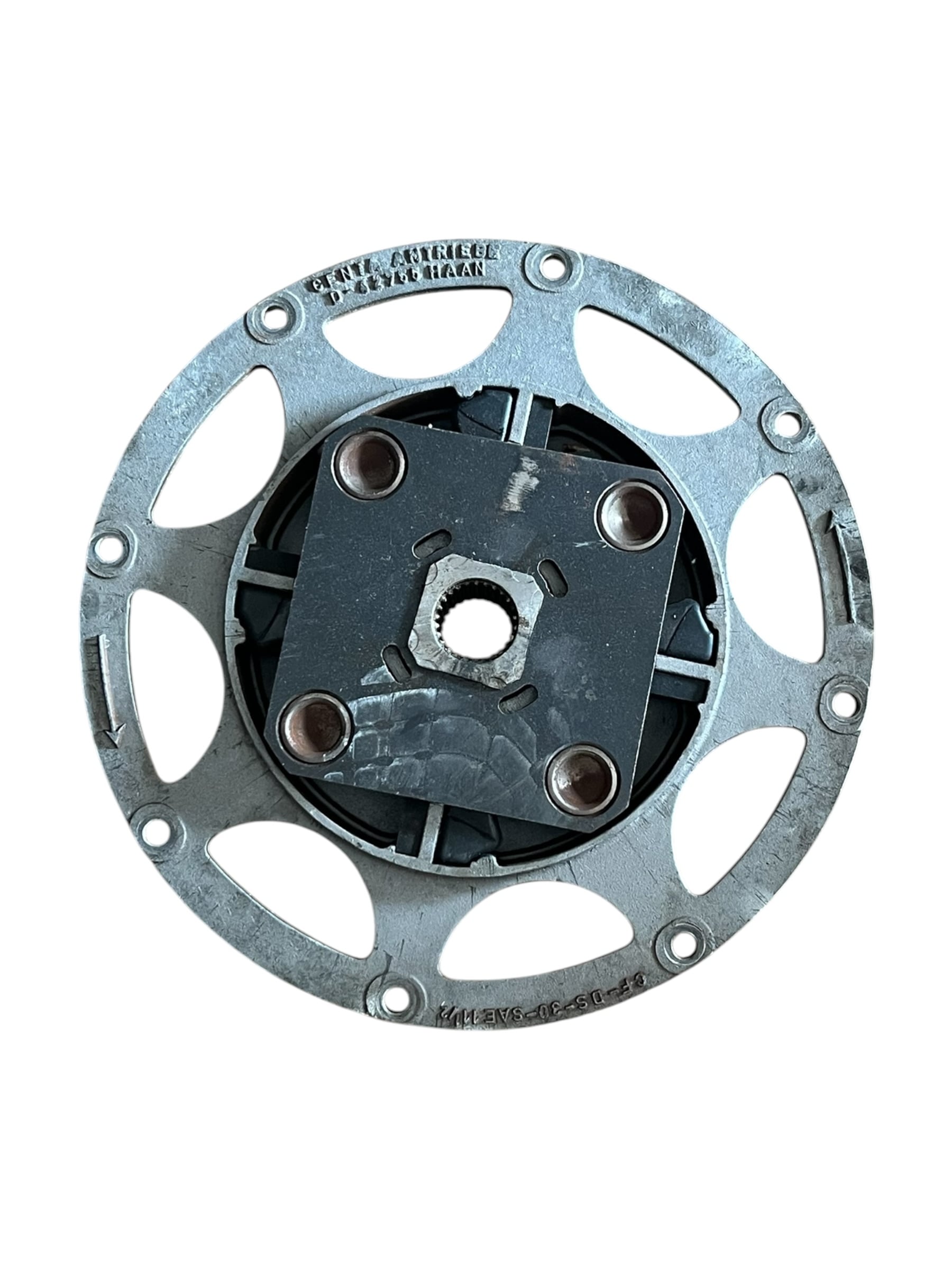

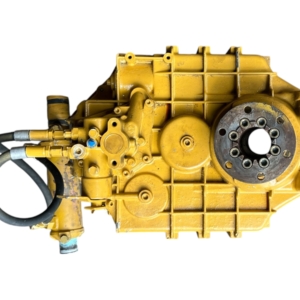

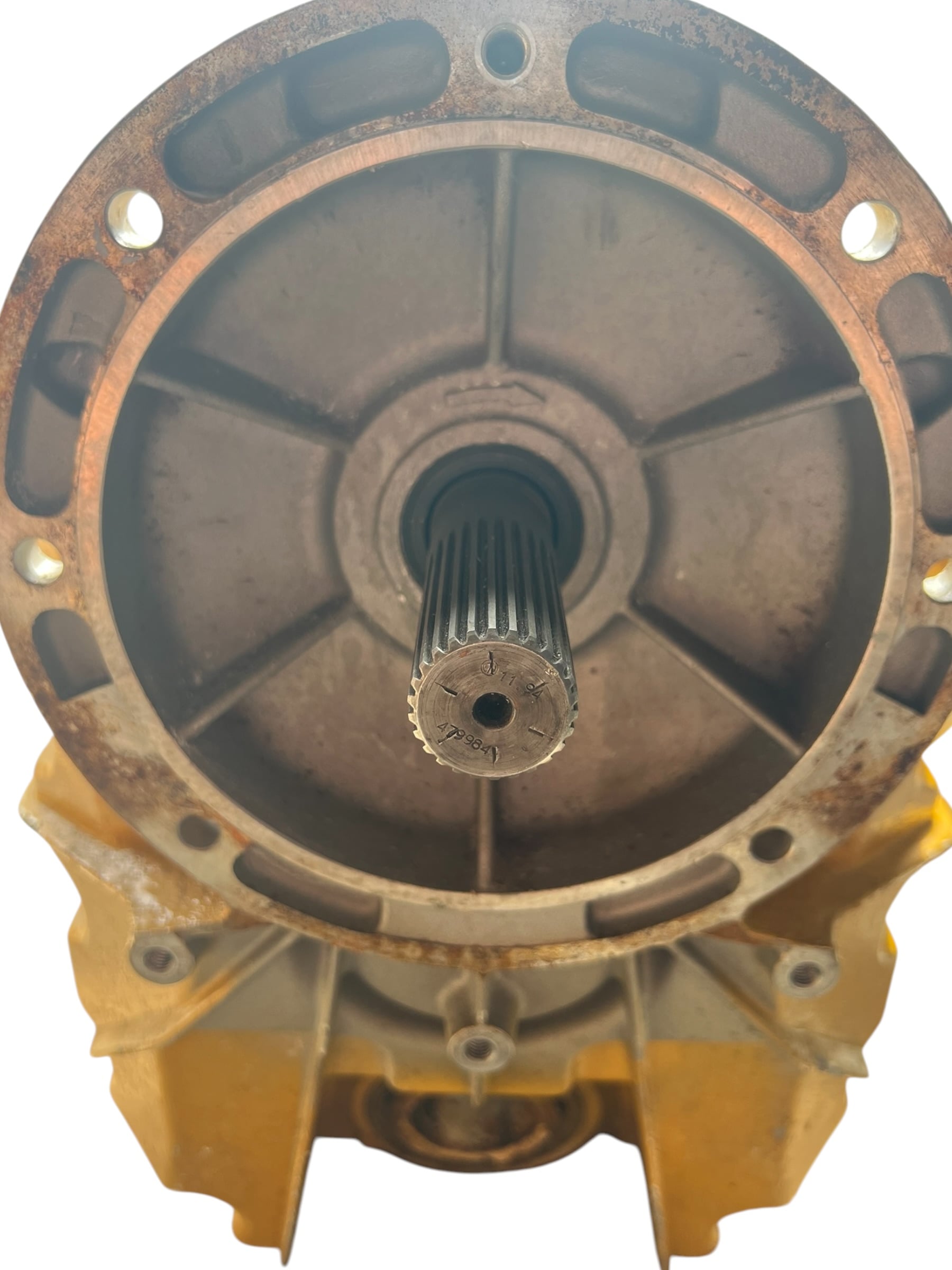

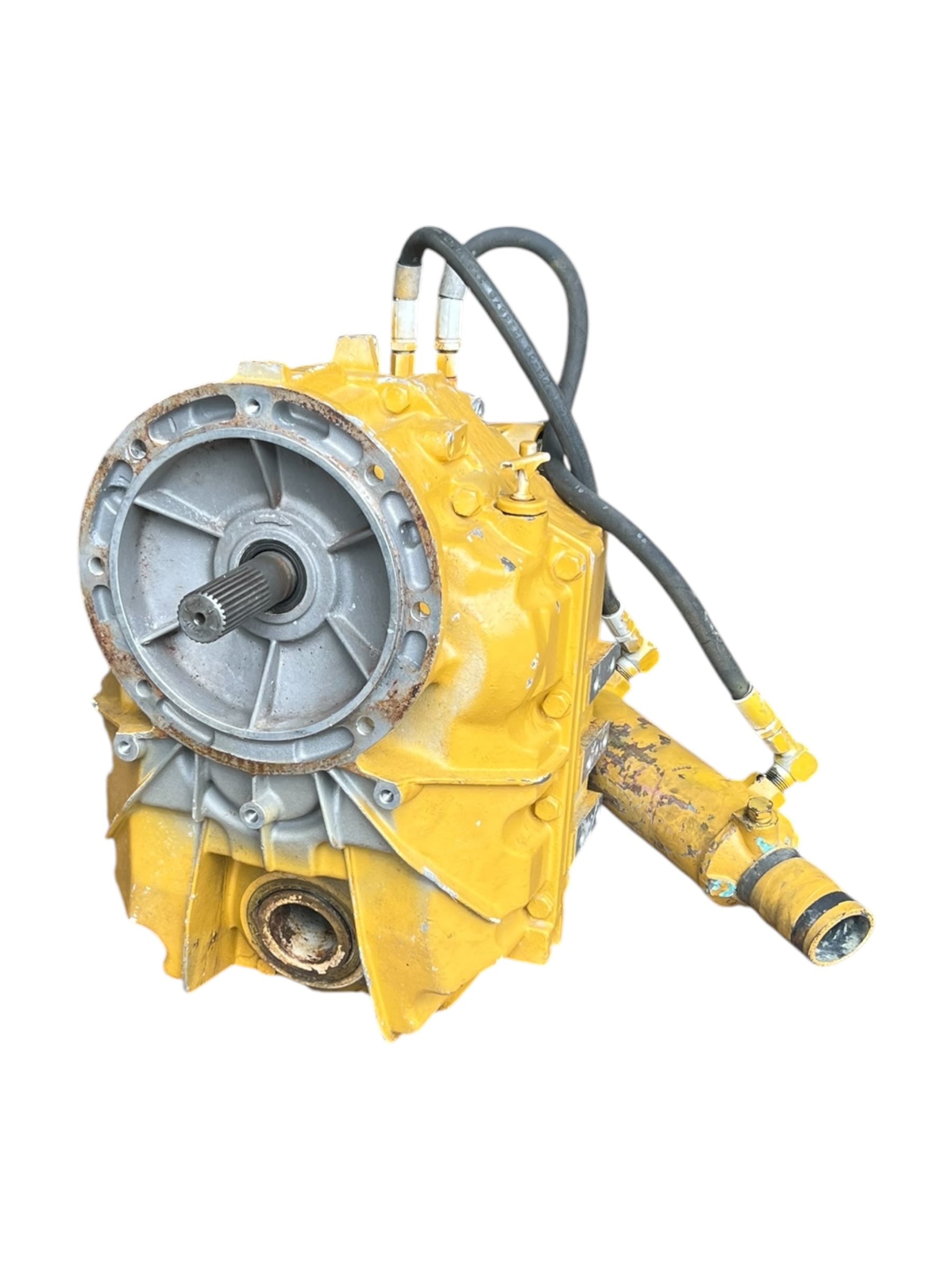

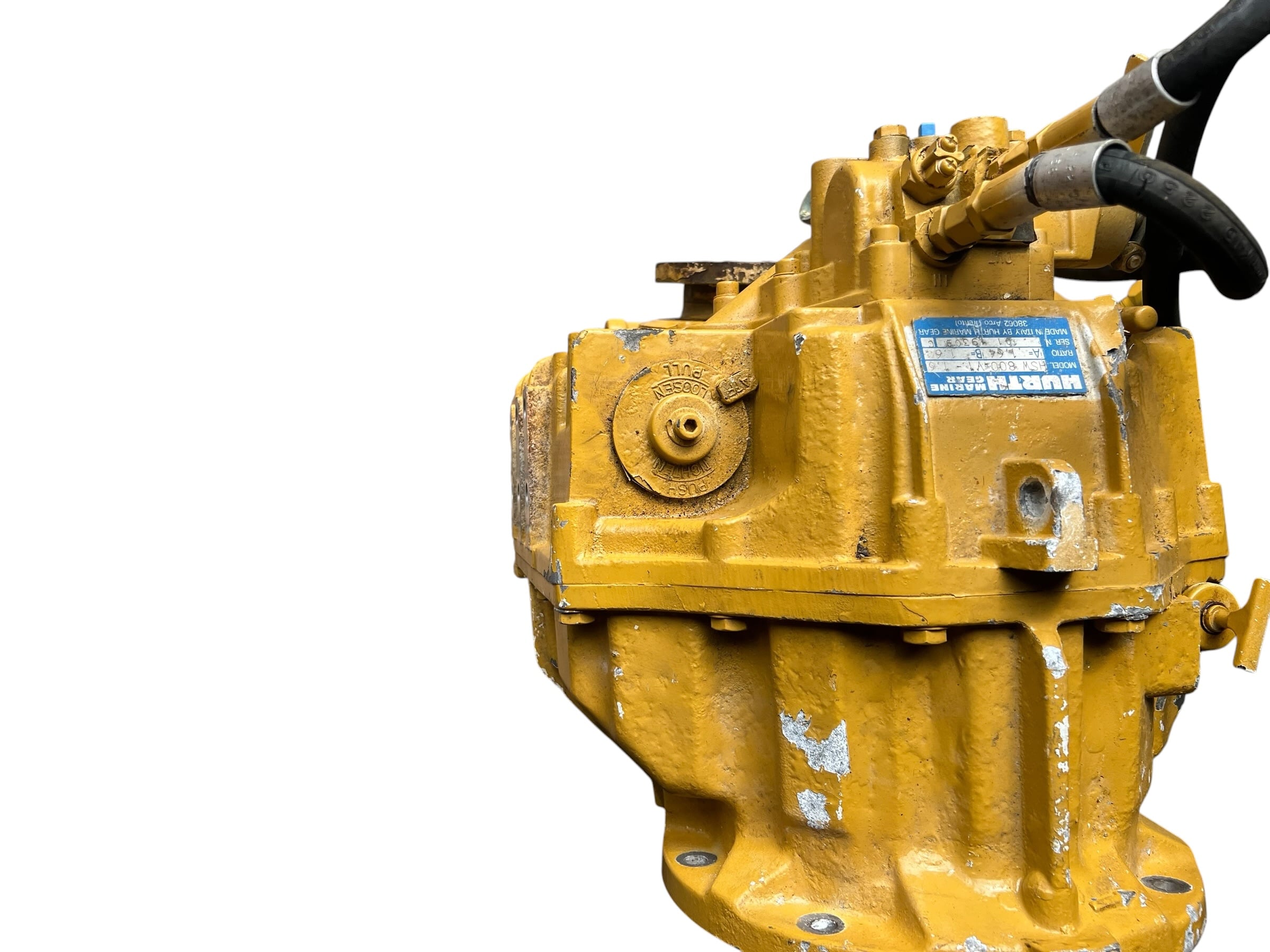

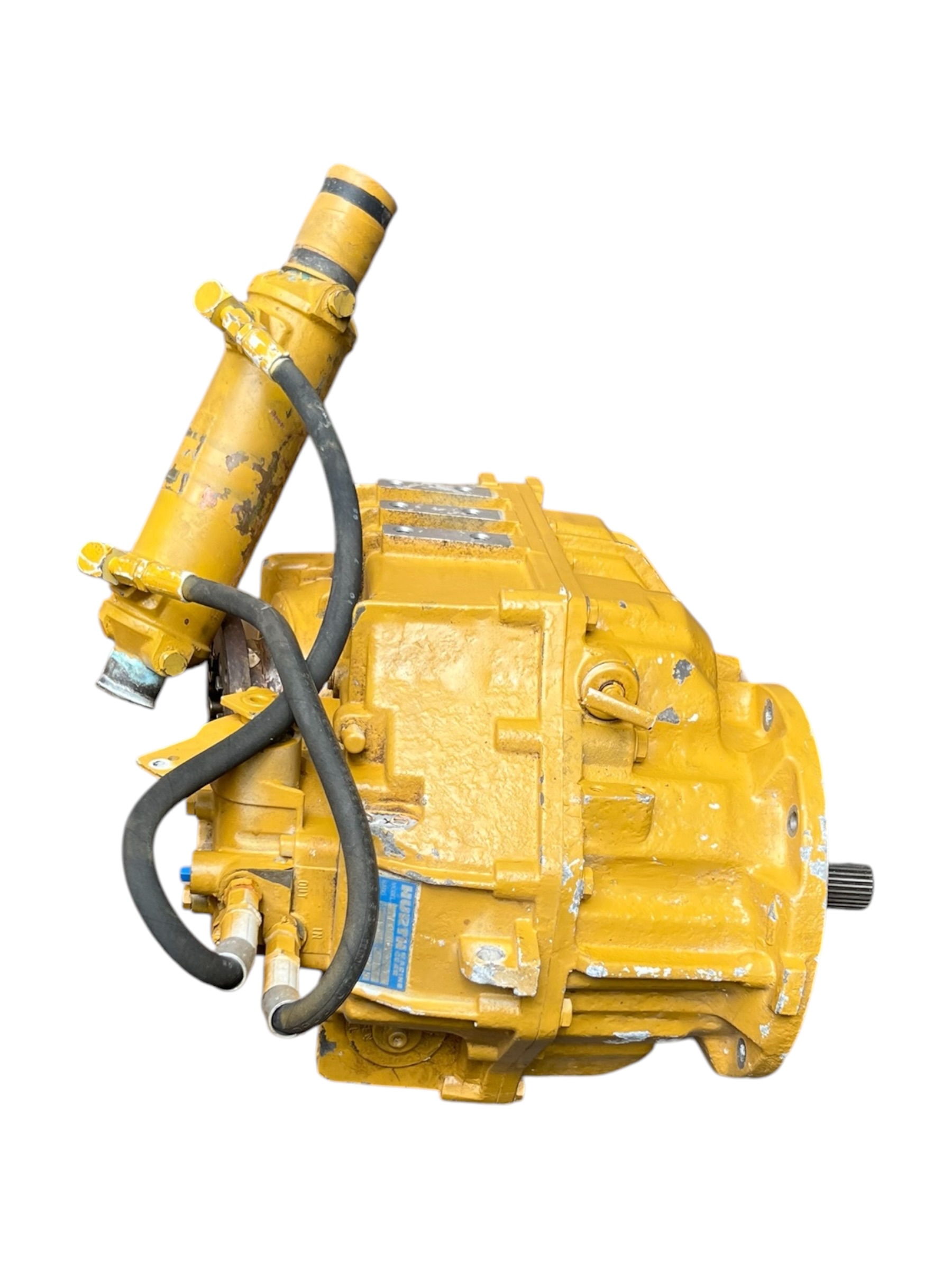

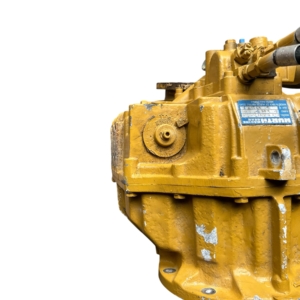

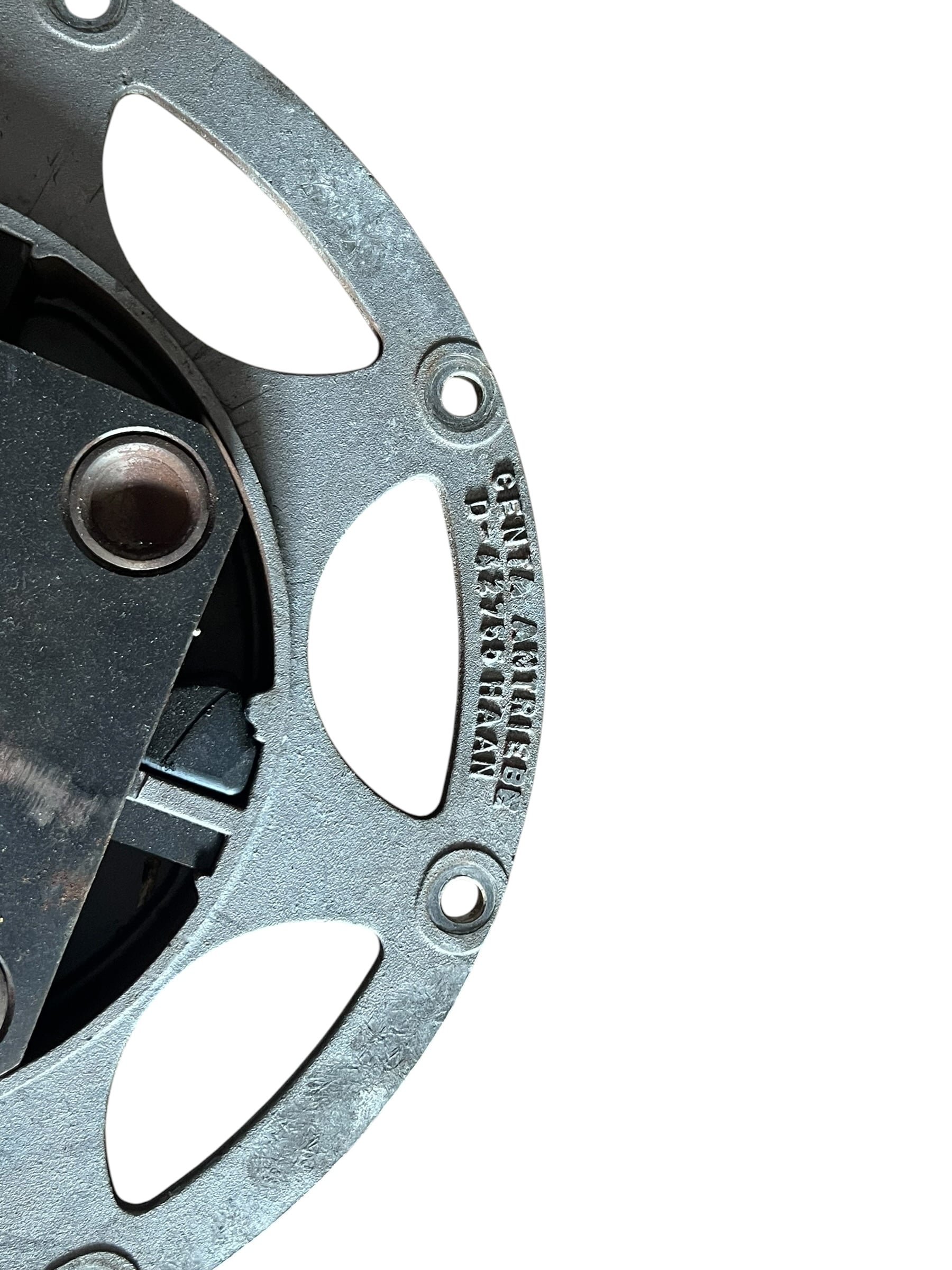

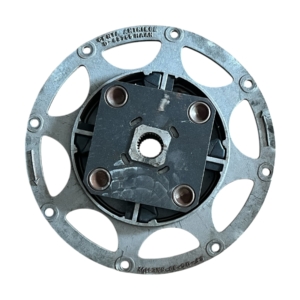

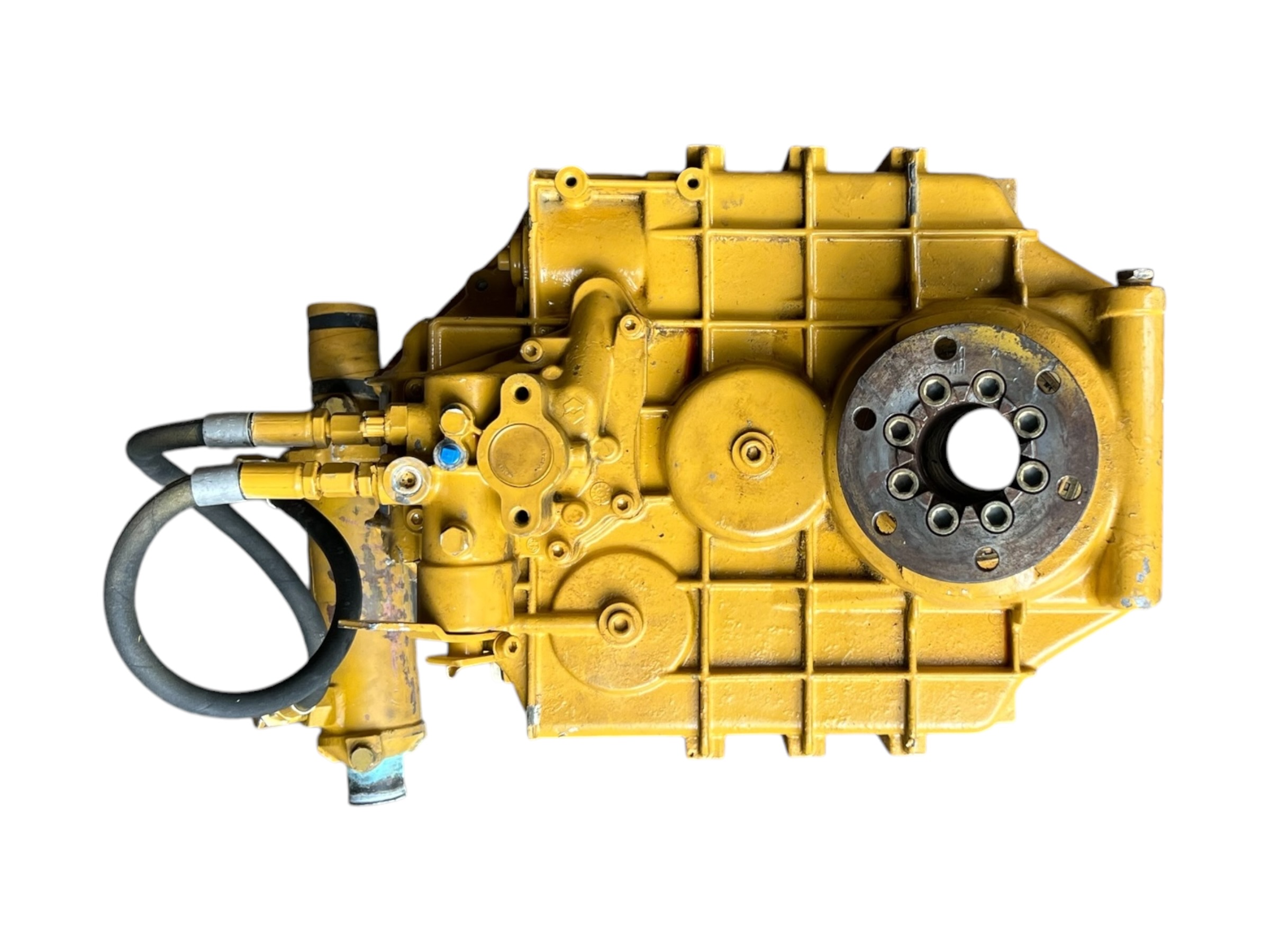

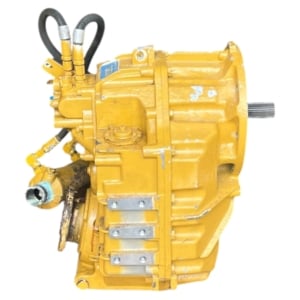

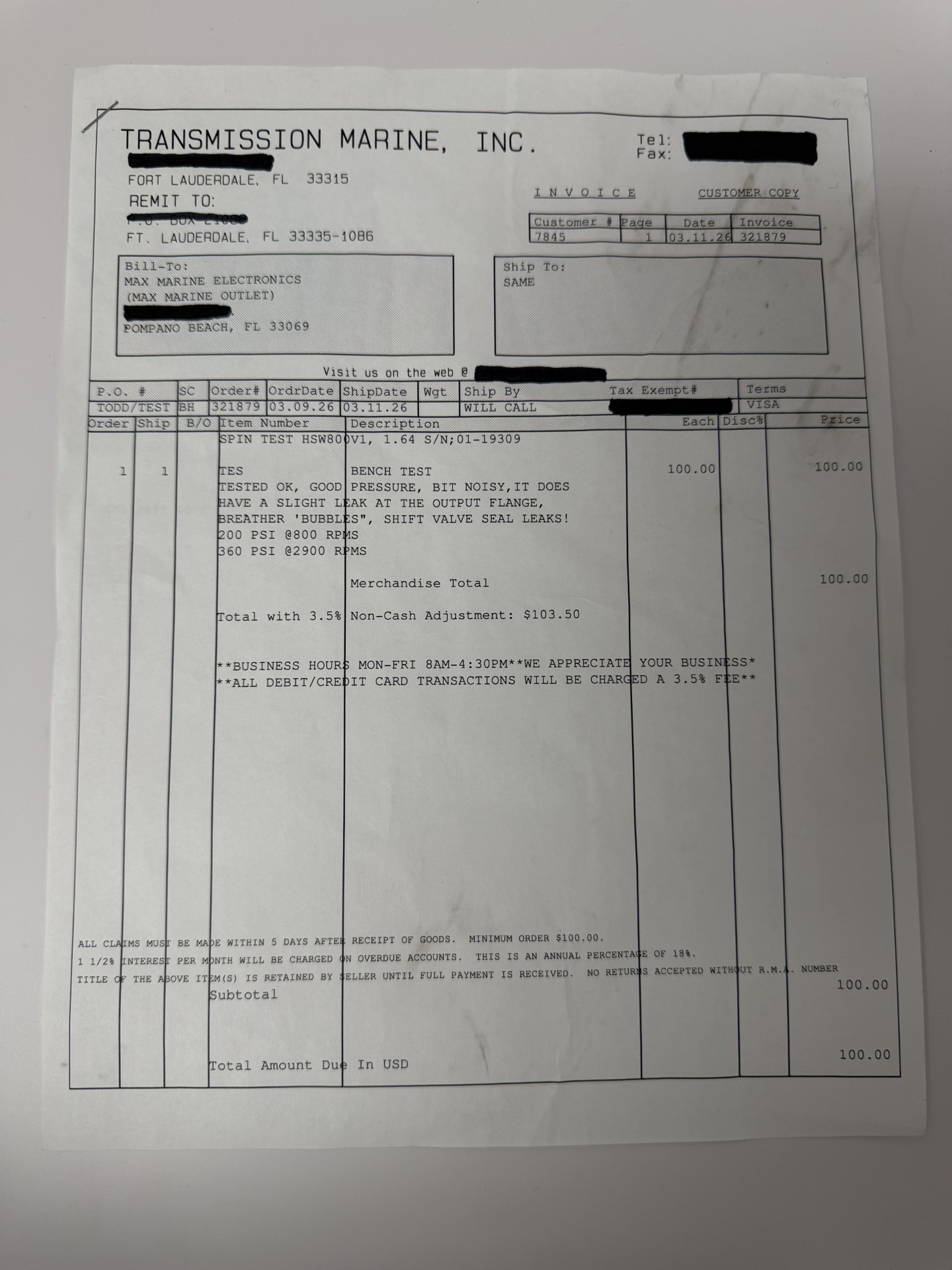

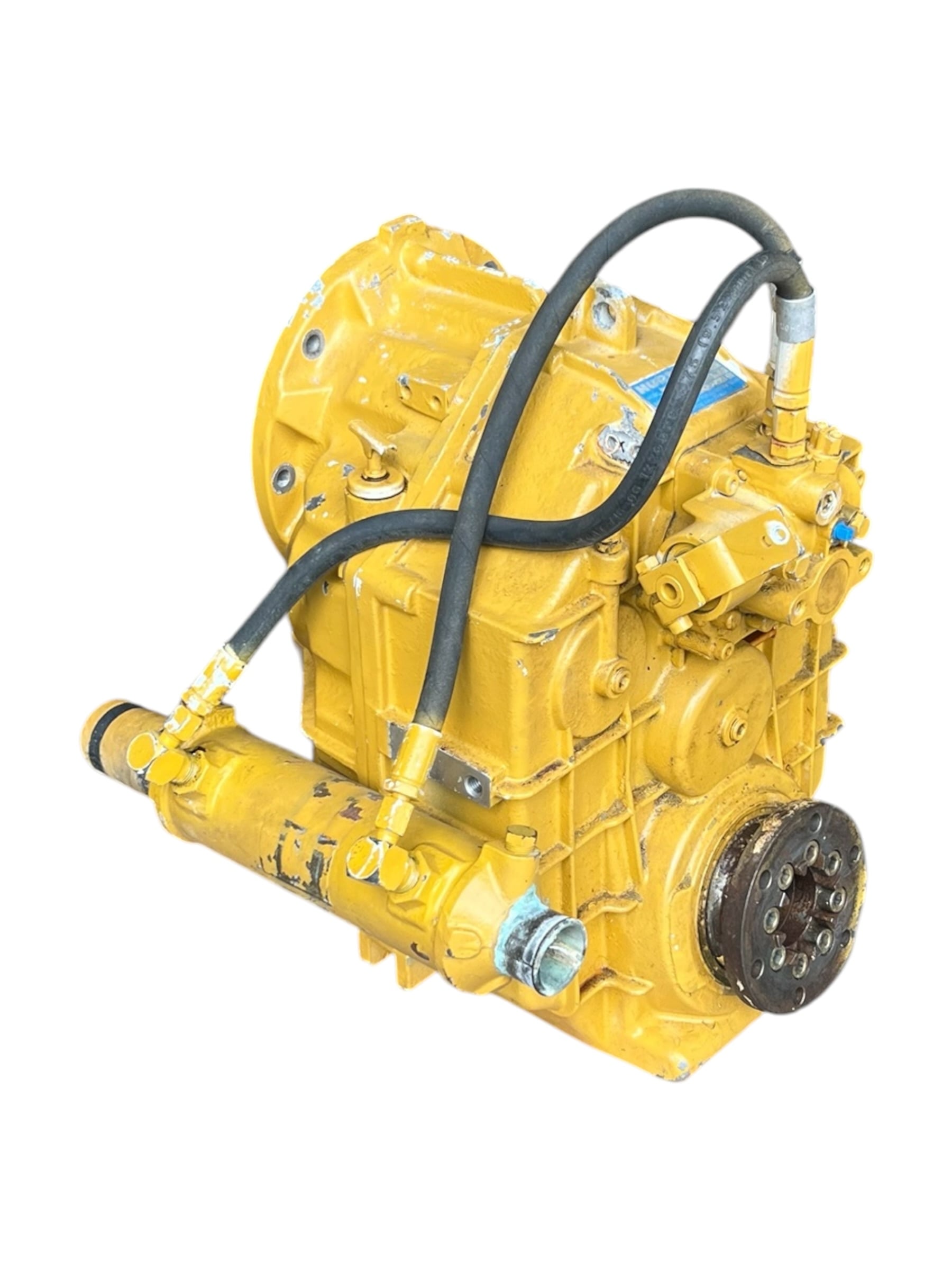

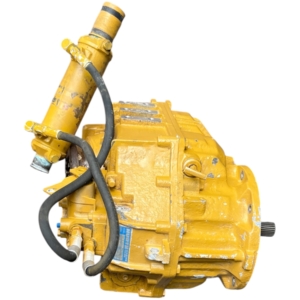

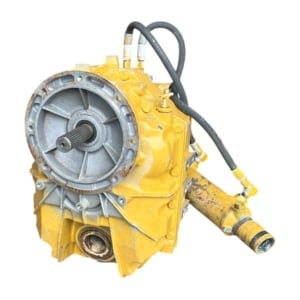

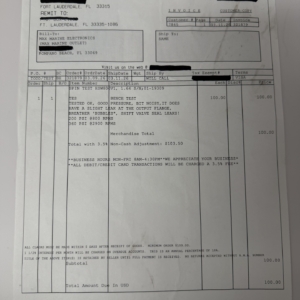

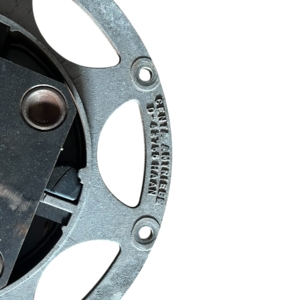

This transmission was removed during repower. The transmission includes a Centa CF-DS-30-SAE 11-1/2" coupling and oil cooler. It has been spin tested by Transmission Marine Inc. in Fort Lauderdale and was reported to be functional with good pressures but has a "slight leak at the output flange, breather bubbles and the shift valve seal leaks" (see attached report). The pressures during testing were 200 PSI @ 800 RPMS and 360 PSI @ 2900 RPMS.
-Gear Ratio: 1.2:1 (with a 12° down angle)
-Max Input Speed: 4,200 RPM
-Dry Weight: 205 lbs. (85.7 kg)
-Oil Capacity: ~7.0 Liters (7.4 US Quarts)
Duty Rating Max Input @ 2,800 RPM / Max Torque
-Pleasure 506 HP / 377 kW 664 ft-lbs. (900 Nm)
-Medium398 HP / 297 kW524 ft-lbs. (710 Nm)
-Continuous354 HP / 264 kW417 ft-lbs. (566 Nm)
