We recently acquired a large inventory of overstock items. These items are new and remain in the manufacturer's original packaging but may have minor cosmetic blemishes from storage (See Photos).

This item originally came as part of a Lewmar windlass kit, part number 68001043, which includes the motor and gearbox assembly with the contactor. Unfortunately, the contactor was not included with the inventory we received. Therefore, this listing is for the motor and gearbox assembly only. The motor and gearbox assembly is new and remains in the manufacturer's original packaging.

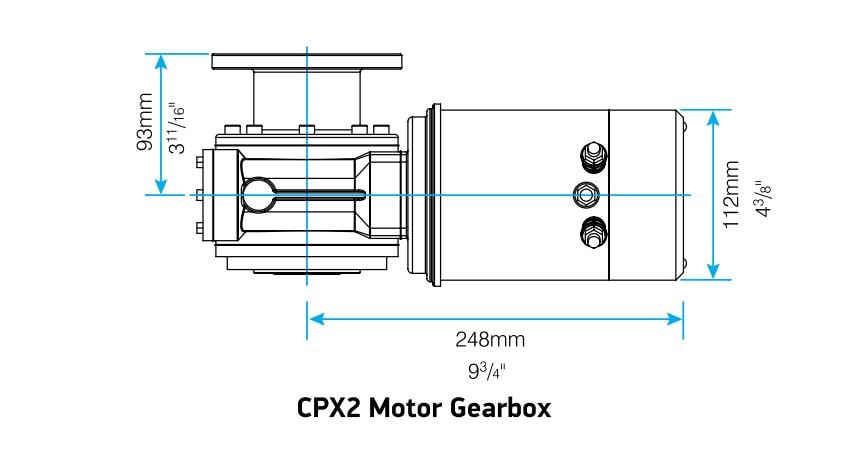

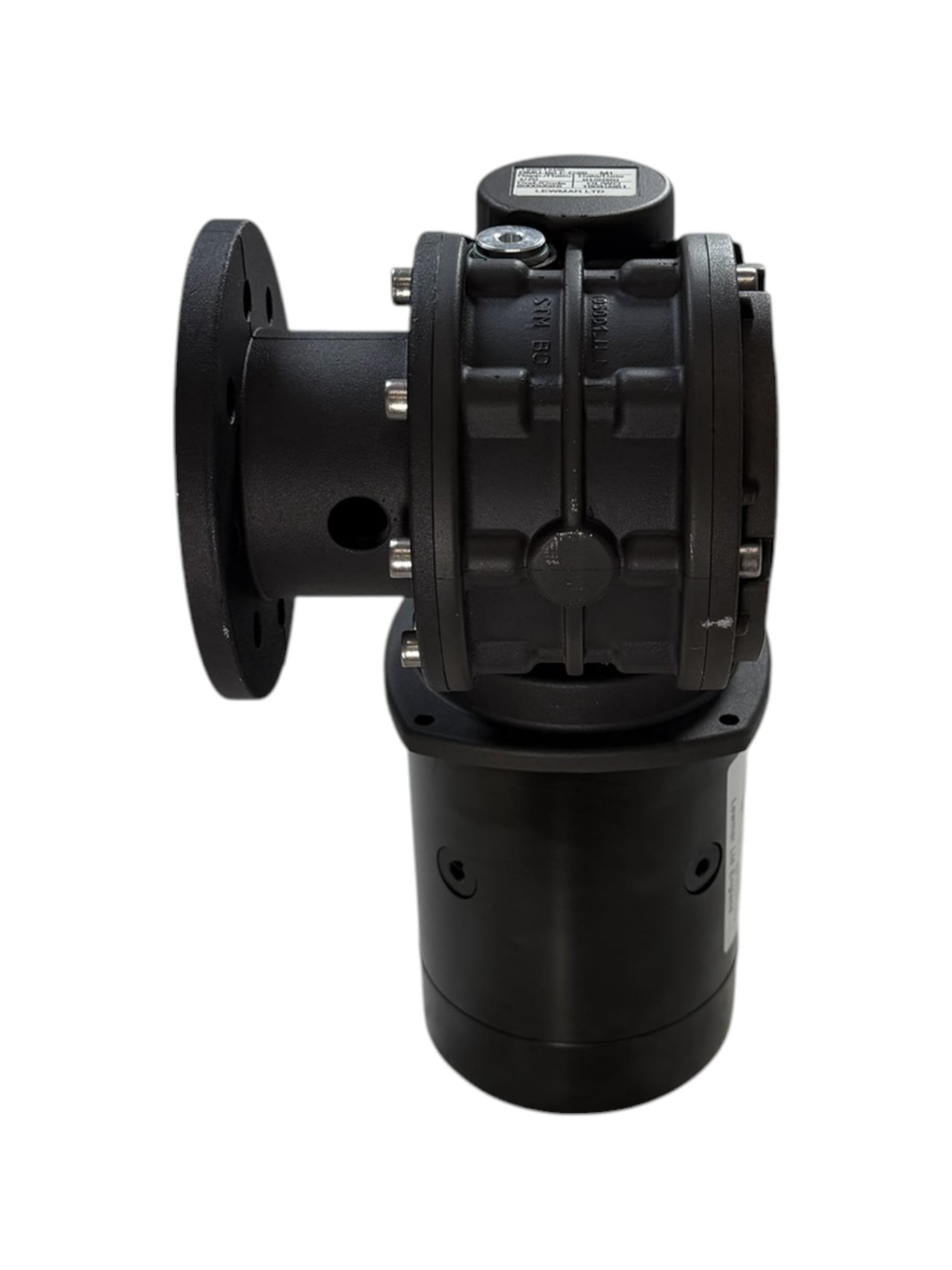

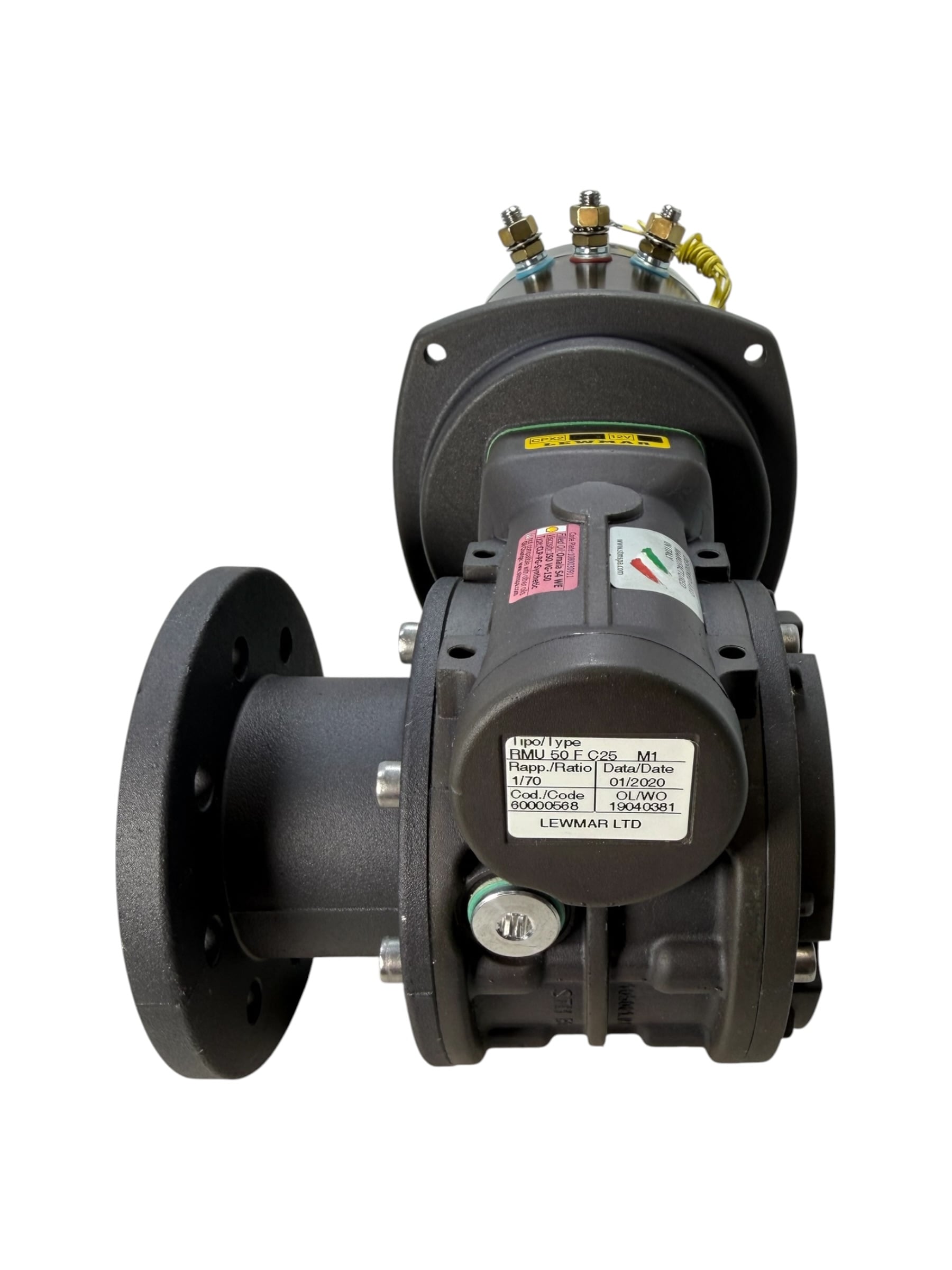

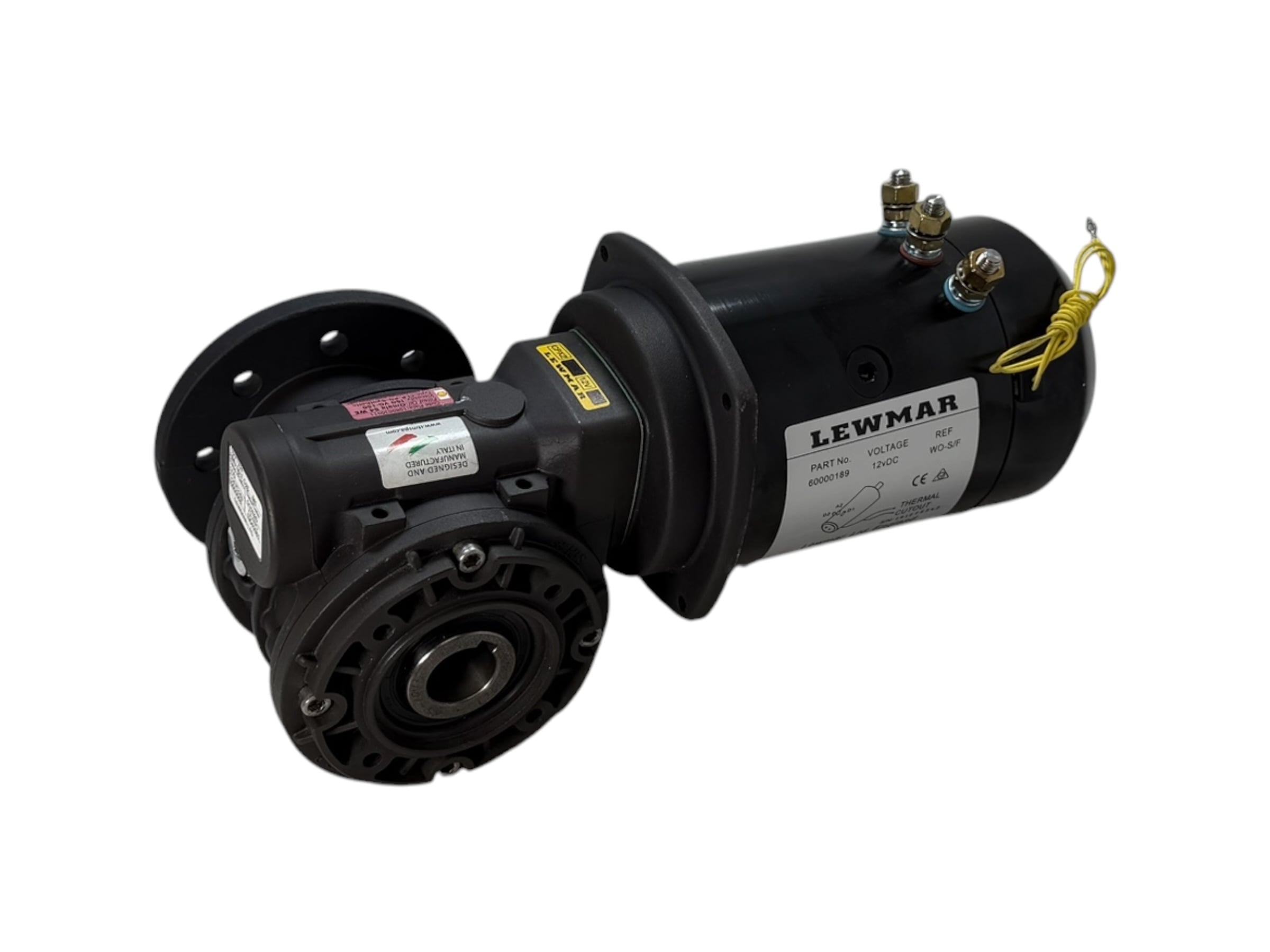

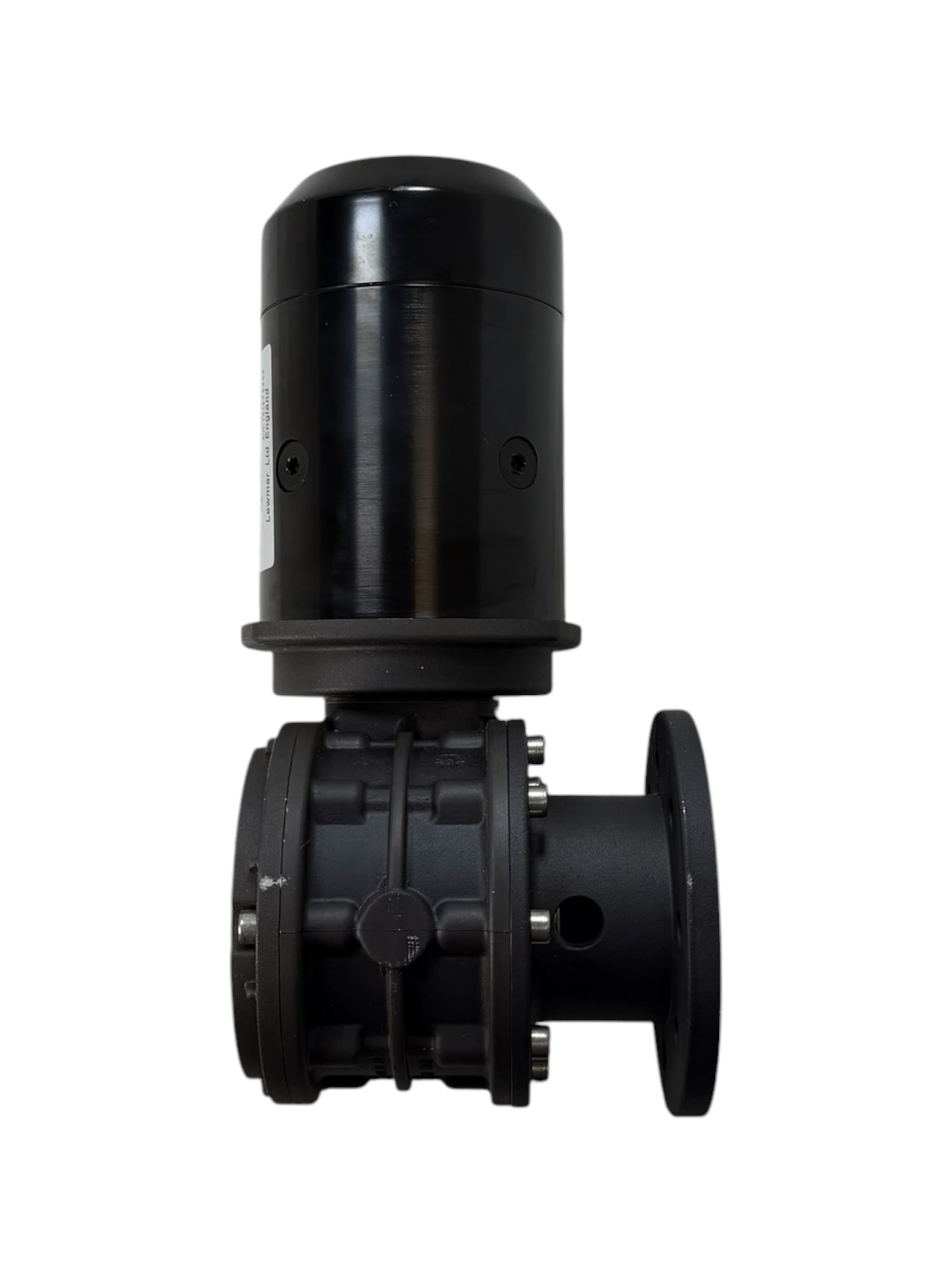

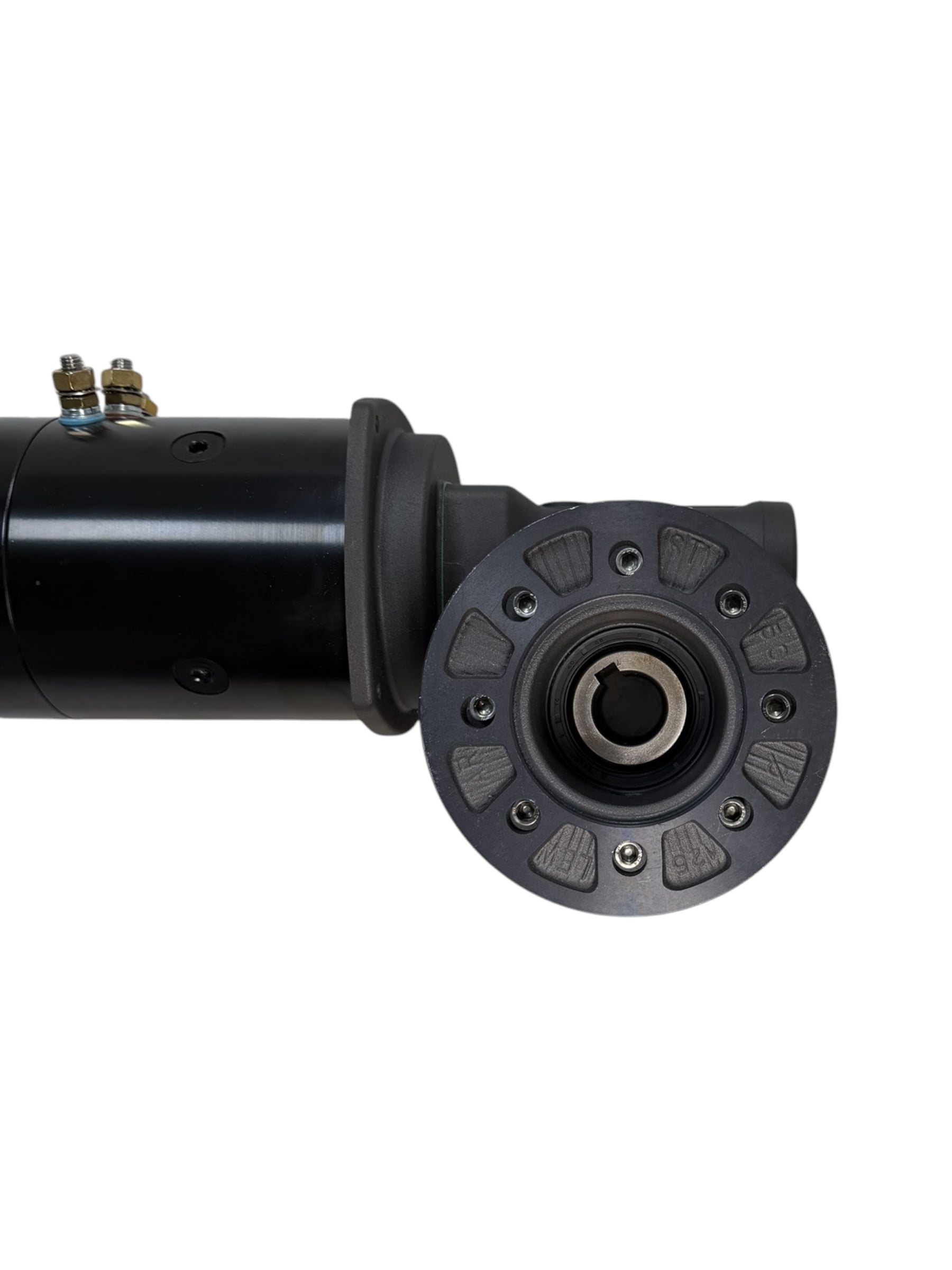

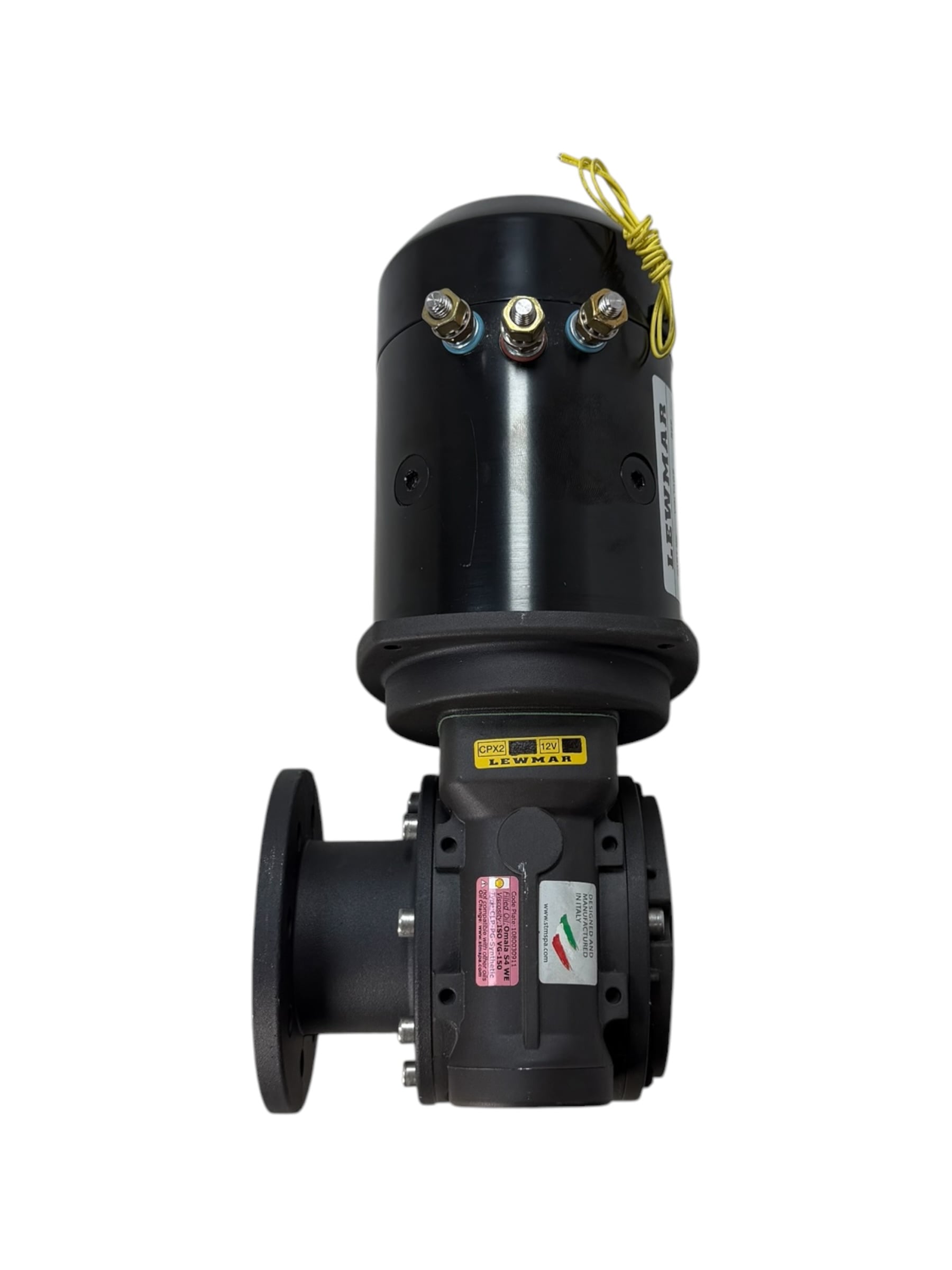

Component Type: Integrated Motor & Gearbox Assembly

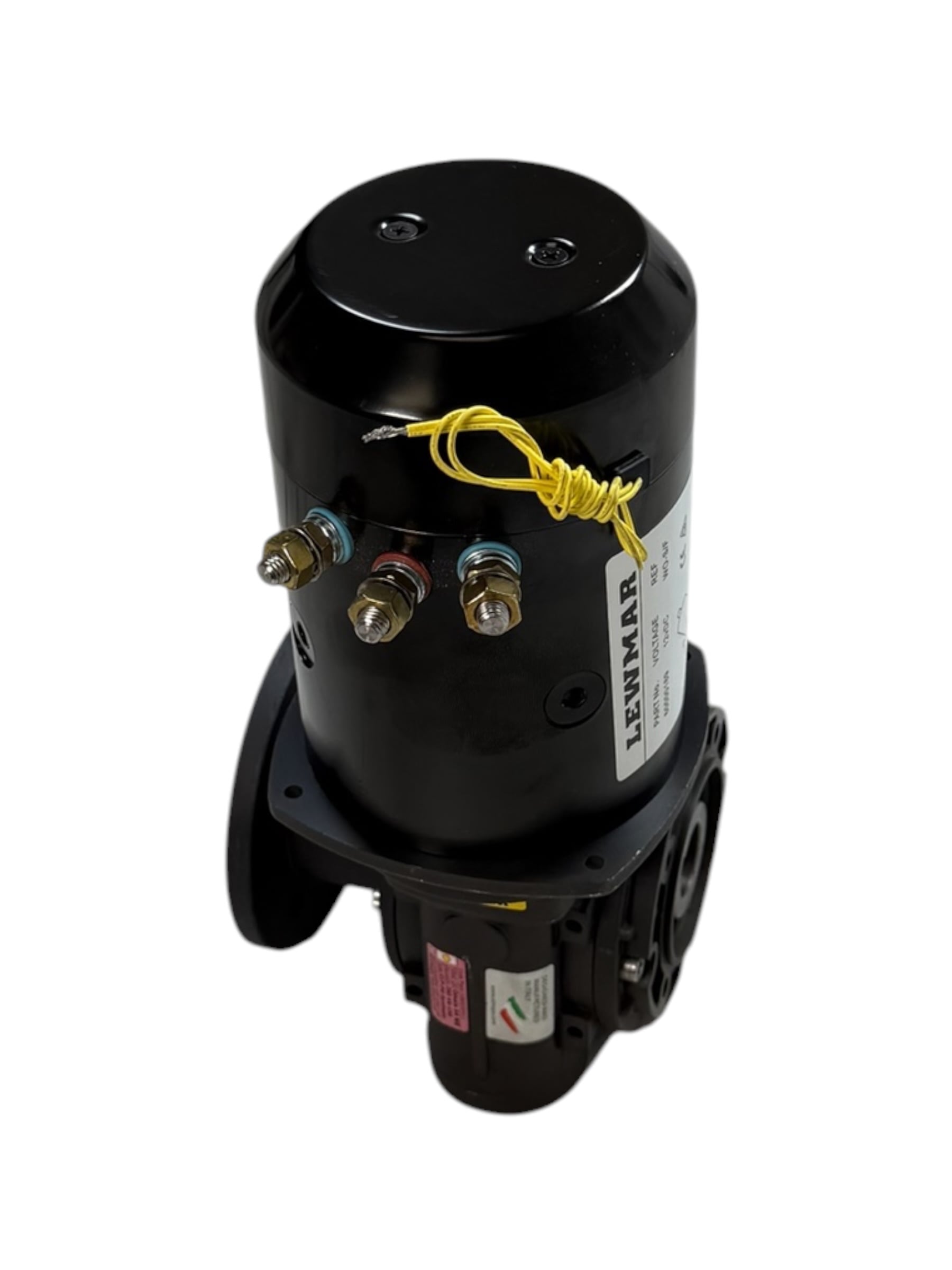

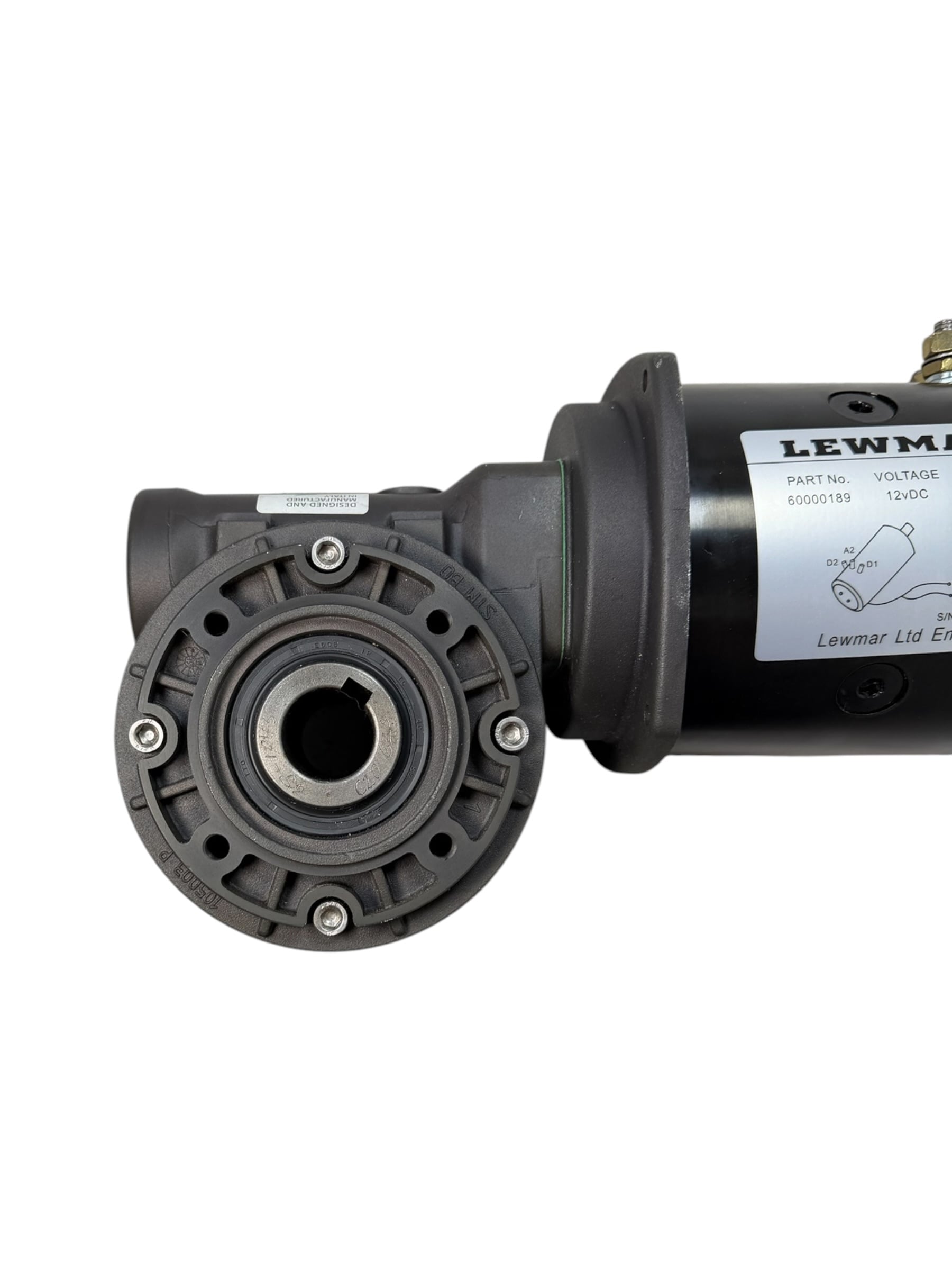

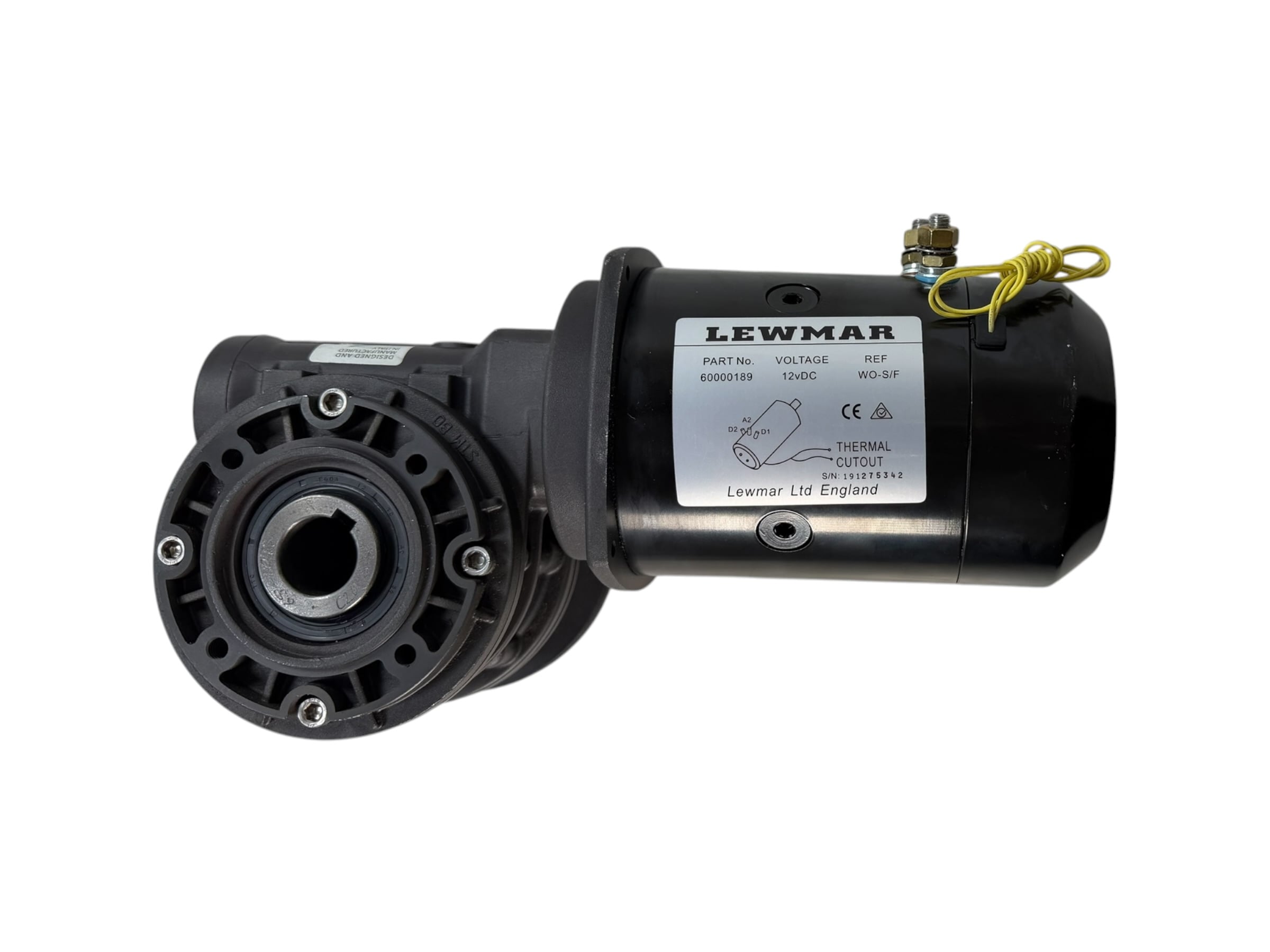

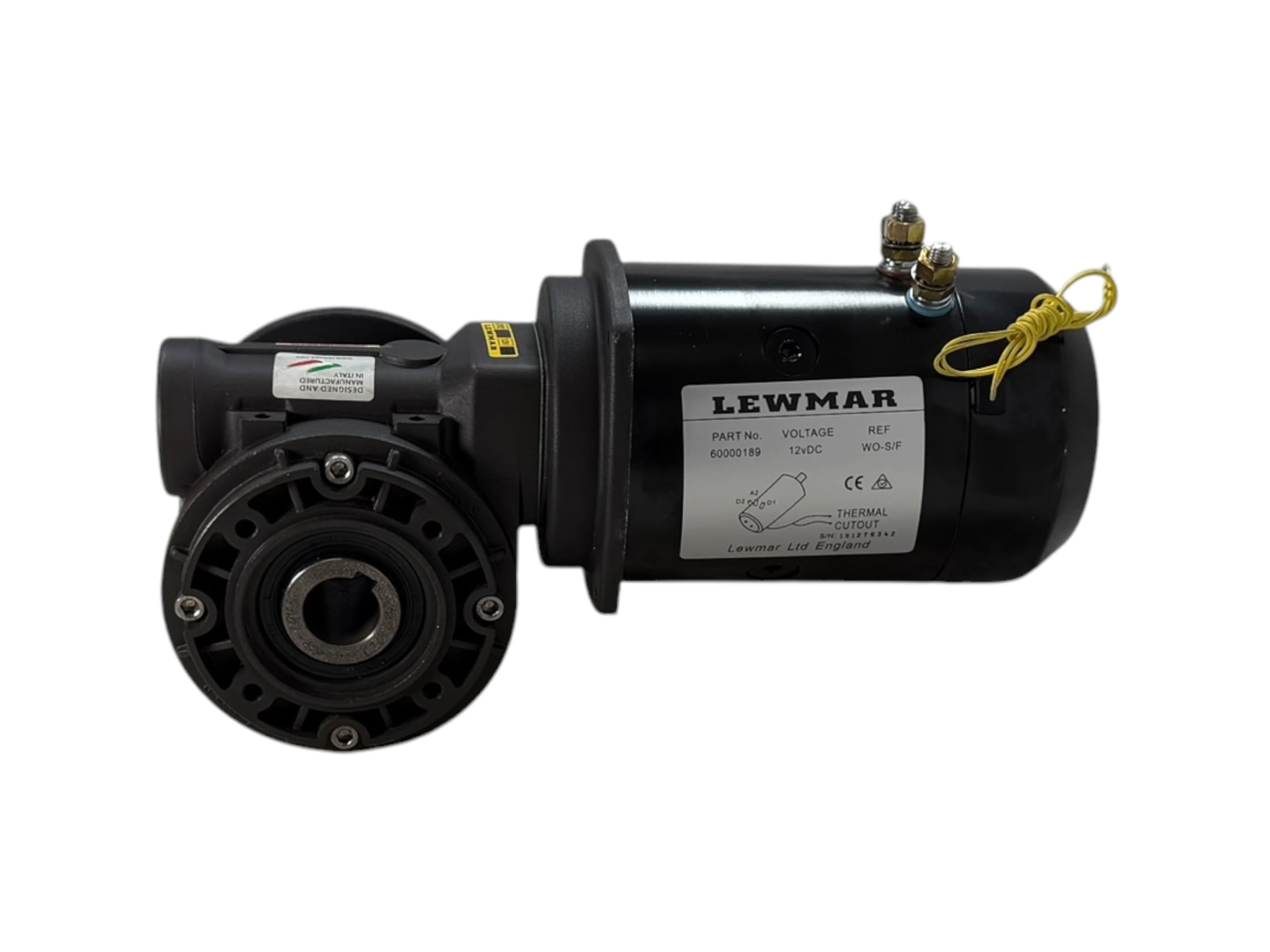

Motor Part Number: 60000189 (12V 700W Split Field Motor)

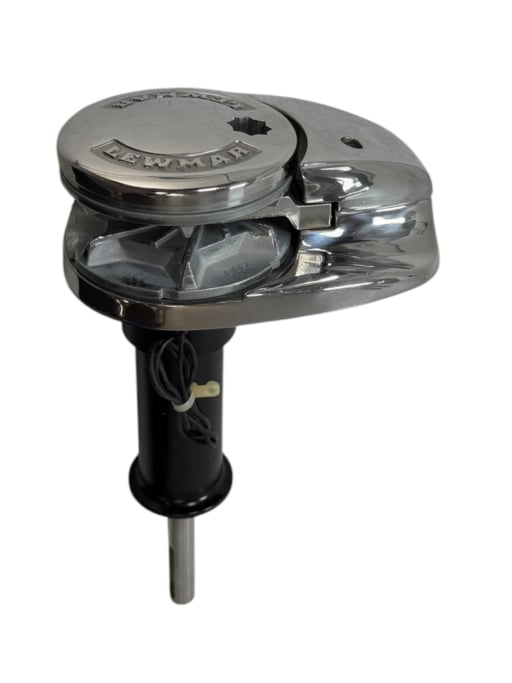

Windlass Compatibility: Fits Lewmar V2 and CPX2 vertical series windlasses
Application: Marine anchor vertical windlass systems
Technical & Performance Specifications
Voltage: 12V DC
Power Rating: 700 Watts

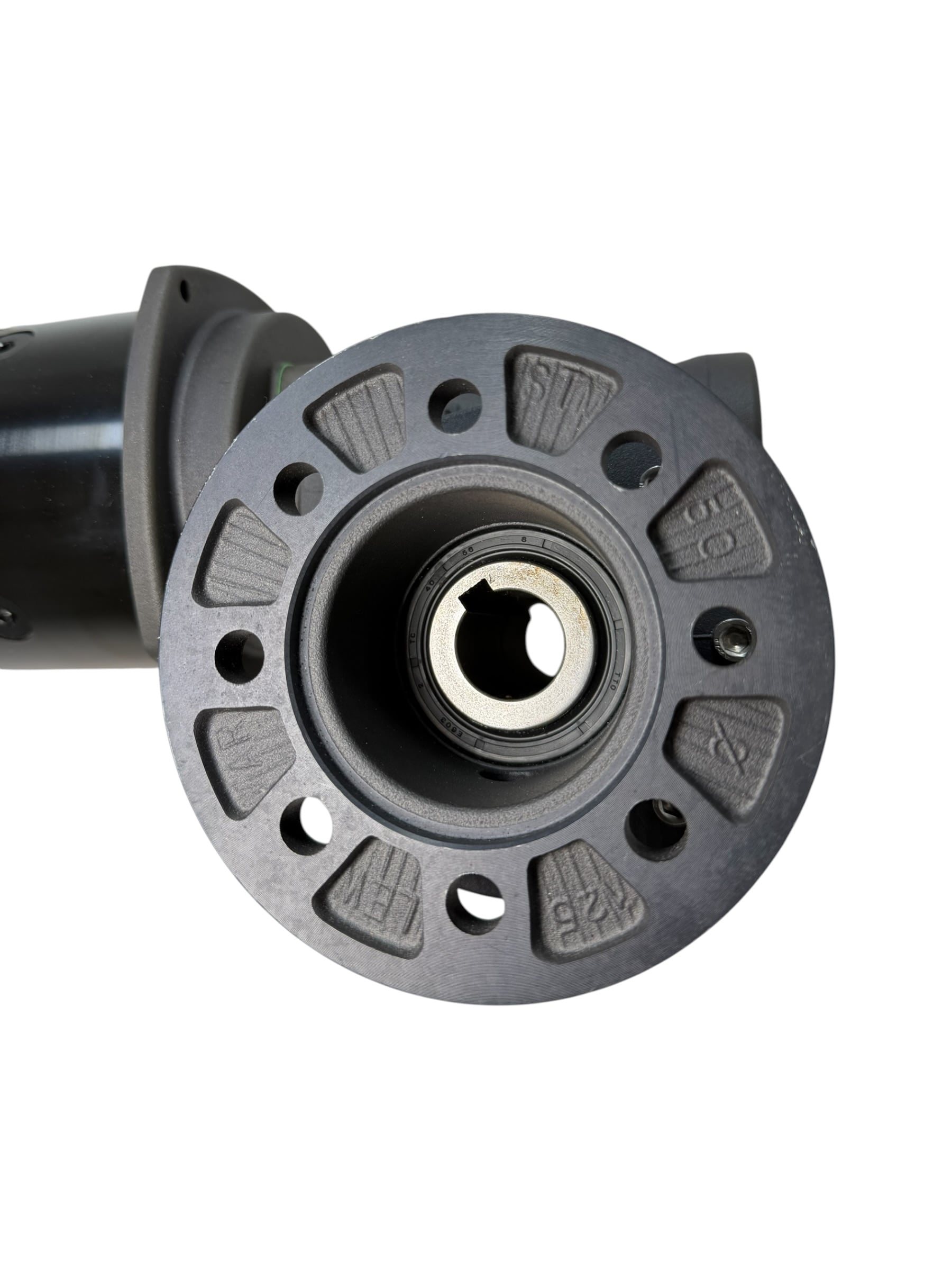

Gearbox Type: Heavy-duty worm-wheel reduction drive
Normal Electrical Draw: 80 Amps
Recommended Circuit Breaker: 90 Amp
Maximum Pulling Power: 1,433 lbs (650 kg)
Working Load Limit: 359 lbs (163 kg)
Maximum Line Speed: 68.9 ft/min (21 m/min)
Vessel Match: Suitable for boats ranging from 30 ft to 50 ft
Minimum Deck Thickness Required: 1.5" (40 mm) to support gearbox torque
Minimum Anchor Locker Fall Clearance: 12" (304 mm) vertical drop required below the motor mounting position

All items sold at Max Marine Outlet come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to reach out. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
