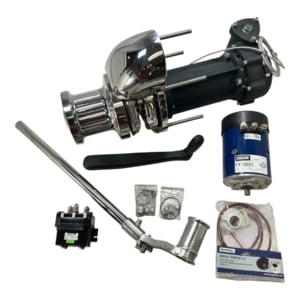

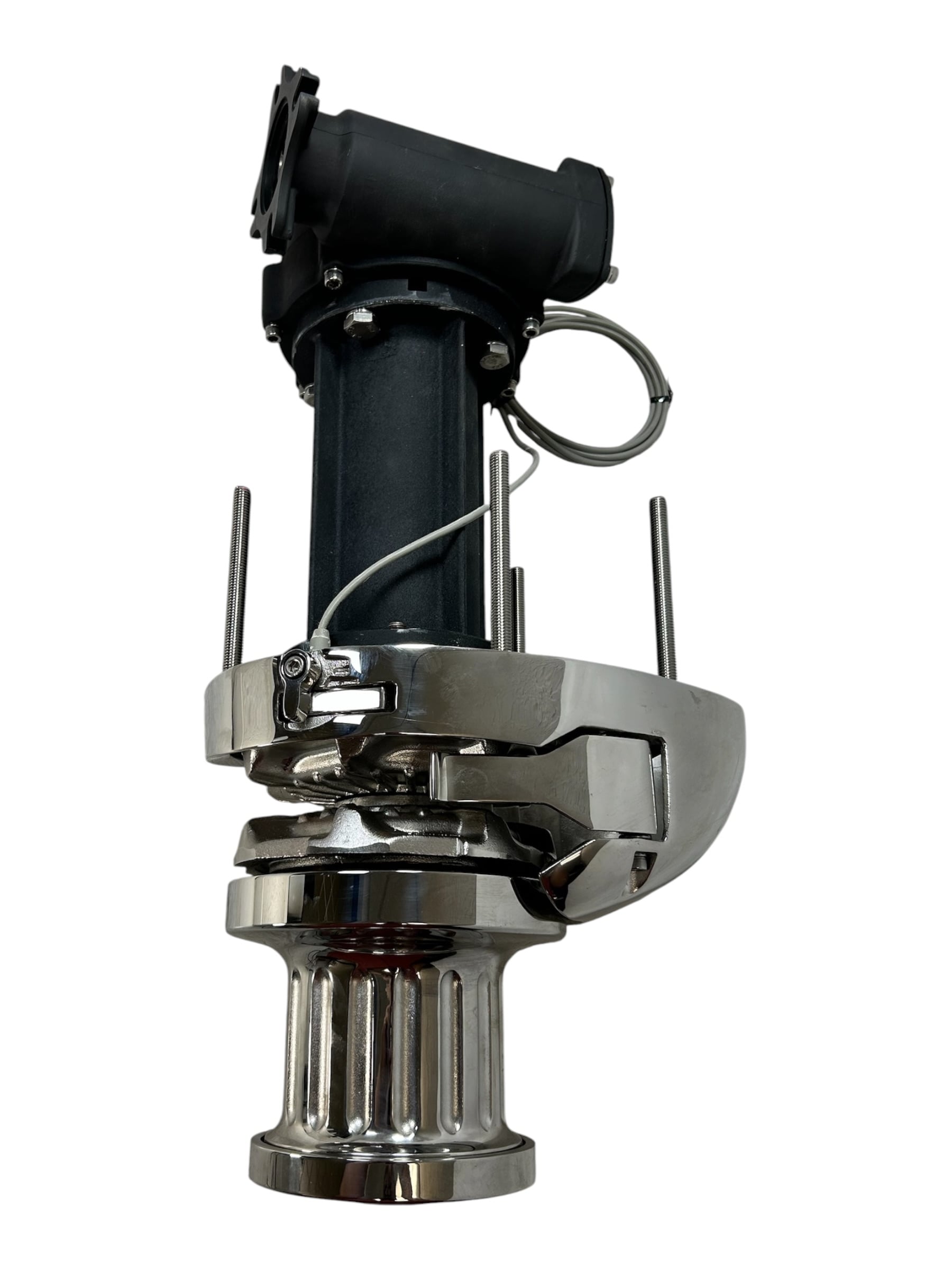

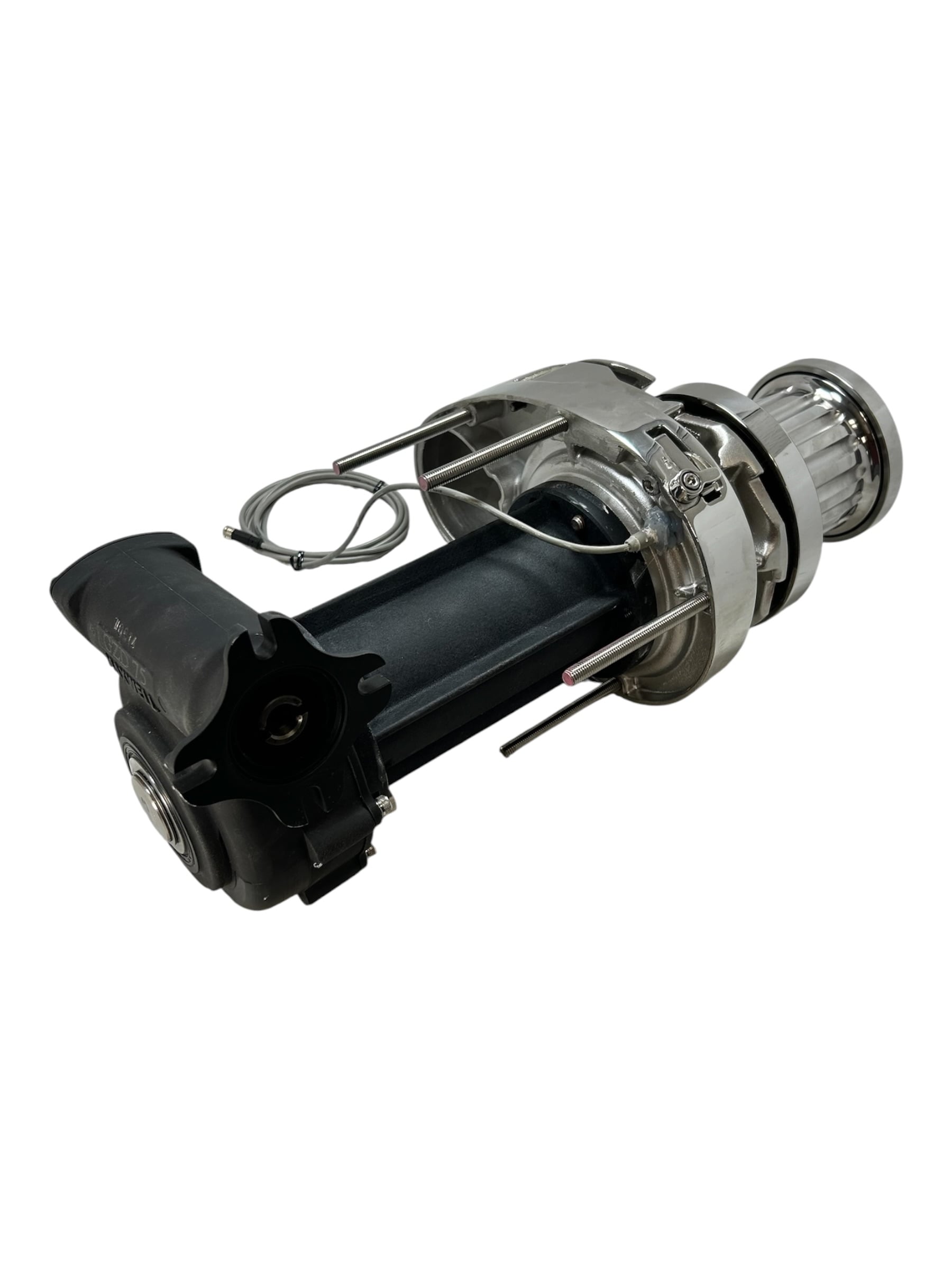

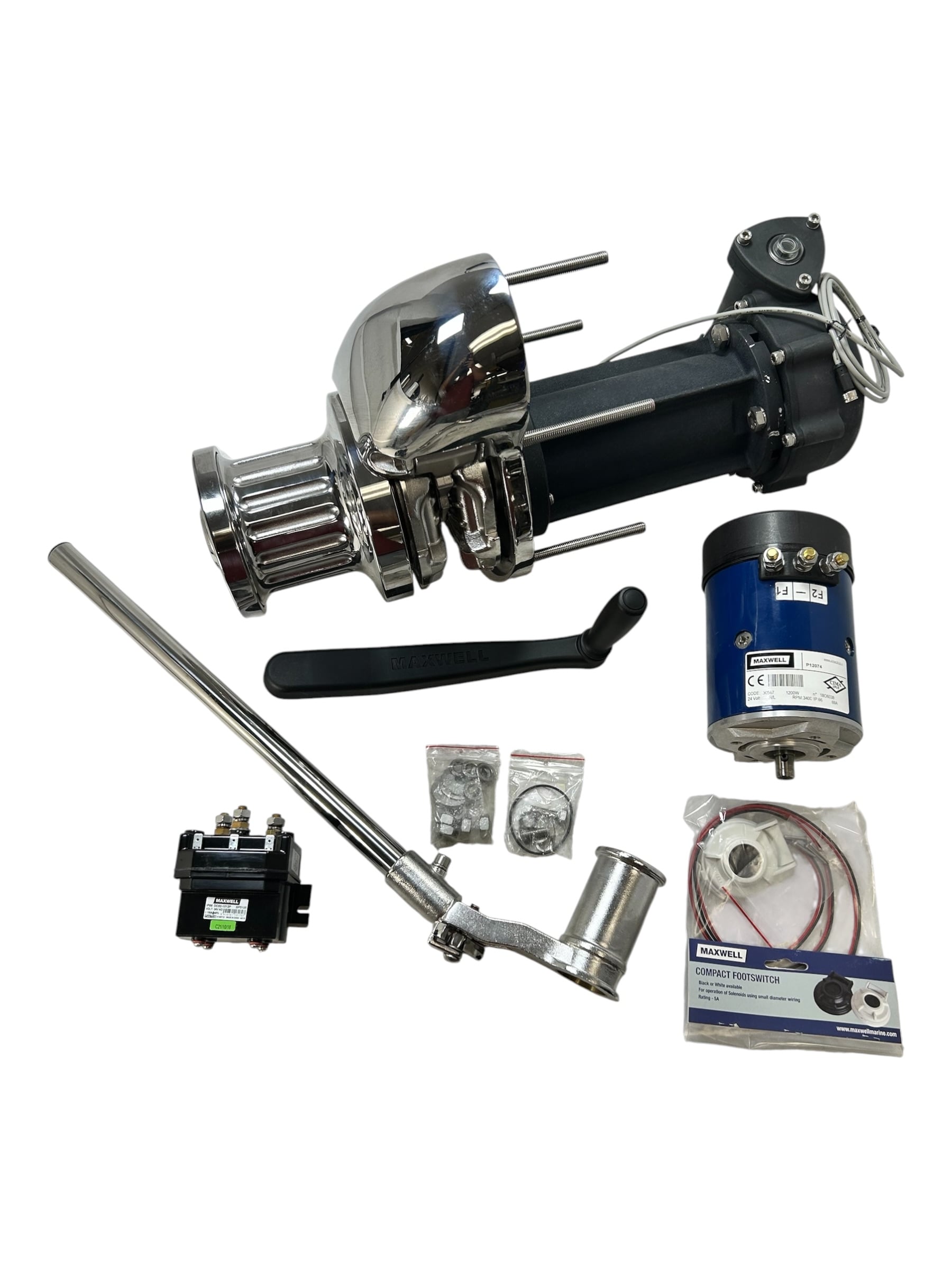

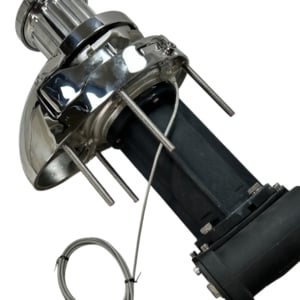

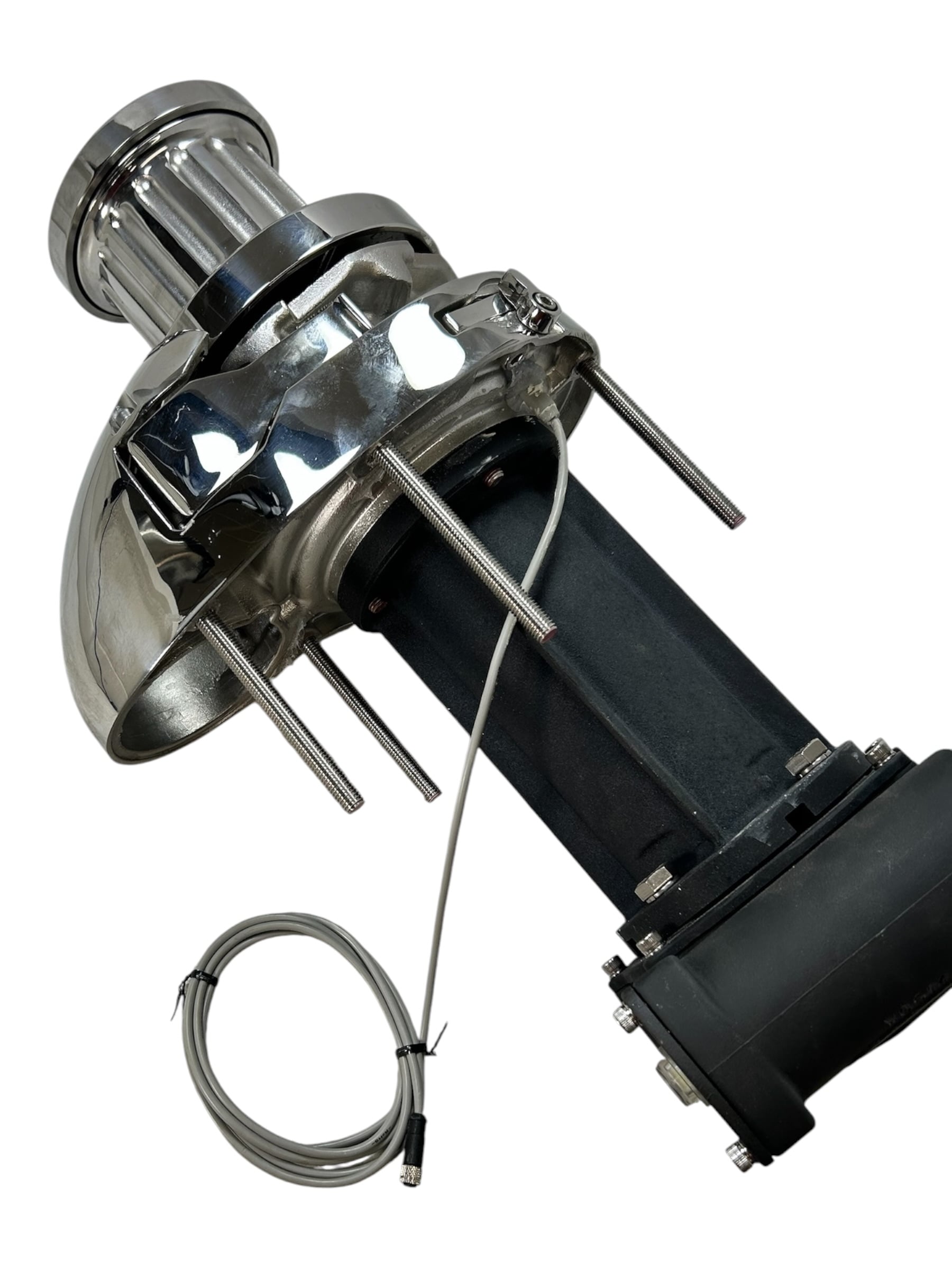

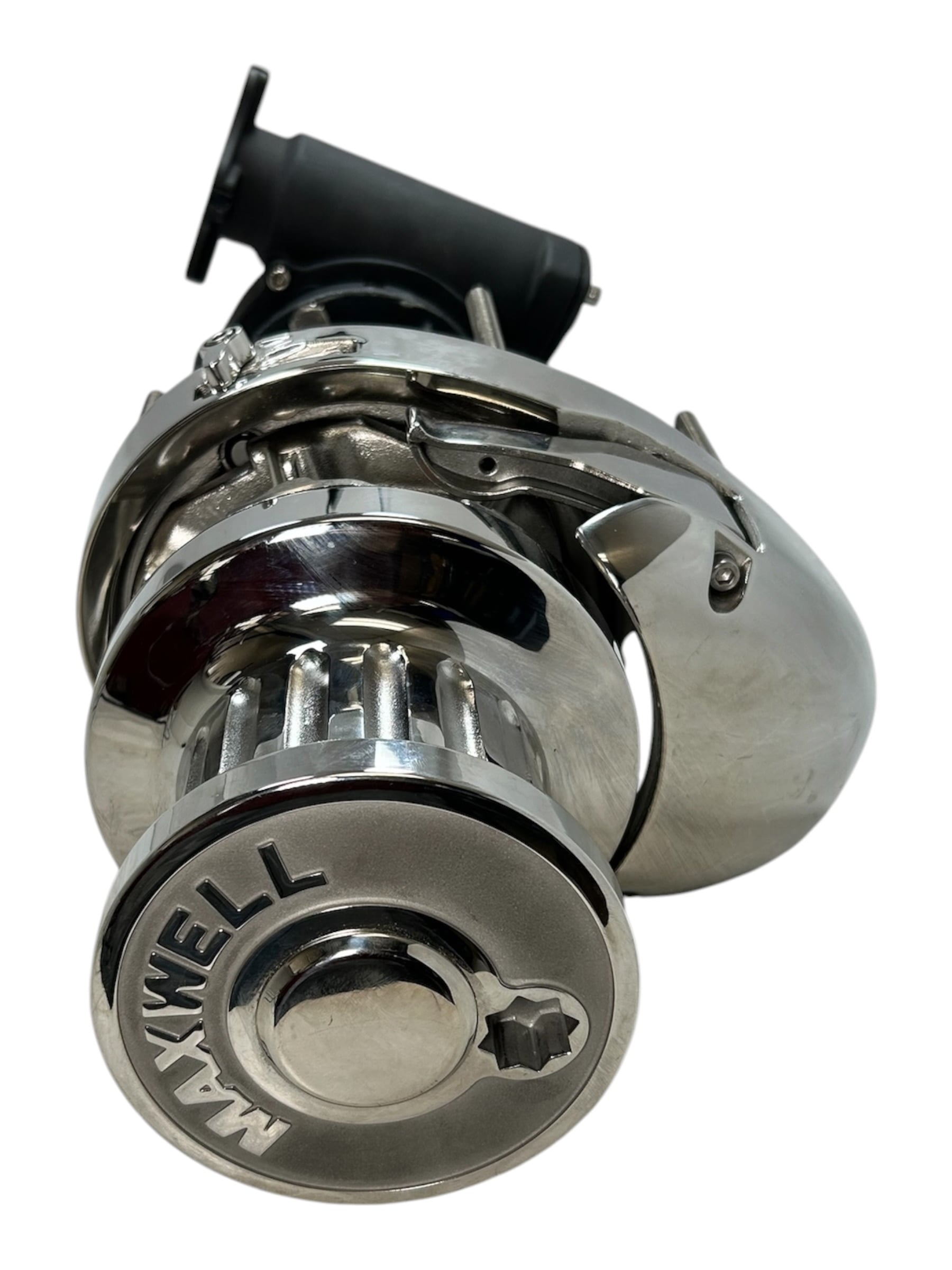

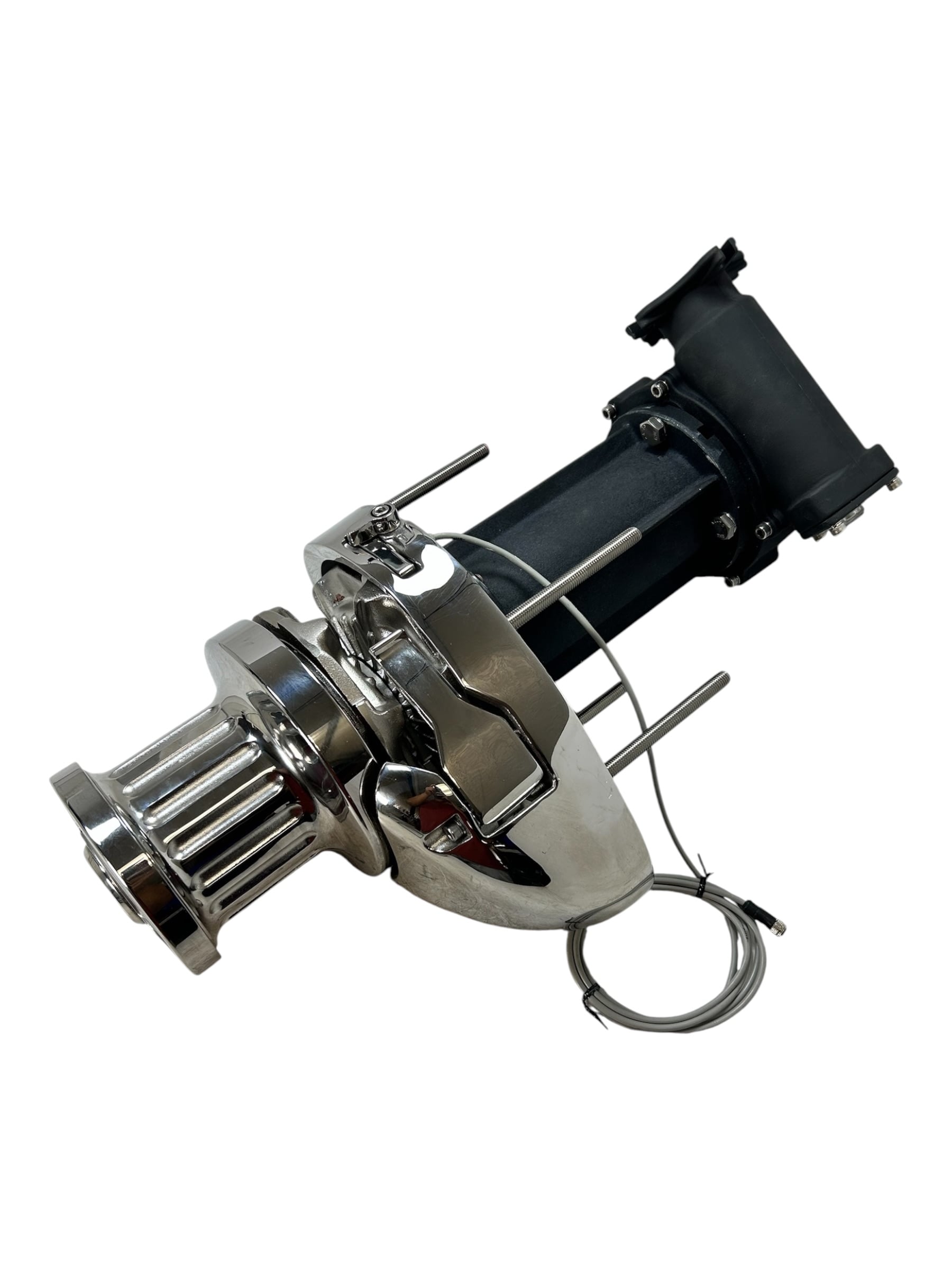

The Maxwell RC12-10 is a heavy-duty vertical automatic rope/chain anchor windlass designed for marine applications. It is used to deploy and retrieve a boat's anchor and anchor rode, making anchoring easier and more convenient.

The RC12-10 is designed for 24V 10/11 mm (3/8") short-link anchor chain and 16–20 mm (5/8"–3/4") nylon rope. It features marine-grade stainless-steel components and Maxwell's Wave Design chainwheel for reliable rope and chain handling.

SPECIFICATIONS

• Model: Maxwell RC12-10
• Type: Vertical Automatic Rope/Chain Windlass
• Chain Size: 10/11 mm (3/8") short-link chain
• Rope Size: 16–20 mm (5/8"–3/4") nylon rope
• Maximum Pull: 2,500 lb (1,134 kg)
• Static Holding Load: 4,840 lb (2,200 kg)
• Chain Retrieval Speed: 79 ft/min (24 m/min)
• Rope Retrieval Speed: 65 ft/min (20 m/min)

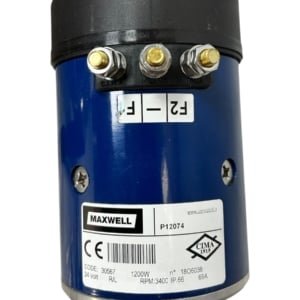

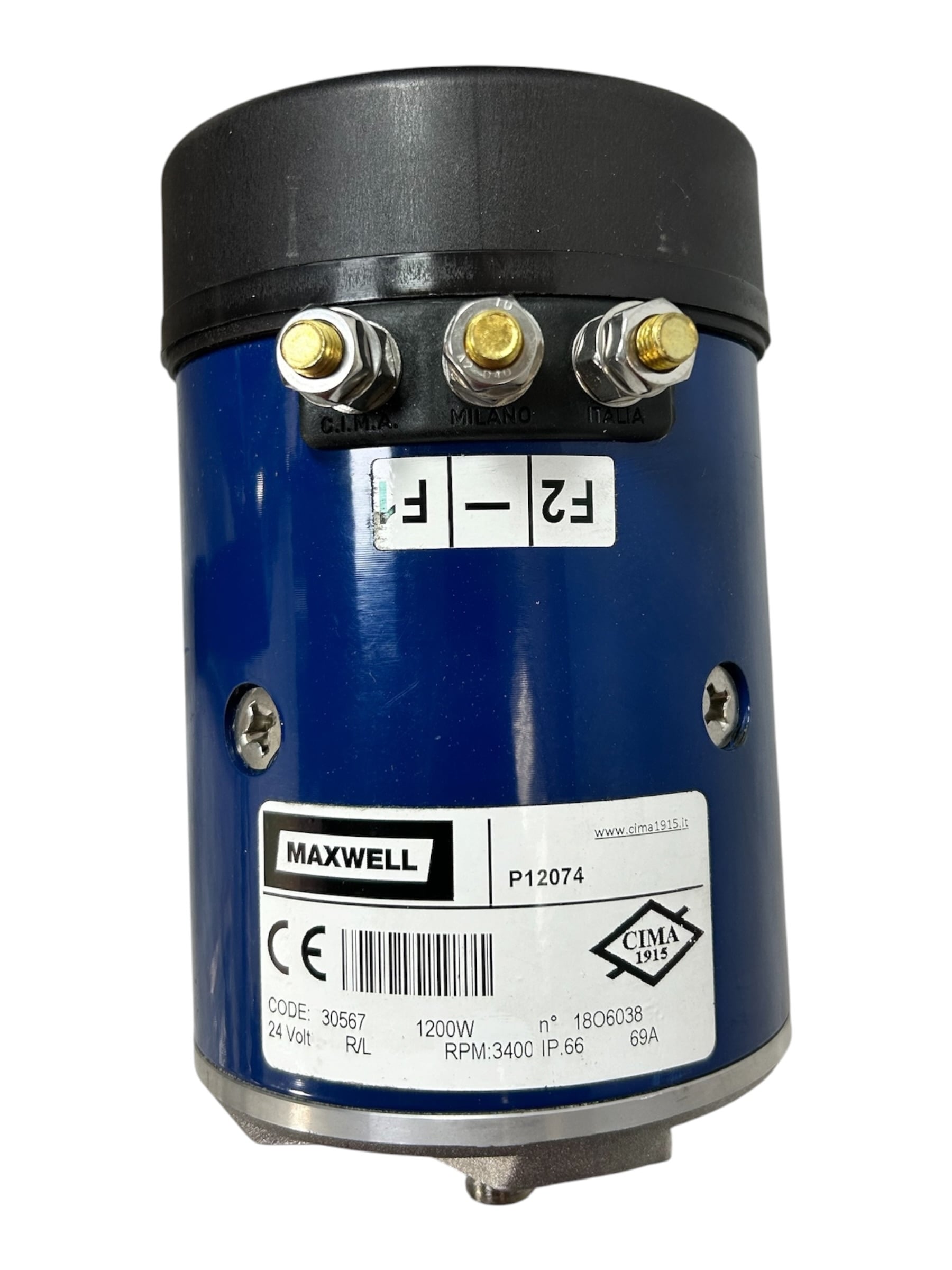

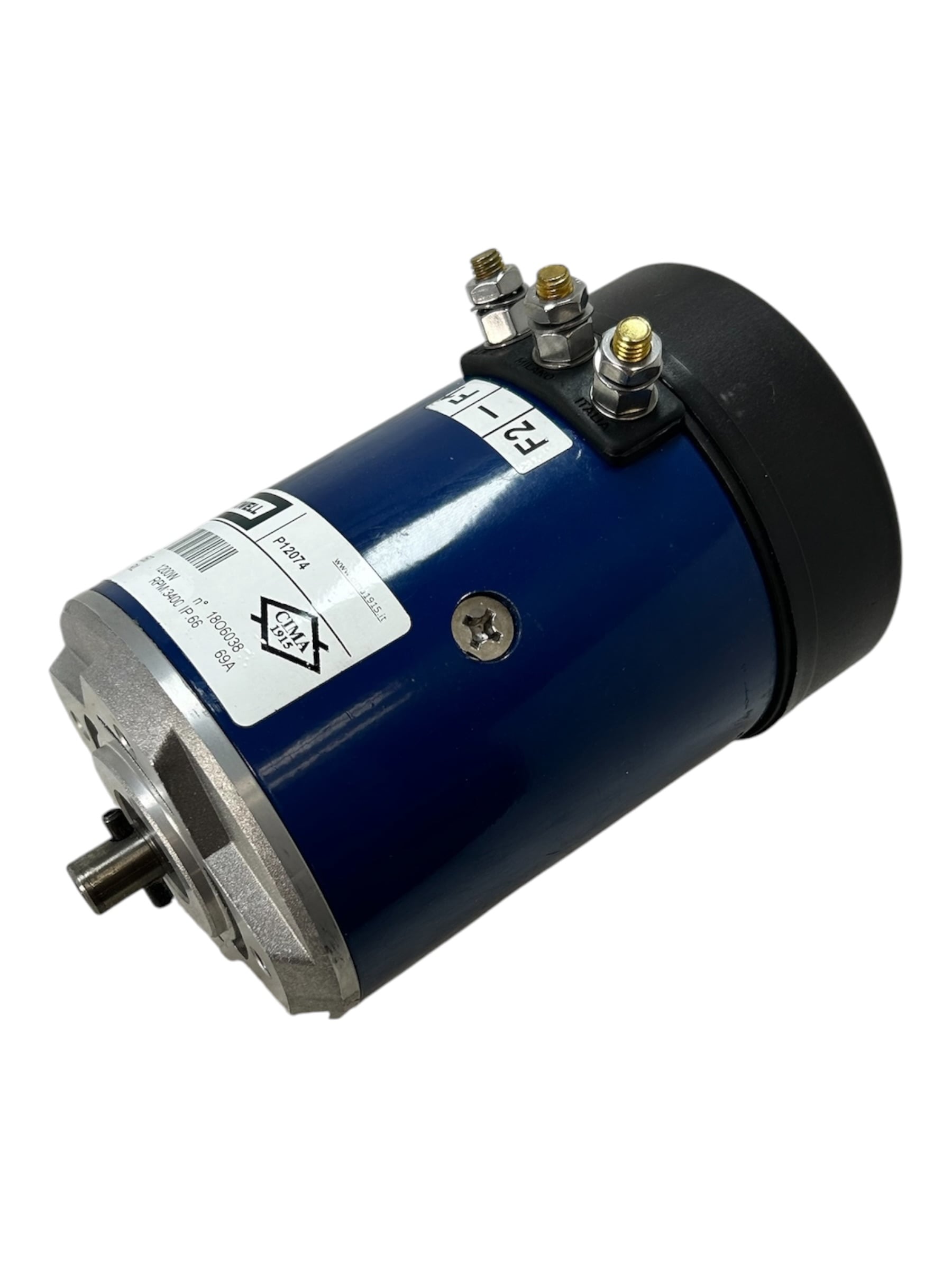

• Motor Power: 1,200 W
• DC Voltage Options: 12V / 24V / 48V
• Hydraulic Pressure: 2,000 PSI (138 bar)
• Hydraulic Flow: 11 US gal/min (40 L/min)

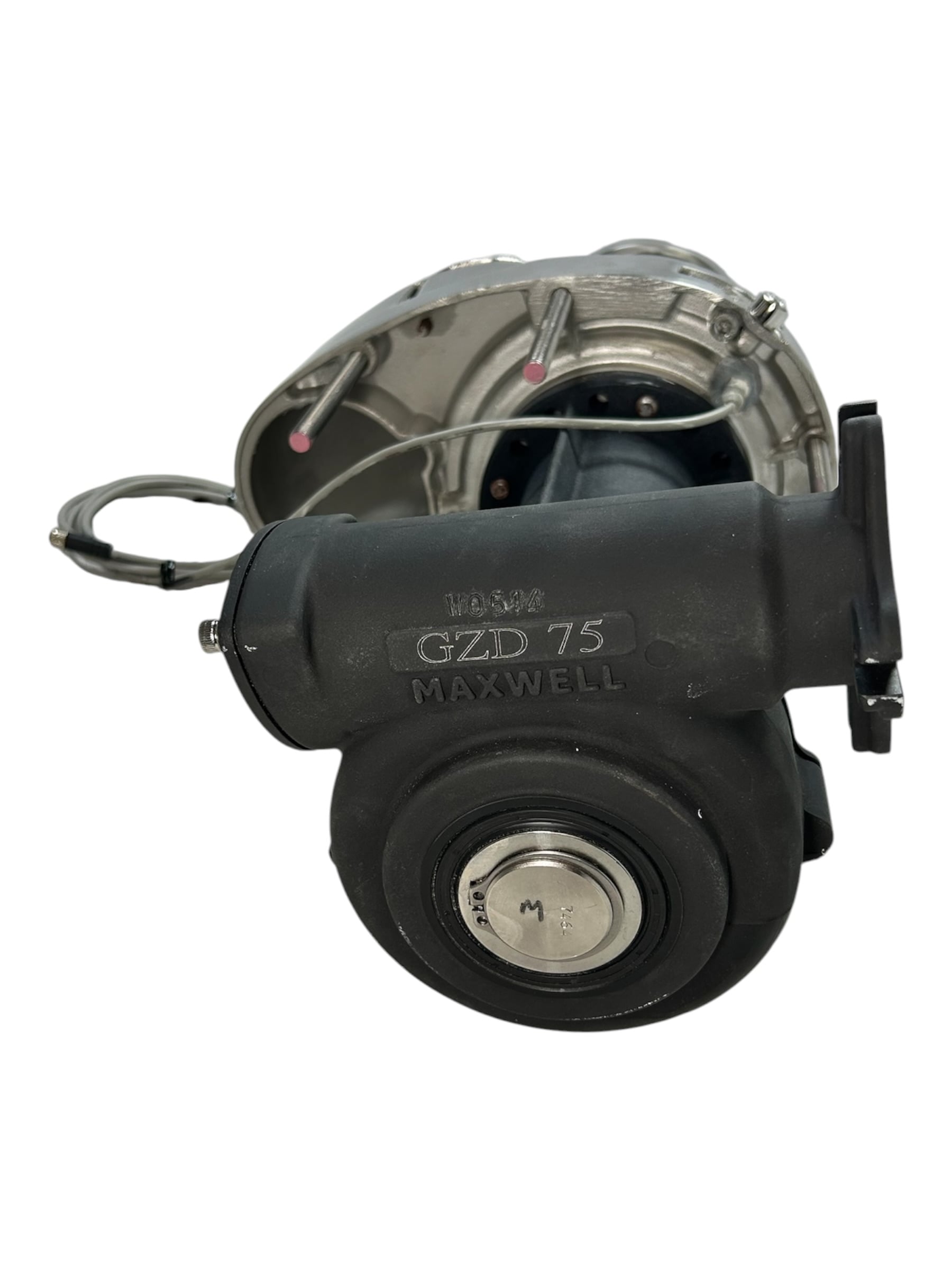

• Gearbox: 75:1 single-stage gearbox
• Recommended Vessel Size: Approximately 30–65 ft (10–20 m)
• FEATURES

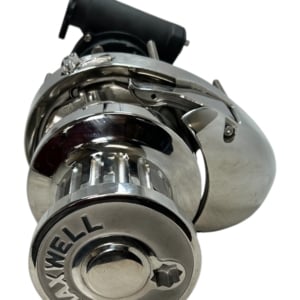

• Maxwell Wave Design chainwheel
• Marine-grade AISI 316 stainless-steel topworks
• Double-cone brake/clutch system
• Free-fall anchoring capability

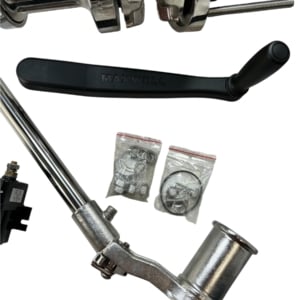

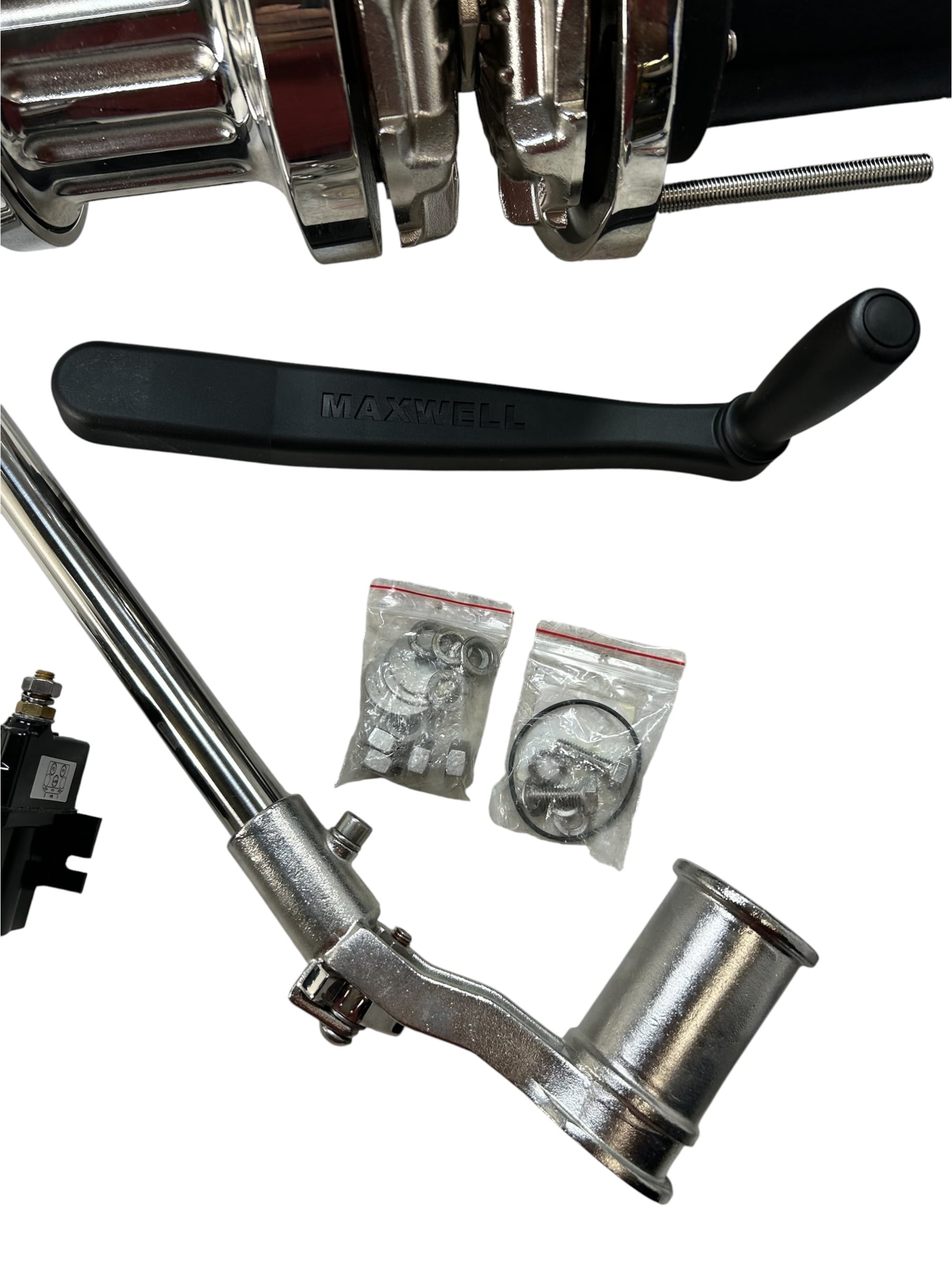

• Active Latch Ratchet System for emergency manual retrieval
• Smooth and quiet operation

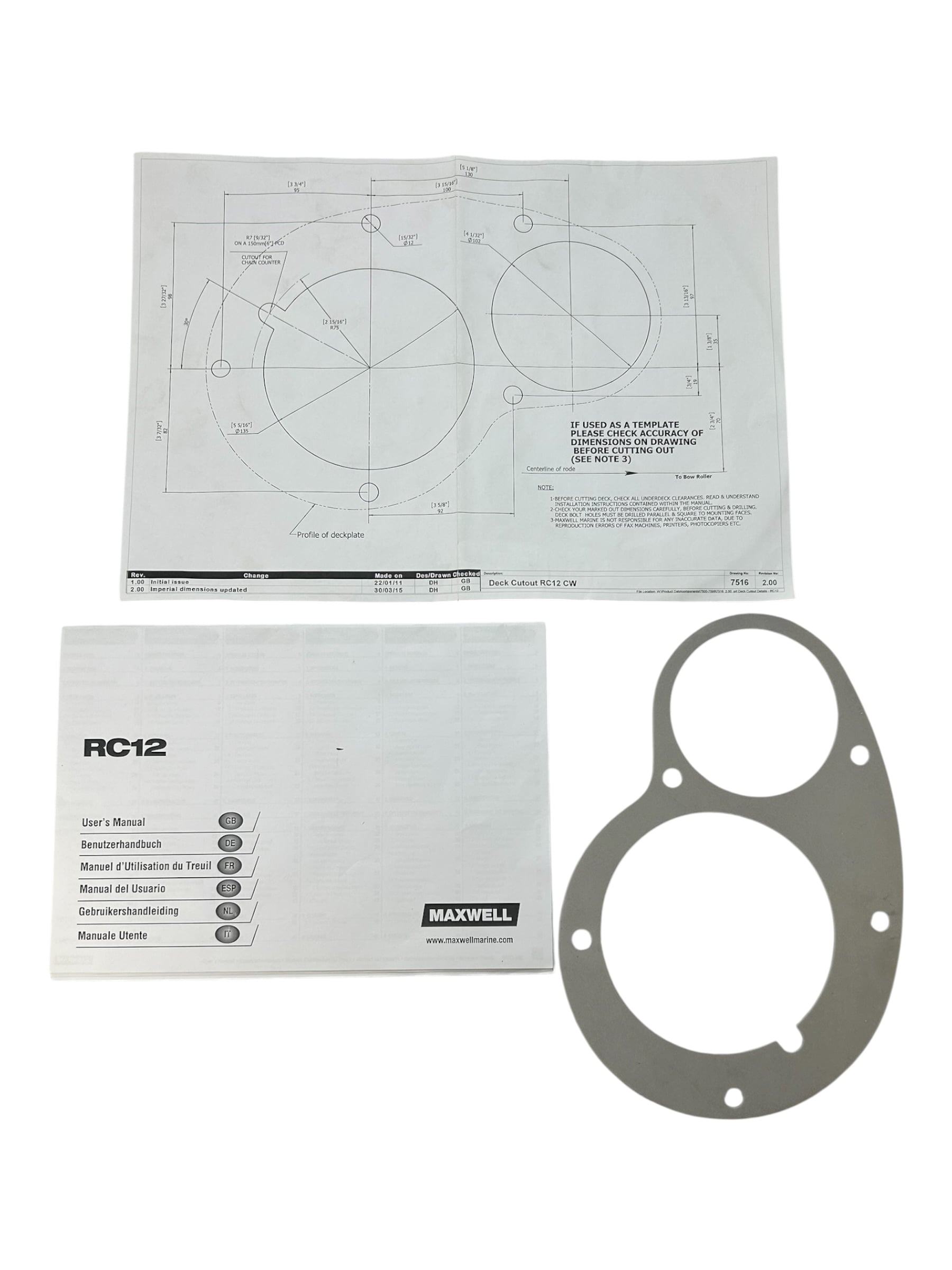

• Multiple installation/configuration options

The Maxwell RC12-10 is designed for boat and yacht anchoring systems where both rope and chain are used. It is installed at the bow of the vessel and provides powered deployment and retrieval of the anchor rode.

PLEASE NOTE: The RC12 series is available in multiple configurations and voltage options. Please verify the voltage, configuration, and other identifying information on the actual unit before purchasing.
