We recently acquired a large inventory of overstock items from a boat manufacturer. These products originally arrived in the manufacturer’s packaging; however, in some cases, the original packaging may not have been suitable for shipping and has been replaced with new packaging. Items may also show minor cosmetic blemishes due to storage.

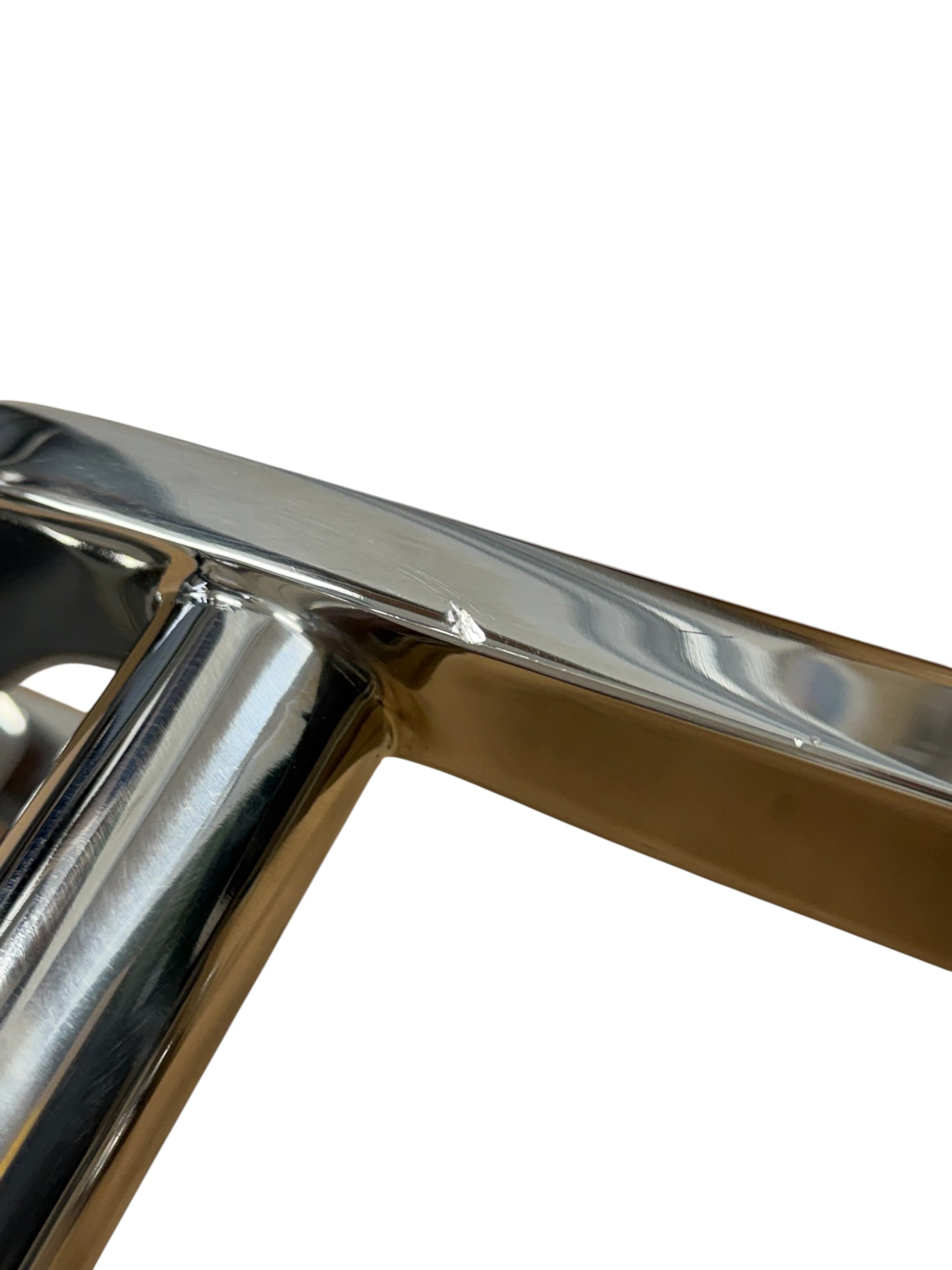

Please be advised that this item has a polished finish and is naturally very reflective of its surroundings and background. This item does have some minor markings from the original packaging. Any markings shown in the close-up photos are considered blem spots.

We have done our best to accurately photograph the item and show its condition. Unfortunately, we were unable to find a photo of this exact item installed on a Viking Yacht. If you have any questions, please feel free to send us a message.

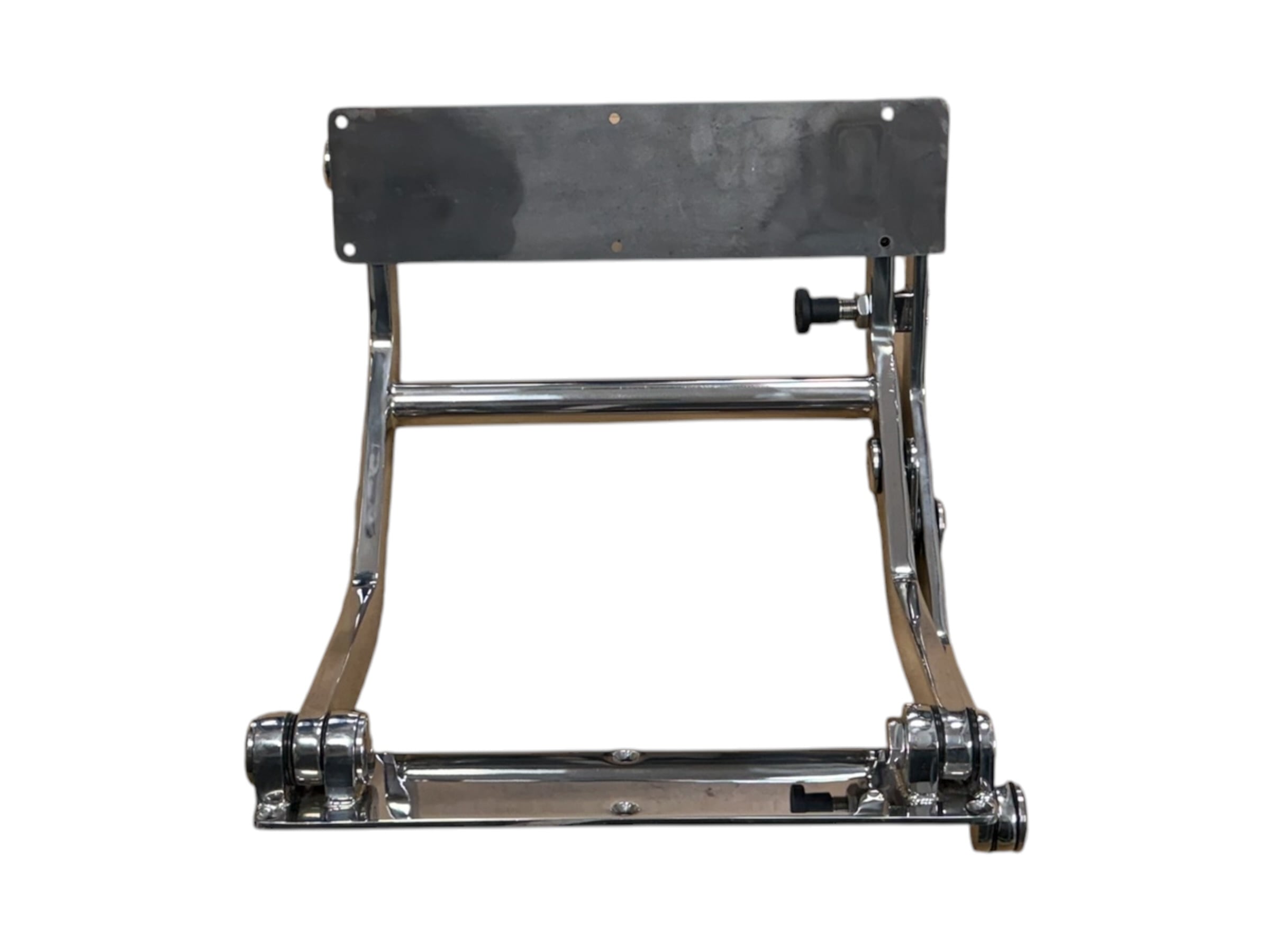

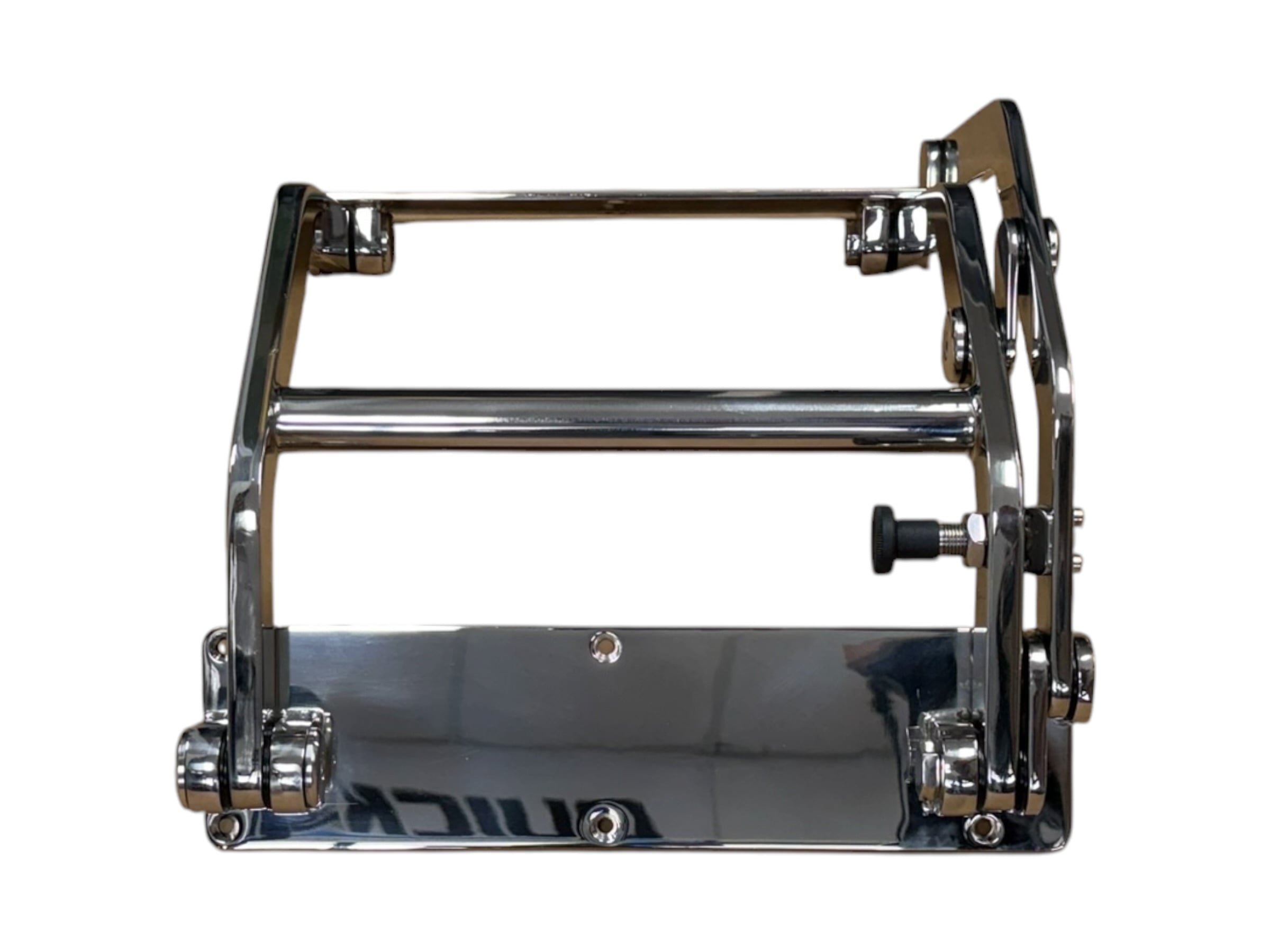

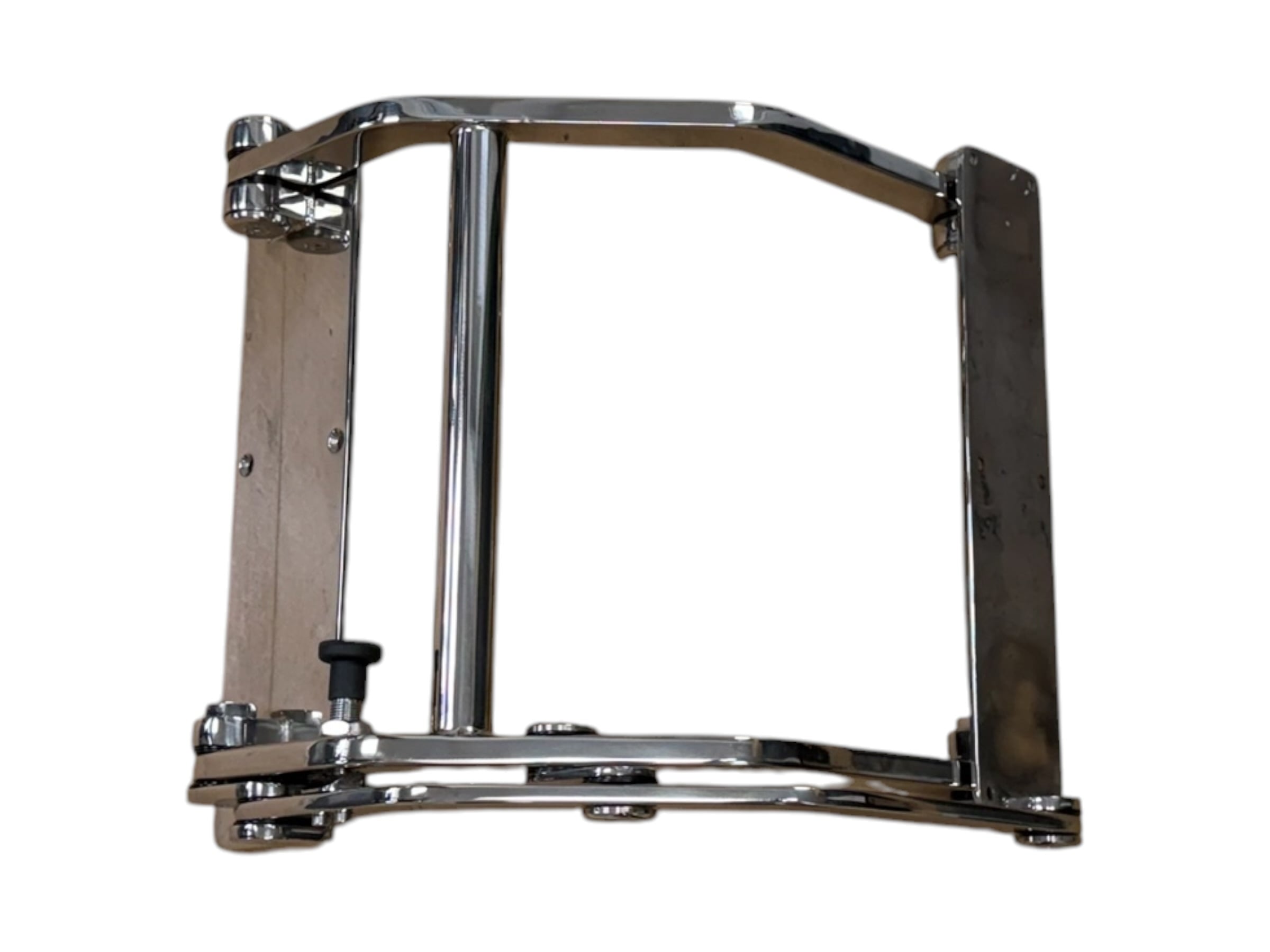

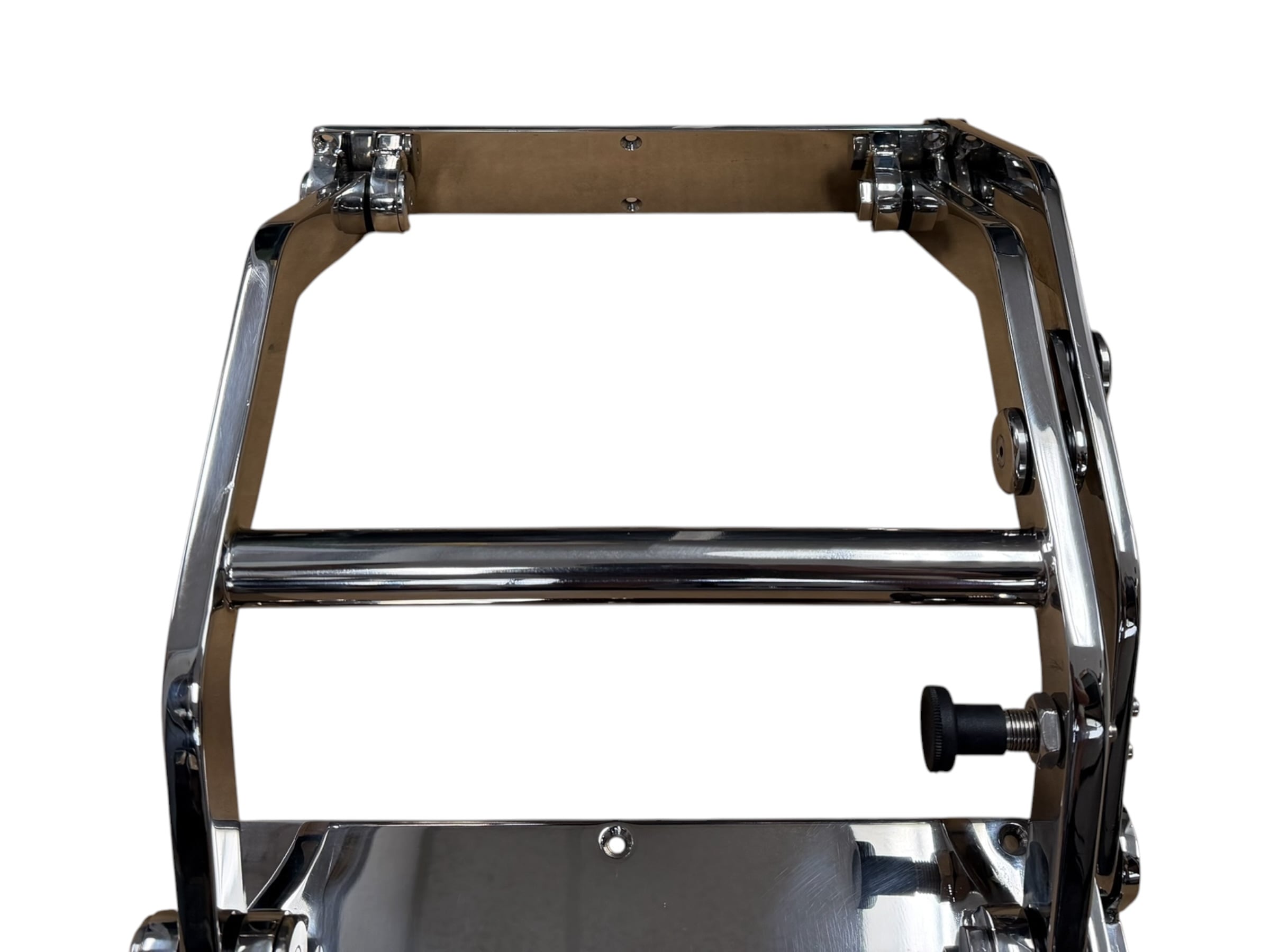

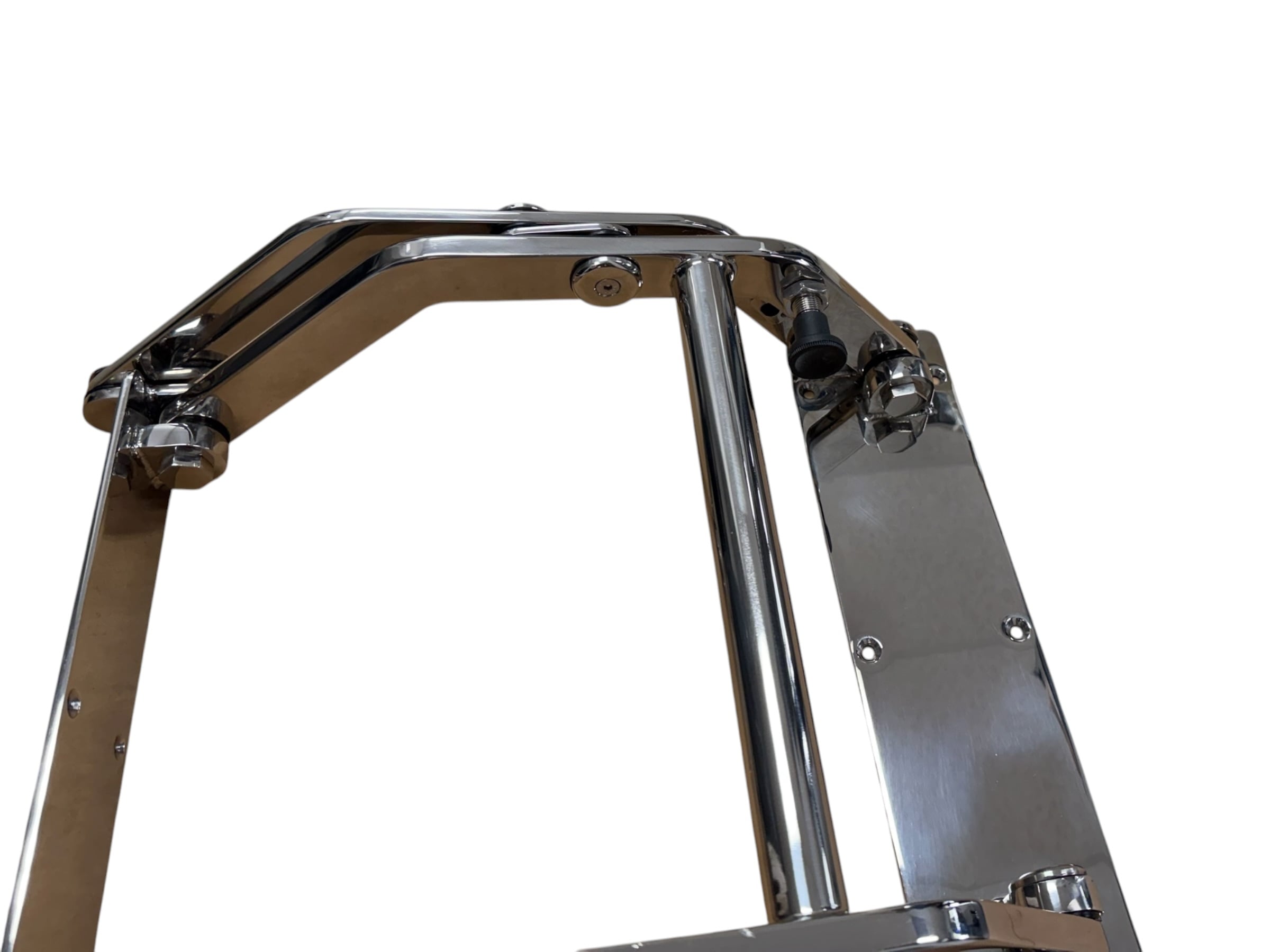

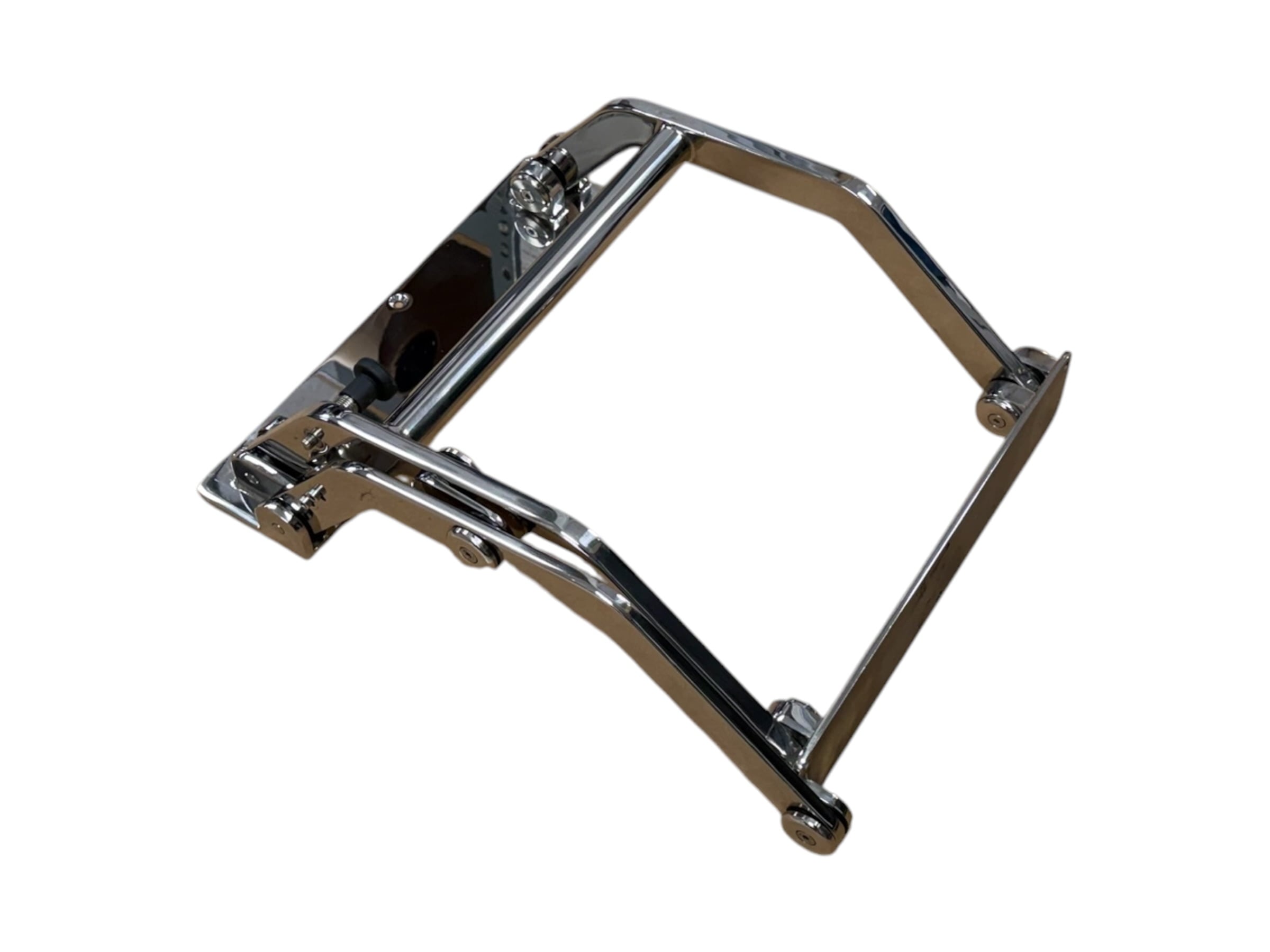

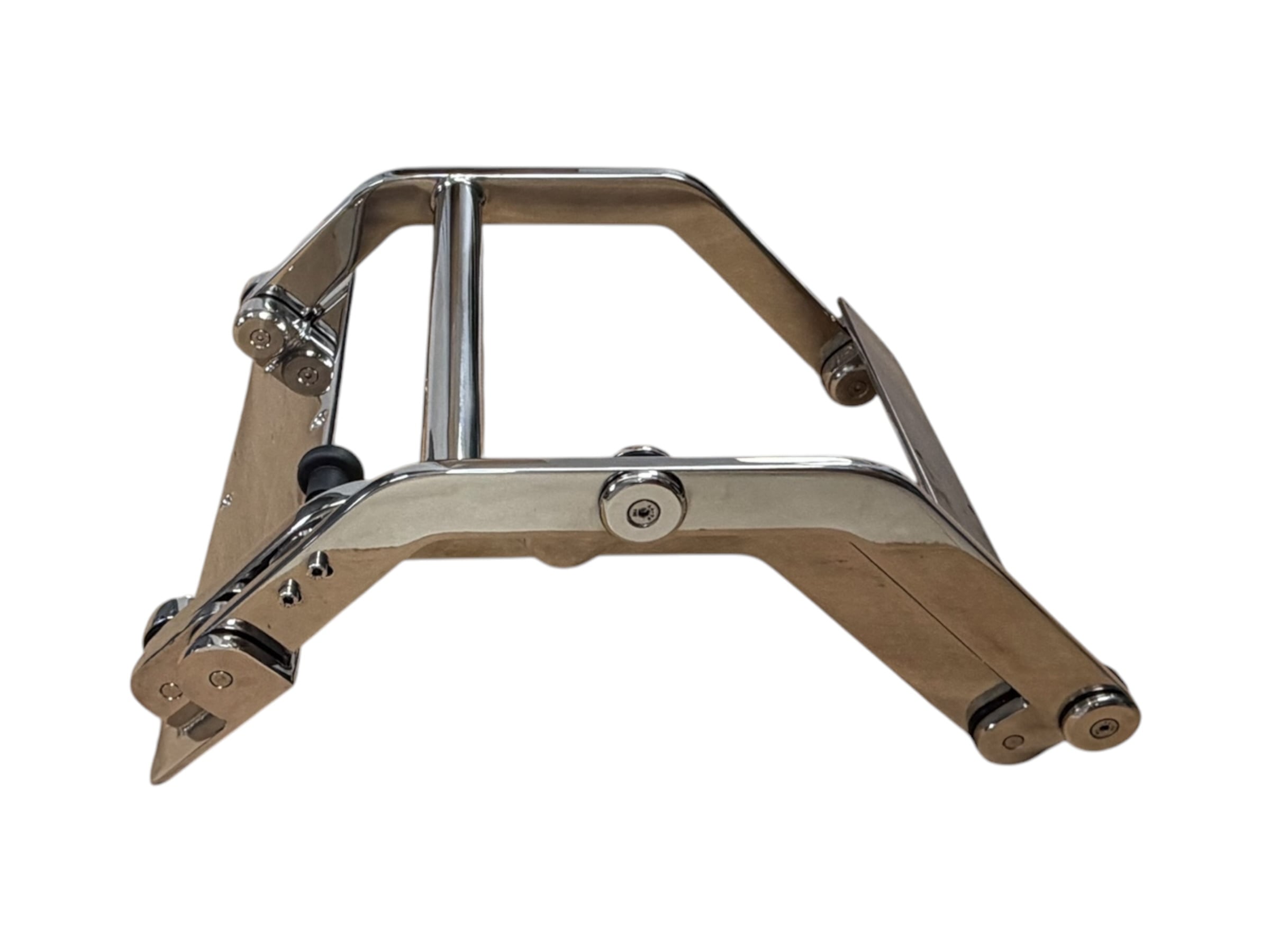

Product Identity: Genuine Opacmare Premium Side Boarding Bulwark Gate Pantograph Hinge Assembly.

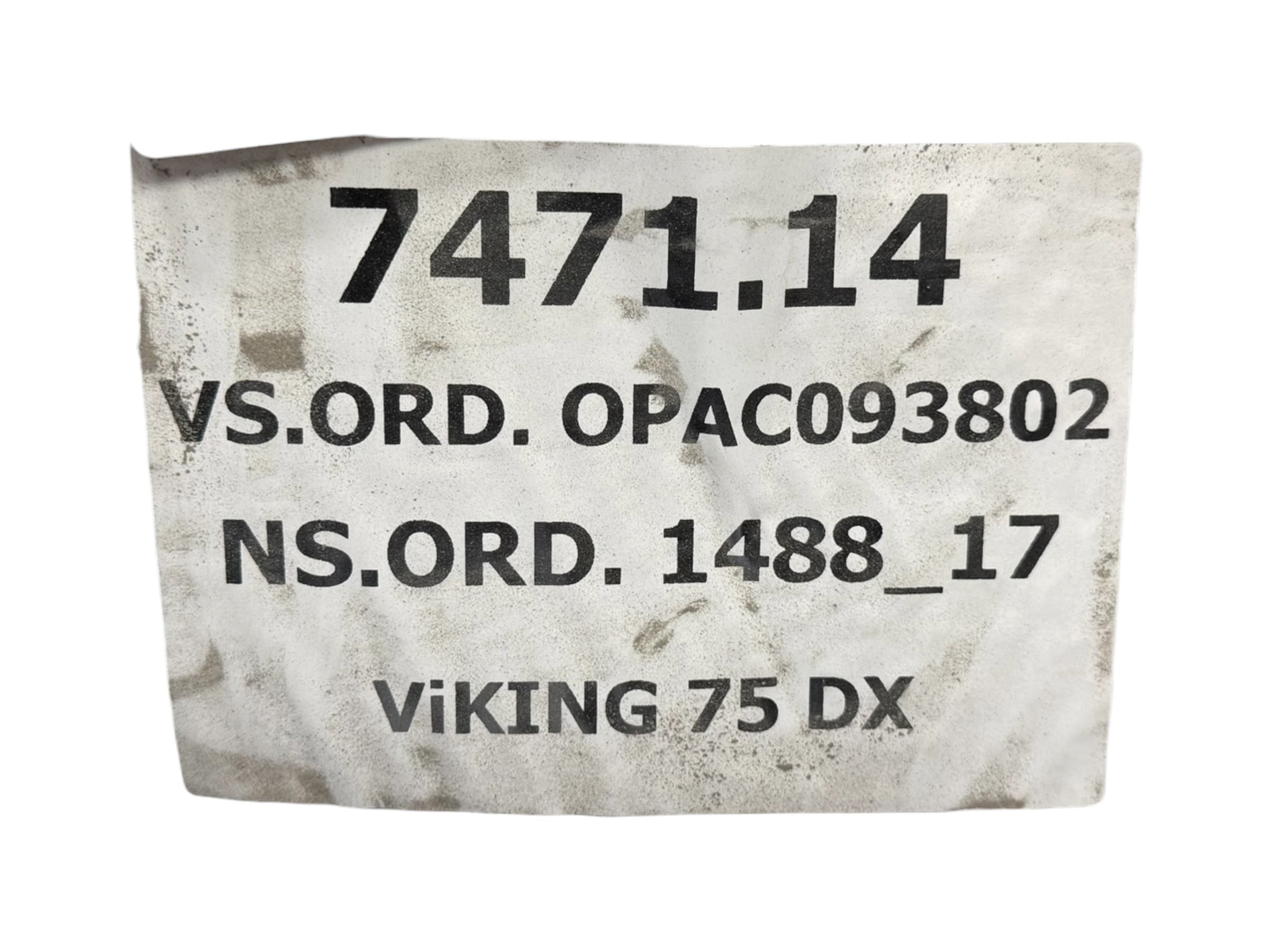

Vessel Generation: Factory-stamped "Viking 75 DX" matching the deluxe trim package of the late-model (2016–2022) Viking 75 Motor Yacht platform.
Manufacture Date: Stamped 06/26/2020 confirming production during the flagship yacht’s core lifecycle.
Component Class: Marine architectural heavy-duty articulating pantograph gate mechanism.
Material Composition: Solid, thick-gauge investment-cast AISI 316L Marine-Grade Stainless Steel designed for maximum structural load under open-sea conditions.
Exterior Finish: Multi-stage, high-grade mirror electro-polished finish providing a flawless, reflective surface with elite saltwater corrosion resistance.

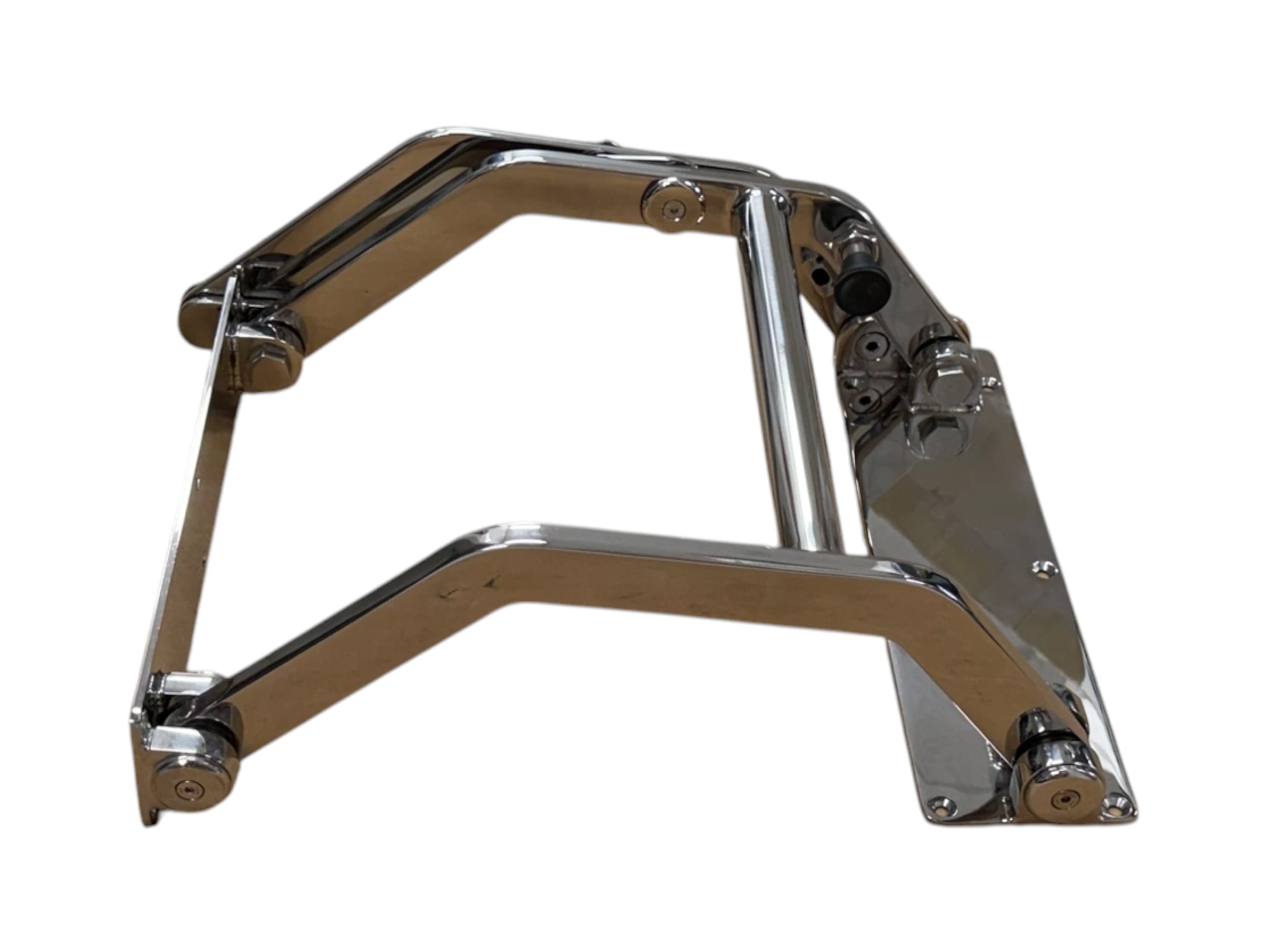

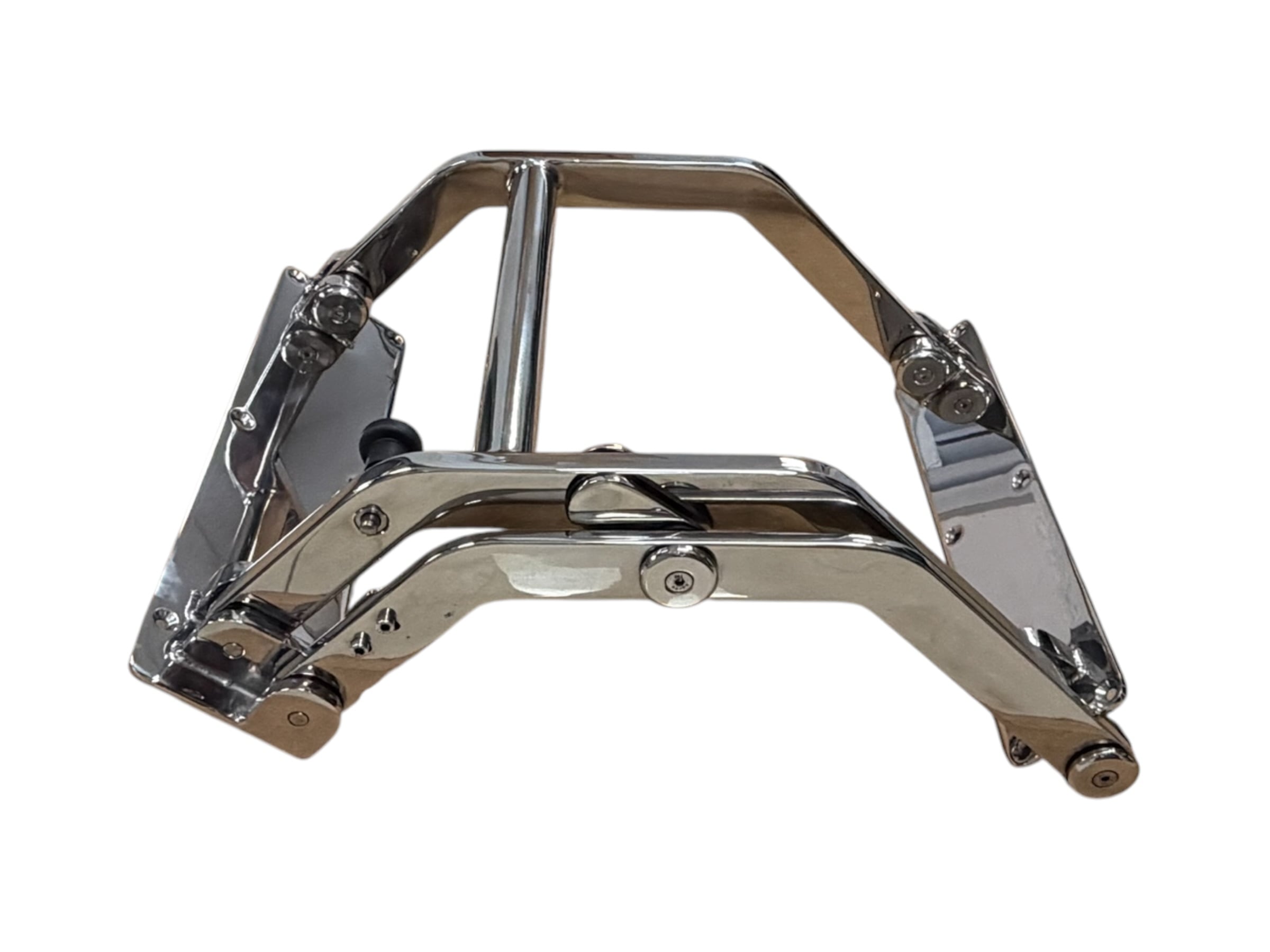

Kinematics & Movement: Features a complex multi-pivot pantograph swing path that lifts the thick fiberglass-sandwich door frame outward and rotates it cleanly back towards the stern, parallel to the deck line.
Locking Integration: Includes a built-in mechanical block to securely hold the heavy bulwark door steady in both the fully closed and fully open positions.

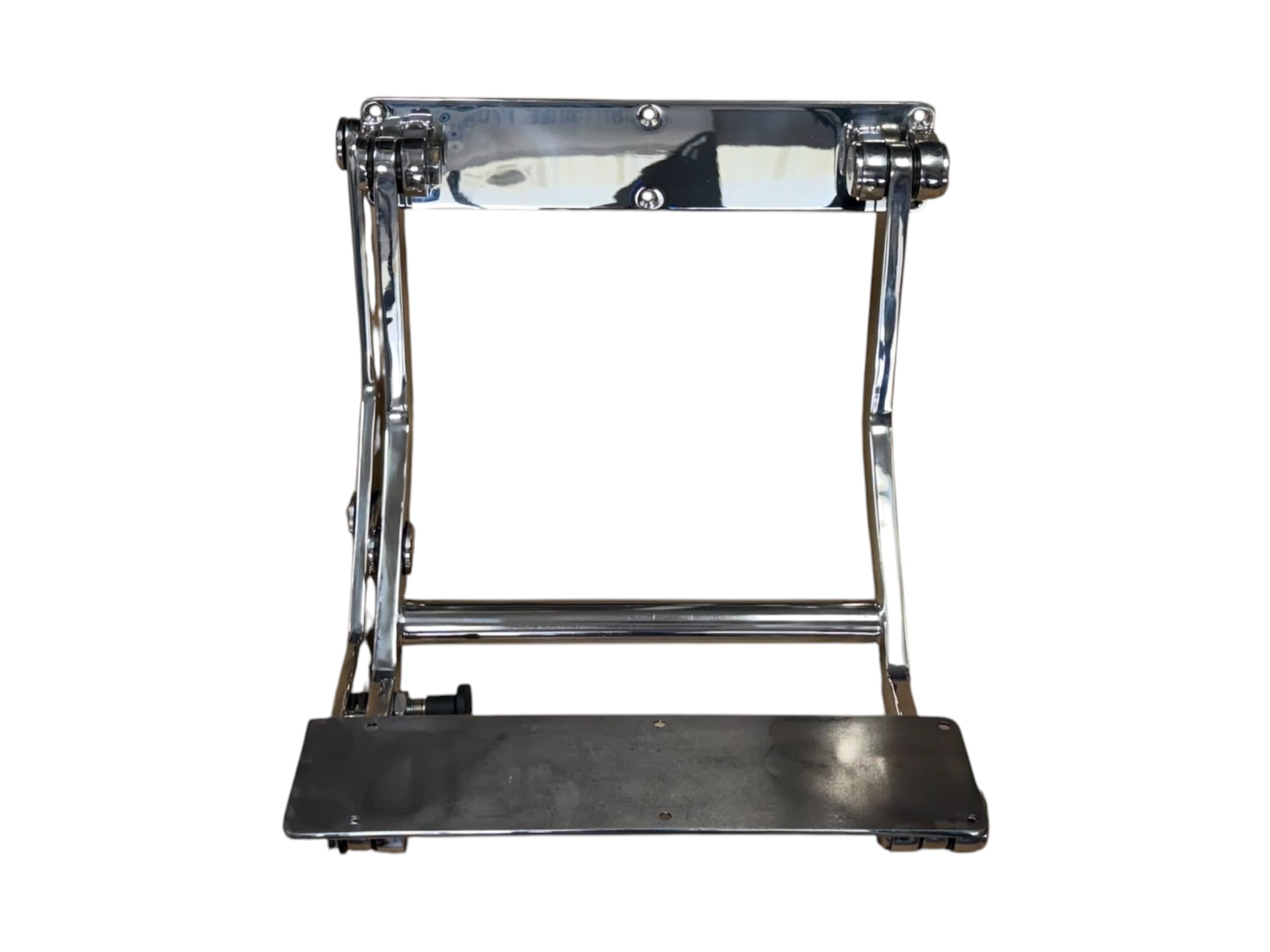

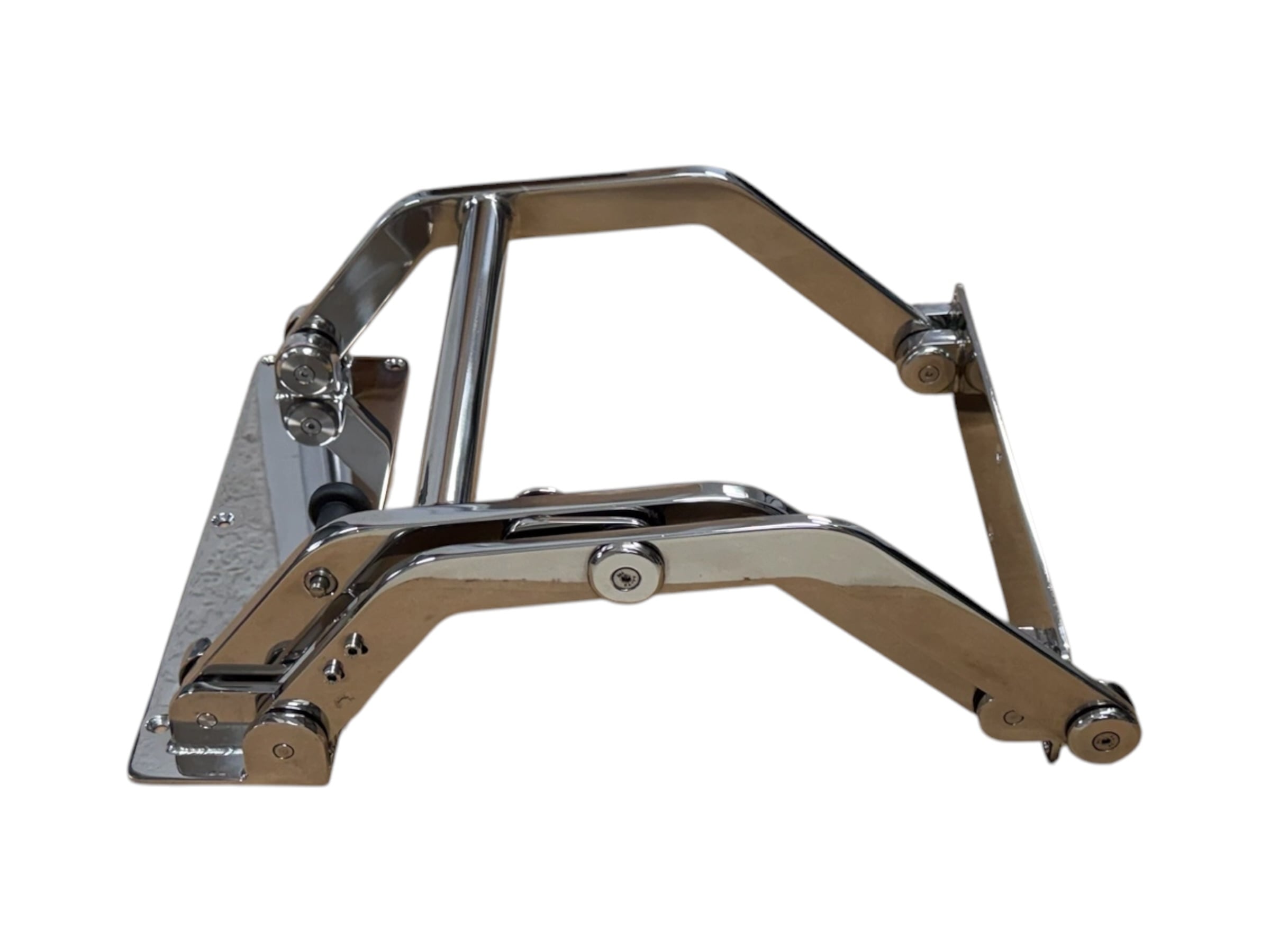

Primary Mounting Plate Dimensions: The larger heavy-duty flat stainless steel mounting plate measures 15-1/4 inches long by 4 inches wide.
Secondary Mounting Plate Dimensions: The opposite flat stainless steel mounting plate measures 14-1/4 inches long by 3 inches wide.
Fastener Specifications: Both solid mounting plates feature factory-tapered (countersunk) screw holes designed for flush-fitting flat or oval-head fasteners to sit perfectly flat against the polished surface.
Hole Pattern Sizing: All machined mounting ports are 1/4-inch diameter.
