We recently acquired a large quantity of marine parts. This is a new old stock item in excellent condition, however, the factory original packaging wasn’t salvageable causing shelf rash.
**Note: Only what is pictured will come with the purchase. The parts included have minor blemishes due to storage. Please verify the contents and condition with our photos.**

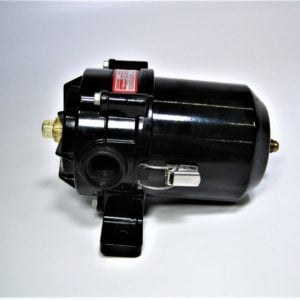

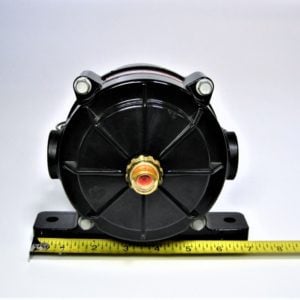

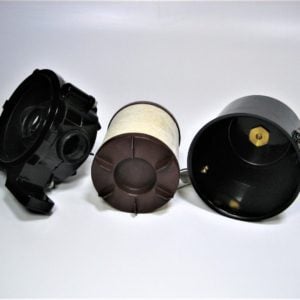

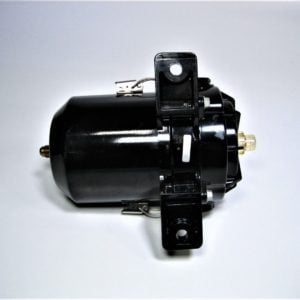

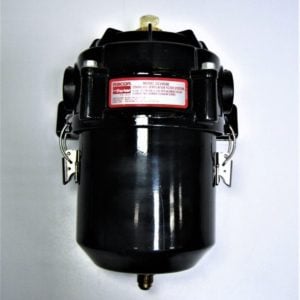

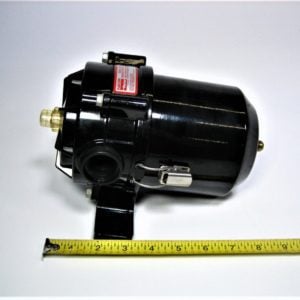

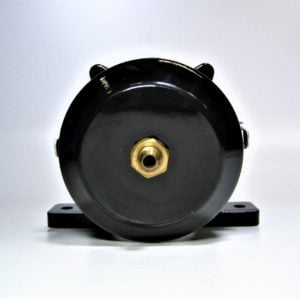

We were able to determine this is a Racor Parker CCV4500 Crankcase Ventilation Filter System by the part number located on the factory original label.
Technical Specifications:
- Maximum Flow Rate: 10 cfm / 0.28 m3/m
- Filtration Ratings: High
- Type/Configuration: Closed System
- Function: Bypass Assembly
- Maximum Output: 400 HP / 300 kW
- Product Series: Cartridge Crankcase Ventilation, CCV4500
- For Fluid Type: Engine Blowby Gas
- Mounting Type: Integrated Head Bracket
- Compatible Element: Low: CCV55248-04, High: CCV55248-08, Ultra: CCV55248-10
- Port Size: 1-3/16″, 12 SAE
- Drain: Drain Kit: Hose, Check Valve, (2) Swivel Fitting
- Materials of Construction: Die cast head, glass filled nylon and black powder epoxy-coated steel bowl
- Indicator Type: Element Bypass/Change Indicator
- Pressure Regulator Type: Integral crankcase pressure regulator
- Width: 7.2 inches (18.3 cm)
- Depth: 5.6 inches (14.2 cm)
- Height: 9.3 inches (23.6 cm)
- Heat Type: 100W Optional: CCV55461 (120VAC) CCV55461-12 (12VDC) CCV55461-24 (24VDC)
- Interface Type: Remote By-pass Indicator Kit CCV55615-01
Please verify compatibility before purchasing and see our photos for more regarding the condition. Because this is a new old stock item, it does not carry any manufacturer’s warranty.
