We recently acquired a large inventory of overstock items. These items are missing the manufacturer's original packaging and may have minor cosmetic blemishes from storage.

Model Code: AA2FM23/61W-VSD520

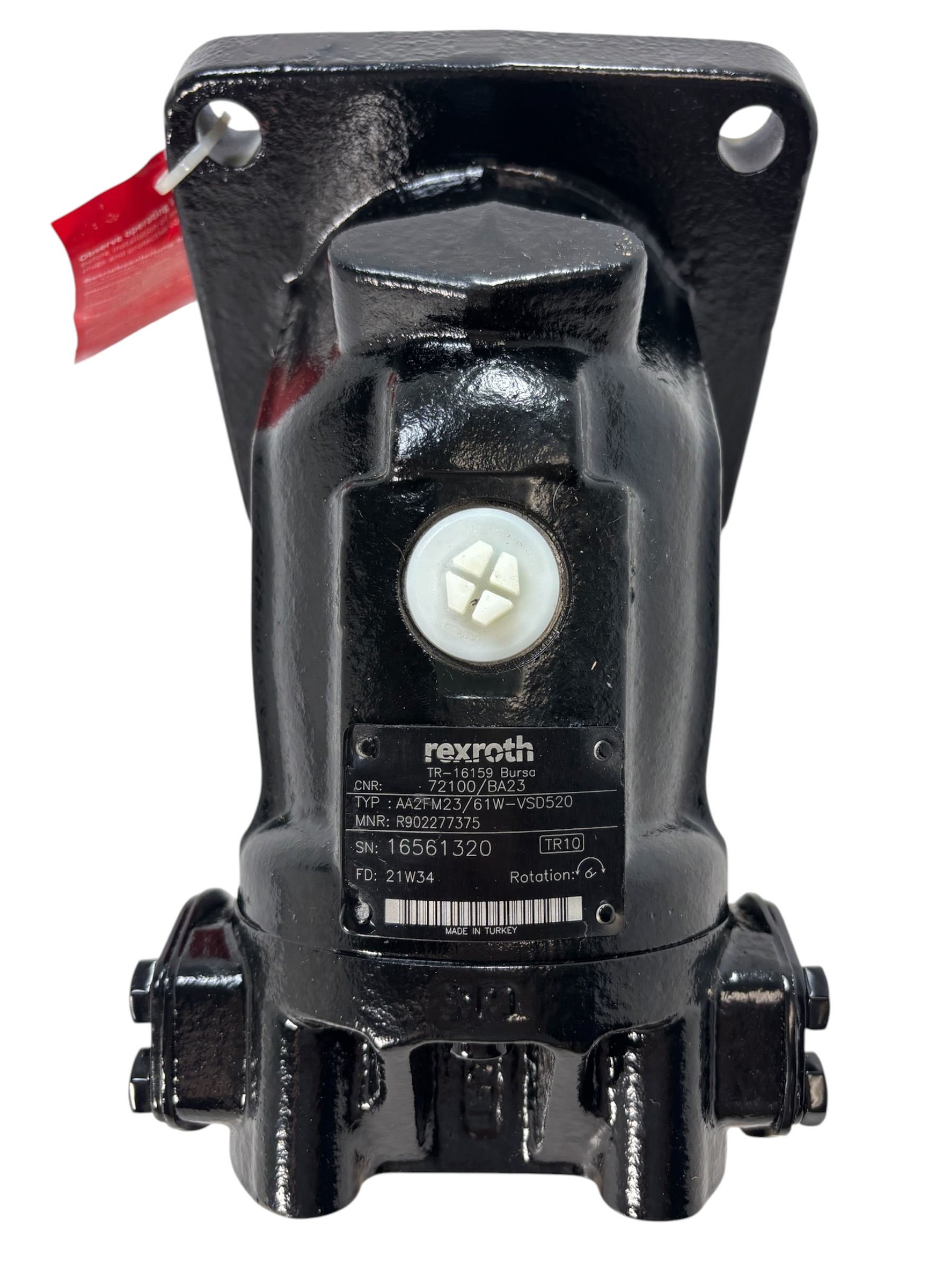

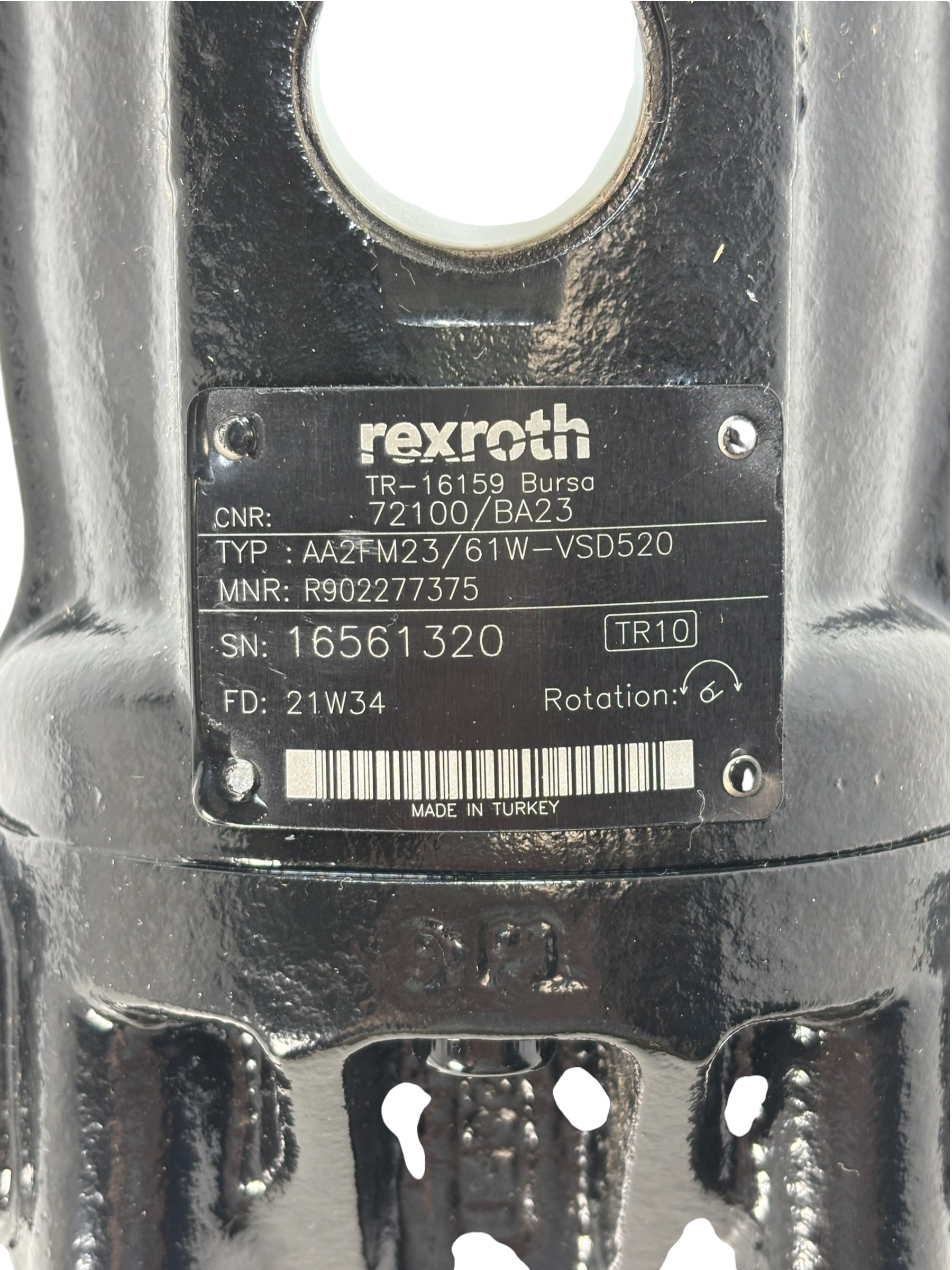

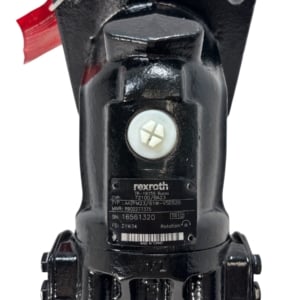

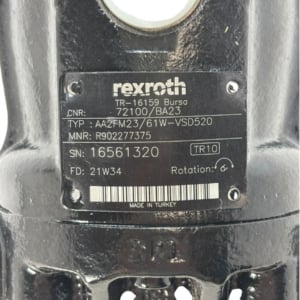

Nameplate Manufacturing Info: Marked “TR-16159 Bursa”, which identifies the manufacturing factory location information associated with the unit's production. The exact technical configuration parameters are determined by the specific Type Code (TYP) and Material Number (MNR).

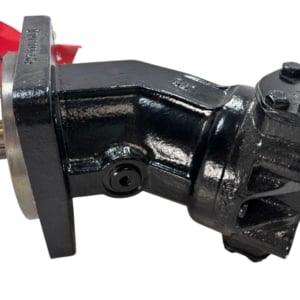

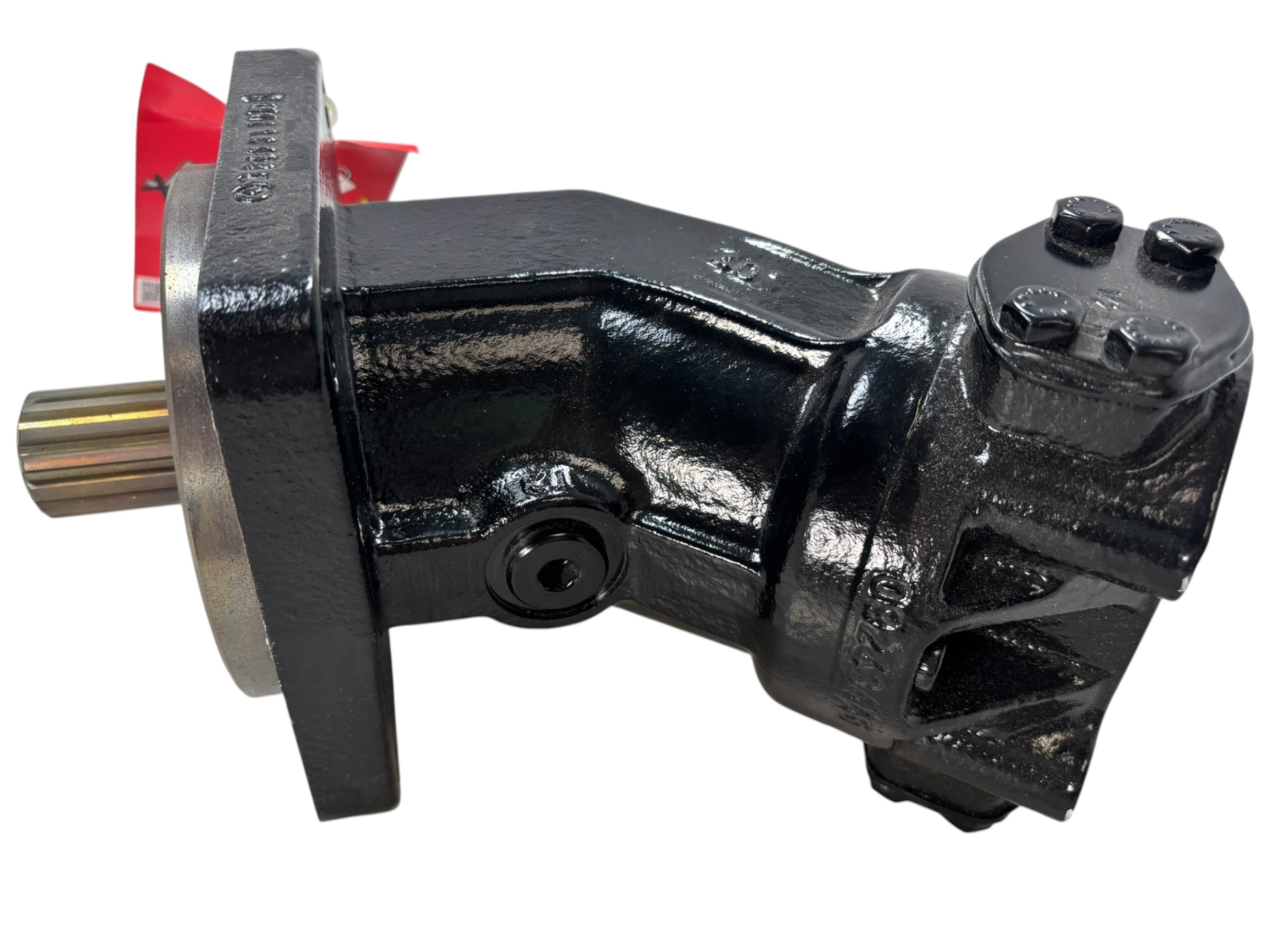

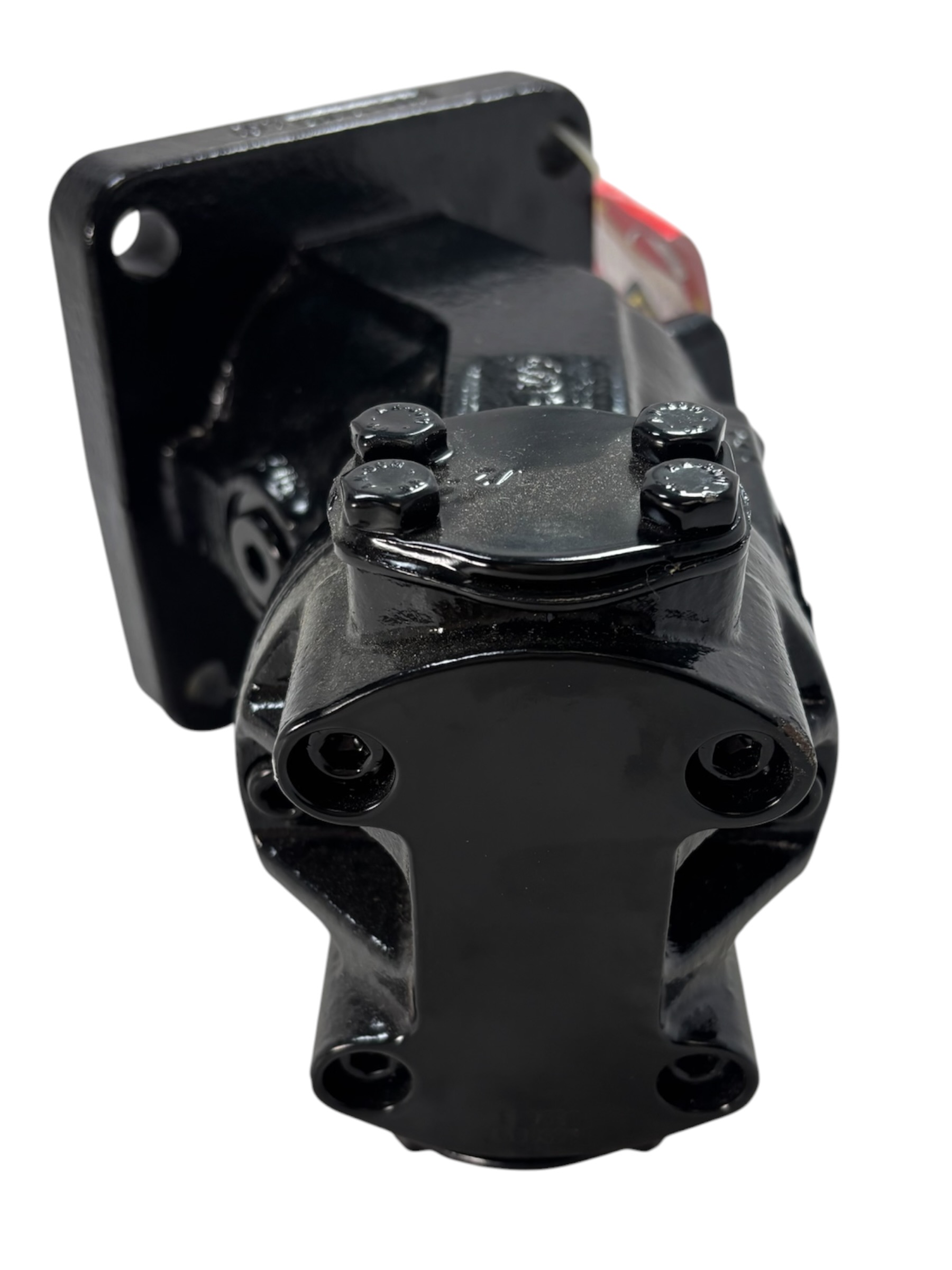

Design: Fixed displacement axial piston motor (Bent-axis design)

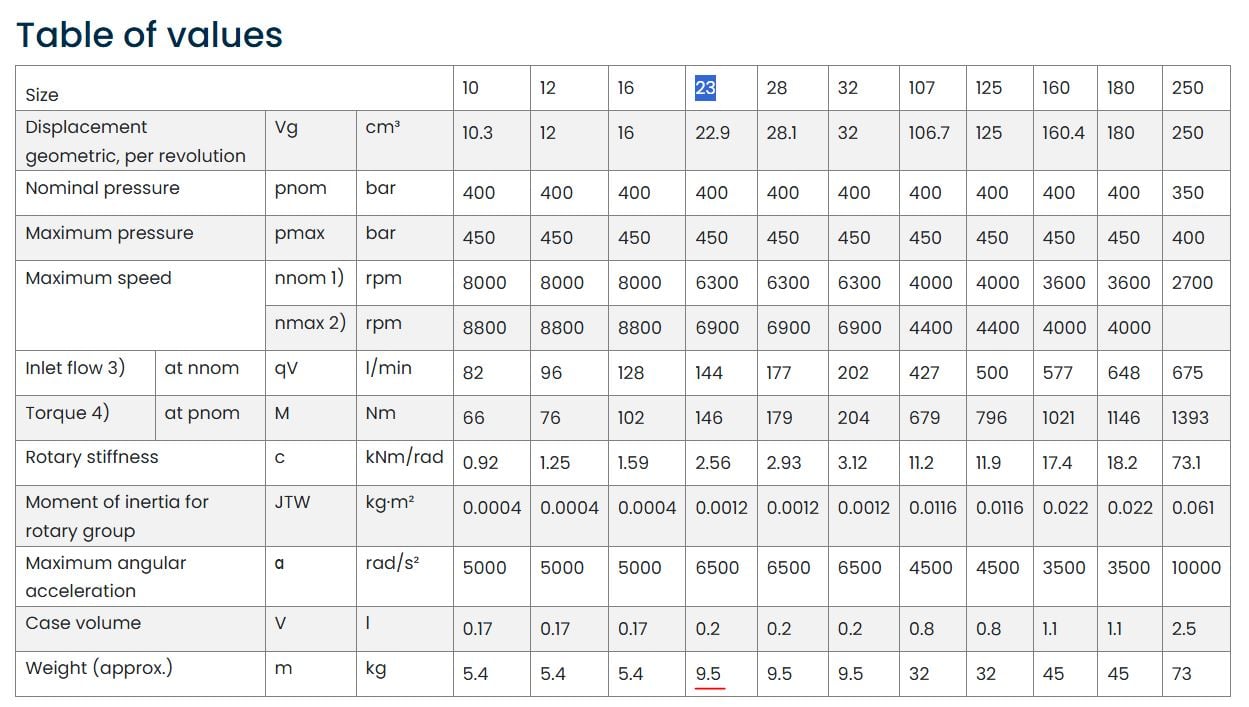

Displacement: 23 cc (23 cm³) per revolution

Series: 61

Rotation: Bidirectional / Alternating (W)

Seals: FKM / Viton (V)

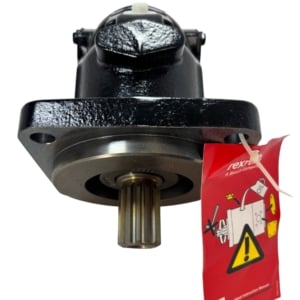

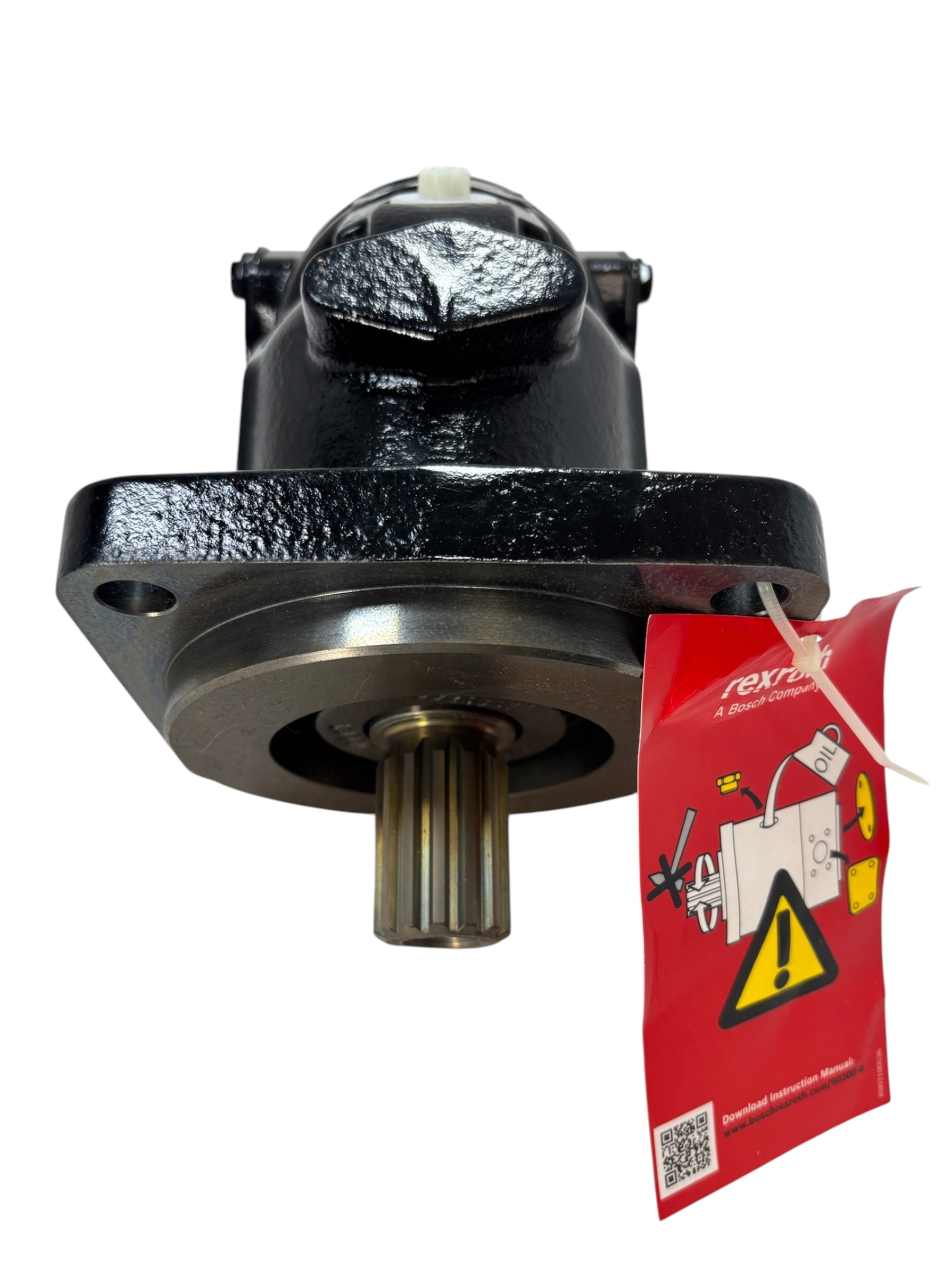

Shaft Type: Standard SAE Splined Shaft (S)

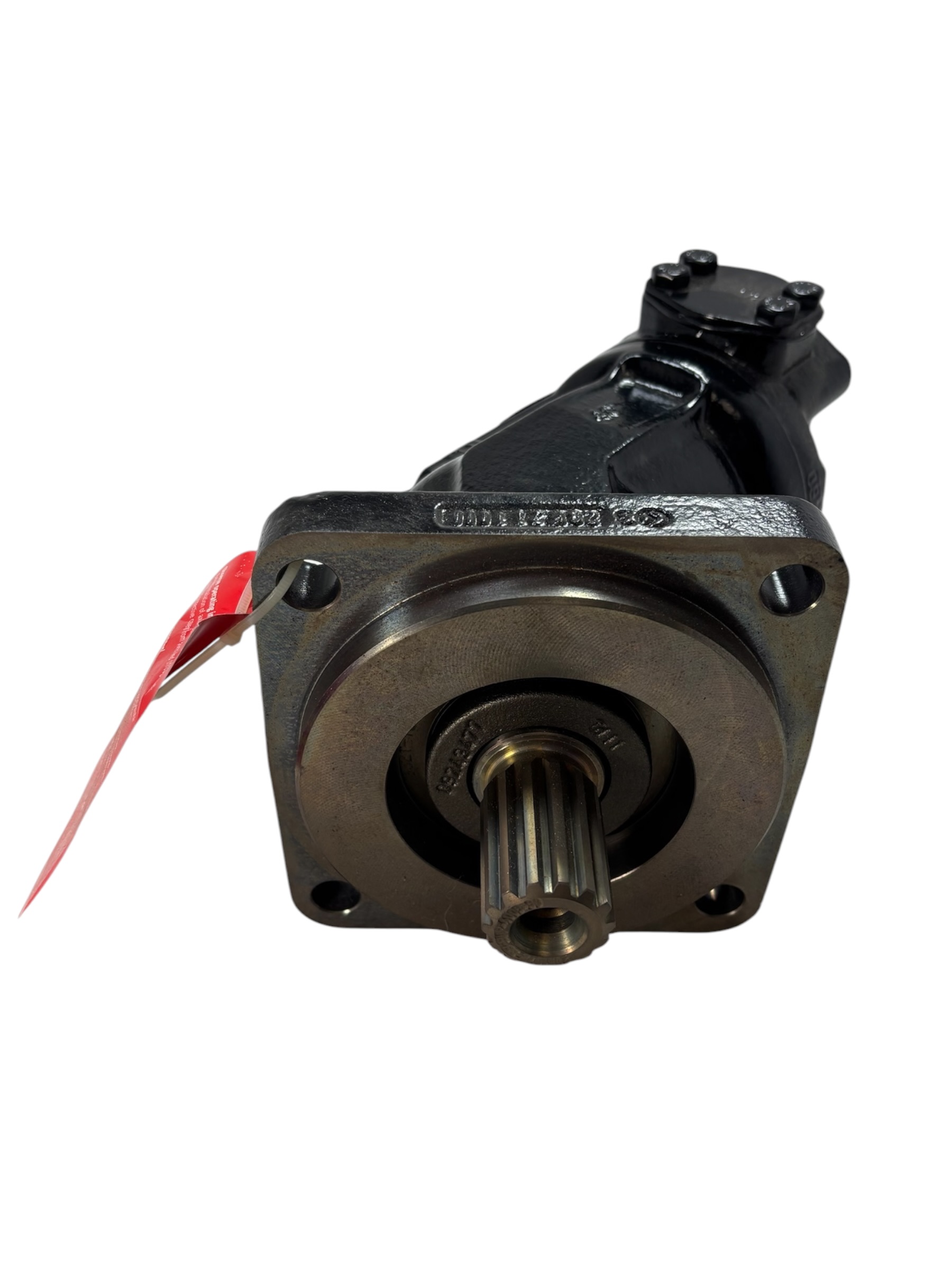

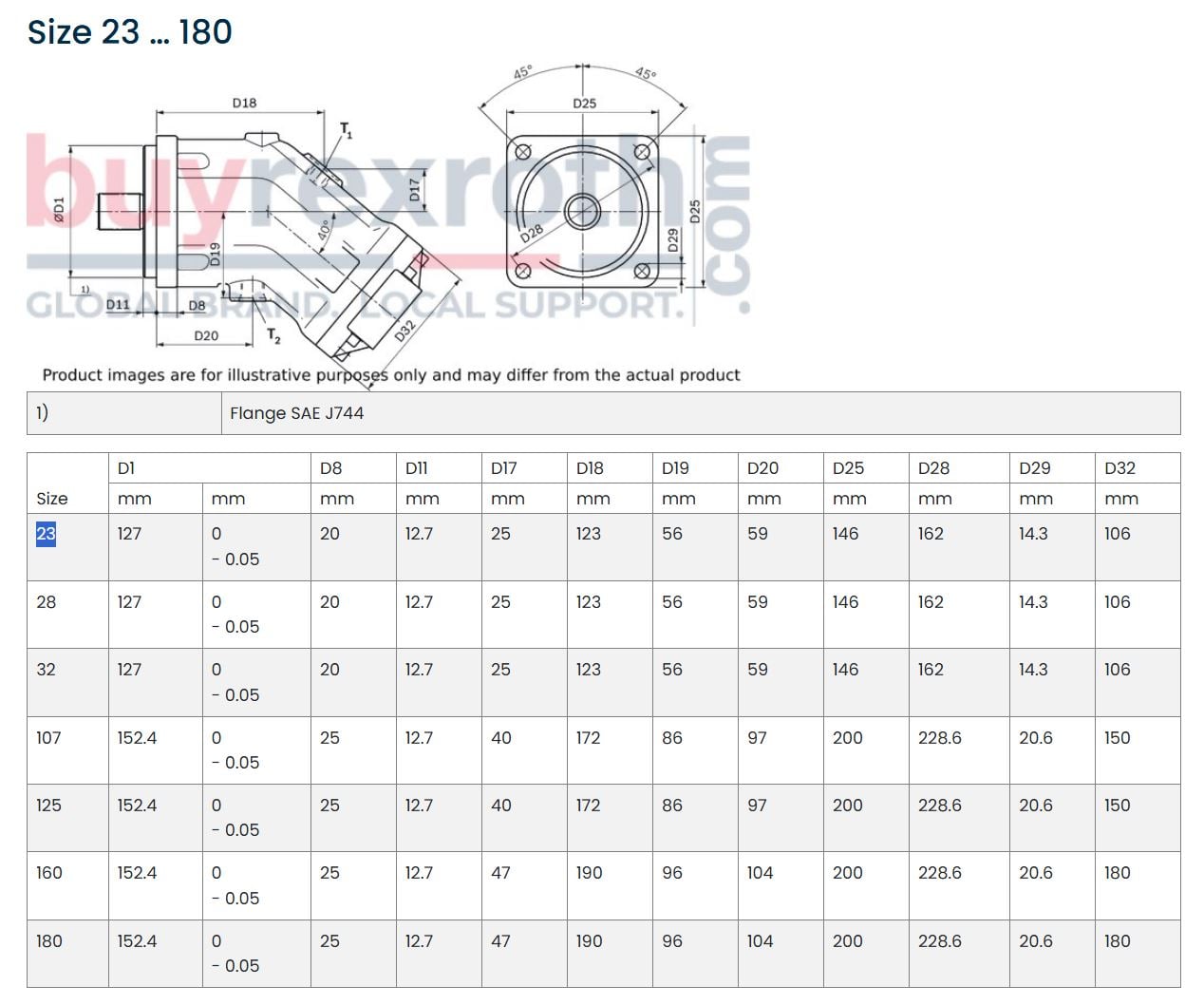

Mounting Flange Style: 4-Hole SAE "D" Flange Code

Pilot Diameter: 4.000 Inches (101.6 mm)

Bolt Circle Diameter (BCD): 5.755 Inches (146.05 mm)

Bolt Hole Diameter: 0.531 Inches (13.5 mm)

Working Ports (A & B): 1/2" SAE Flange Ports (Code 520 layout)

Case Drain Port (T1): 7/8"-14 UNF-2B Threaded Port

Please review all photos and nameplate markings carefully to confirm compatibility and exact specifications before purchase. The exact model and technical specifications should be determined from the complete type code and material number on the unit.
