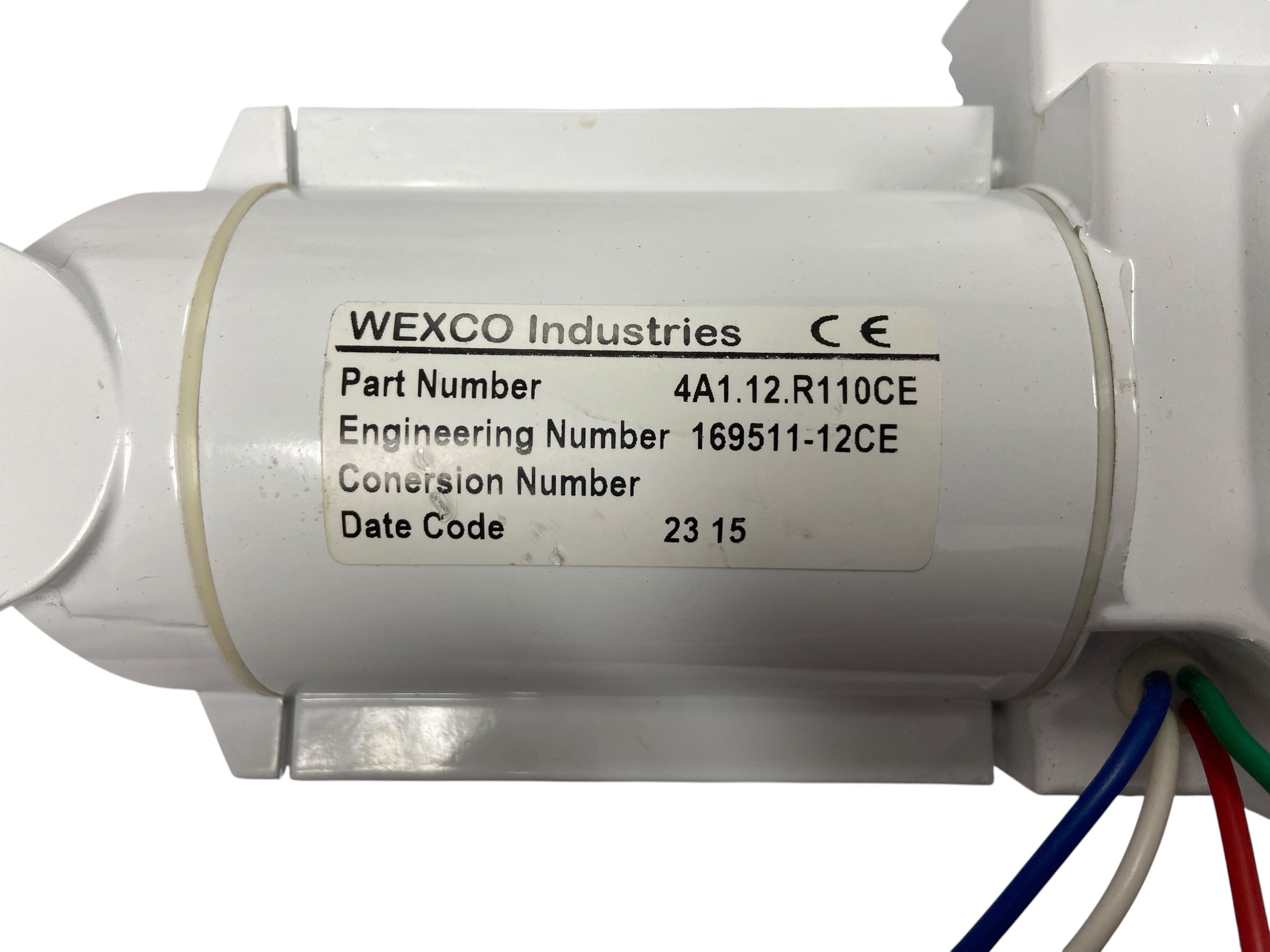

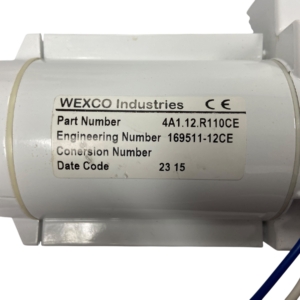

Manufacturer: Wexco Industries

MPN: 4A1.12.R110CE

Listed Item Condition: Used

Additional Notes:

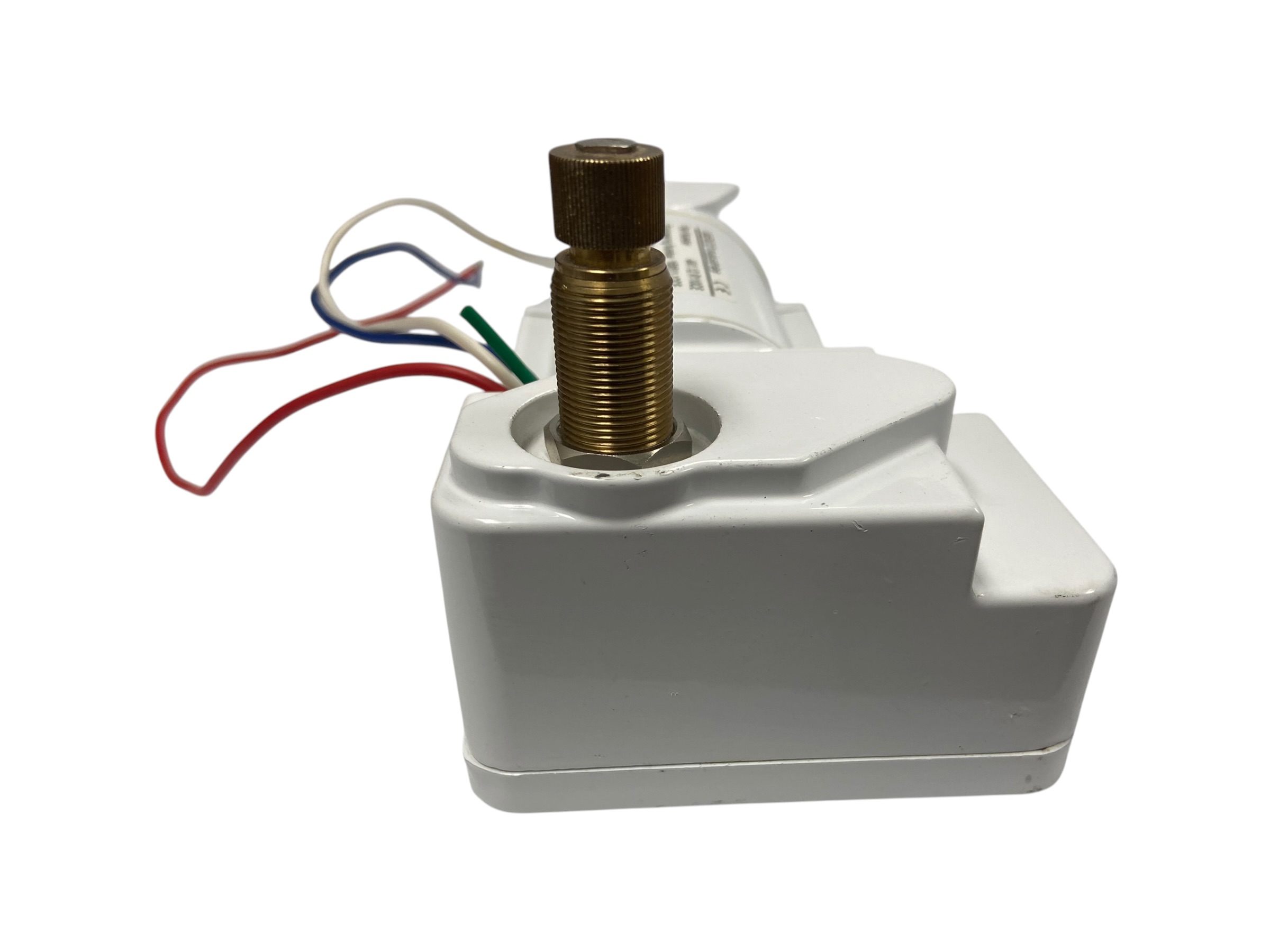

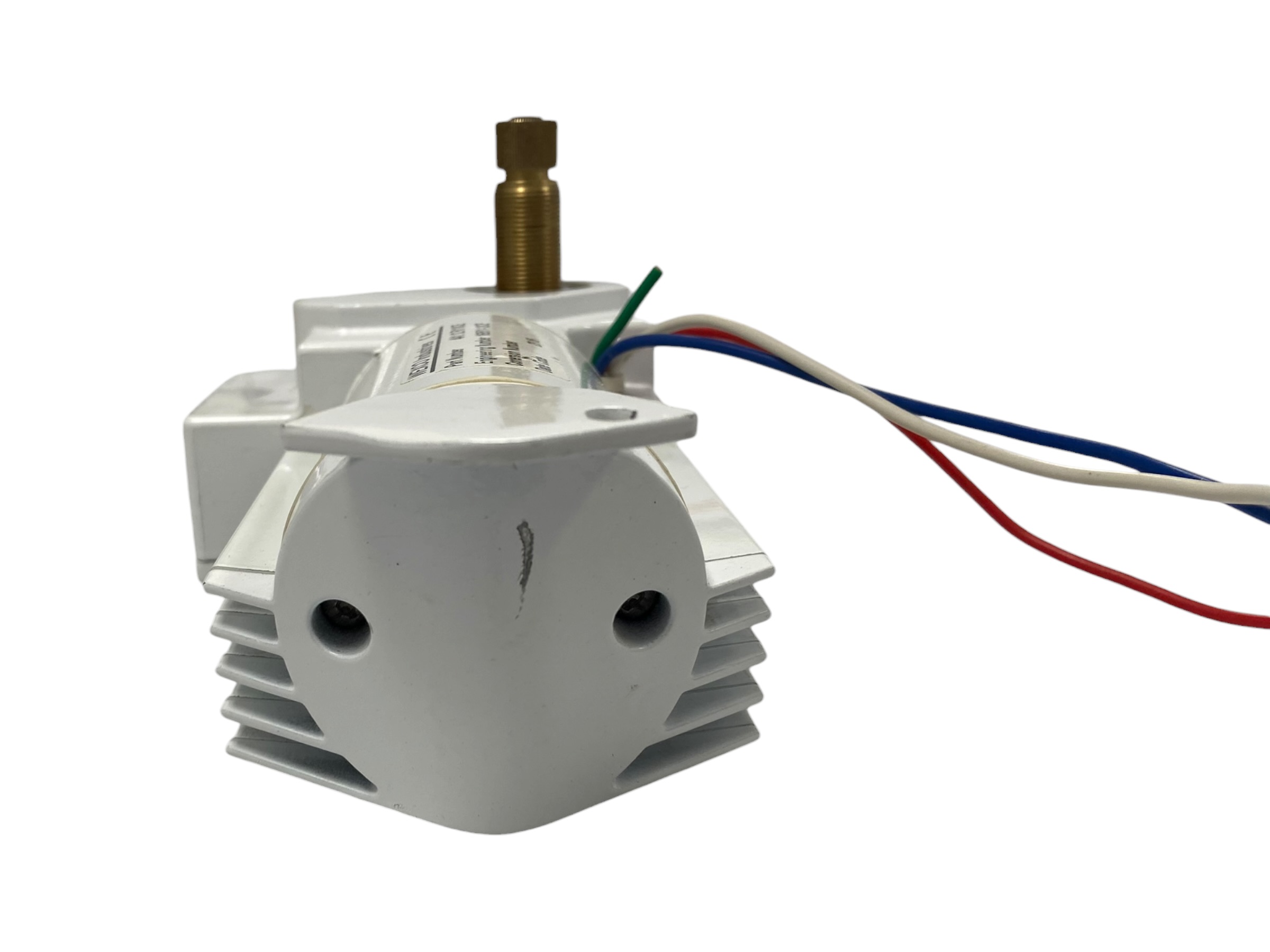

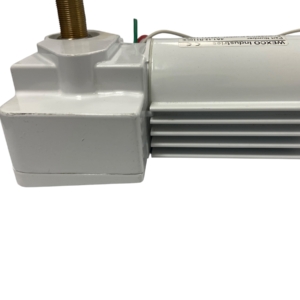

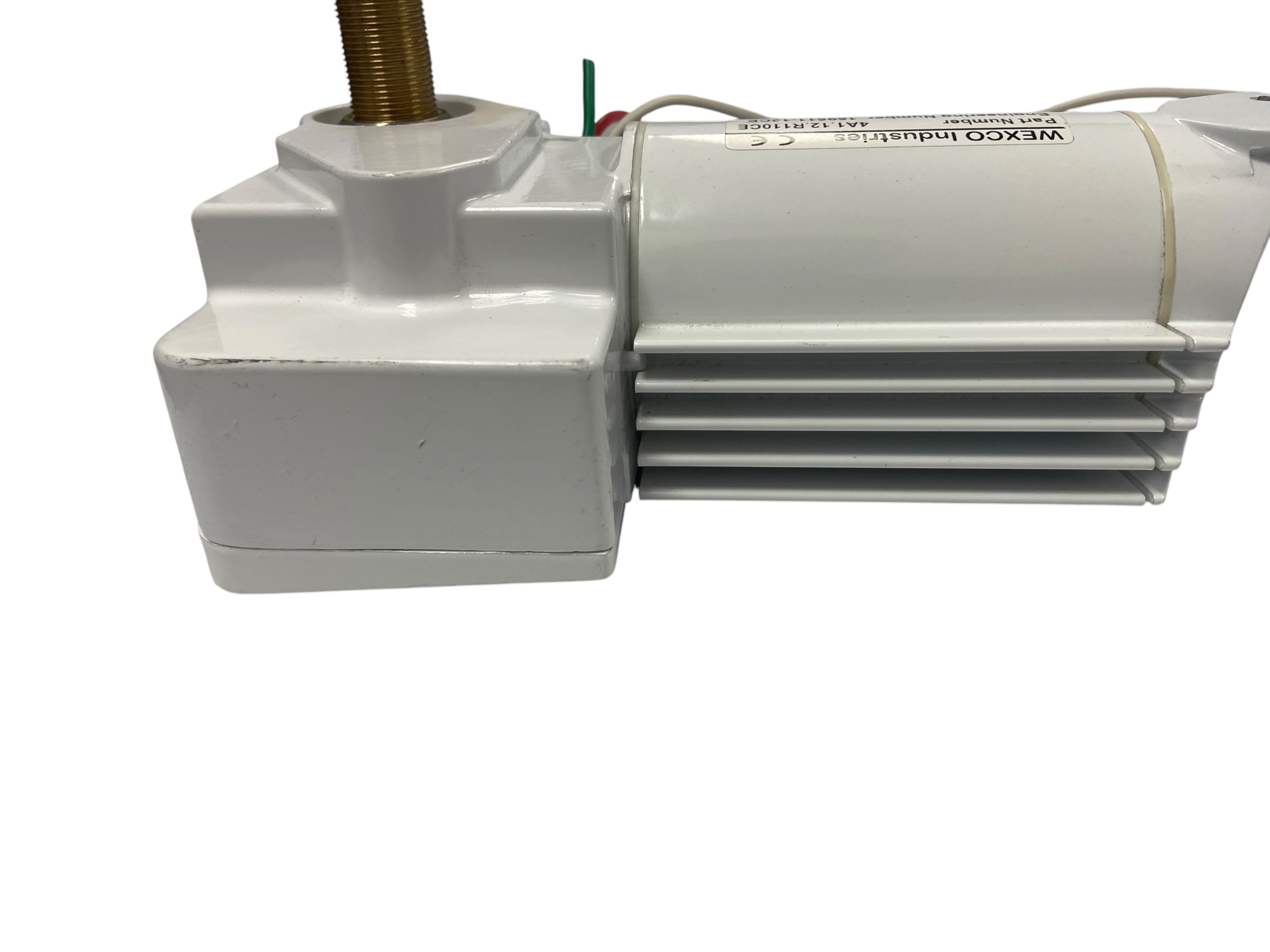

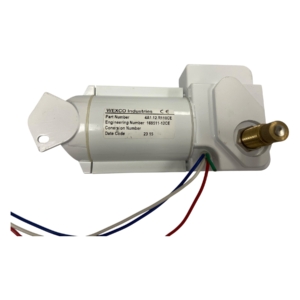

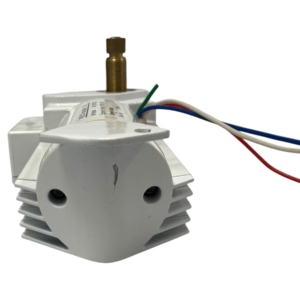

We recently acquired a large inventory of items, these items are used, missing the manufacturer’s original packaging and may have minor cosmetic blemishes (See Photos).

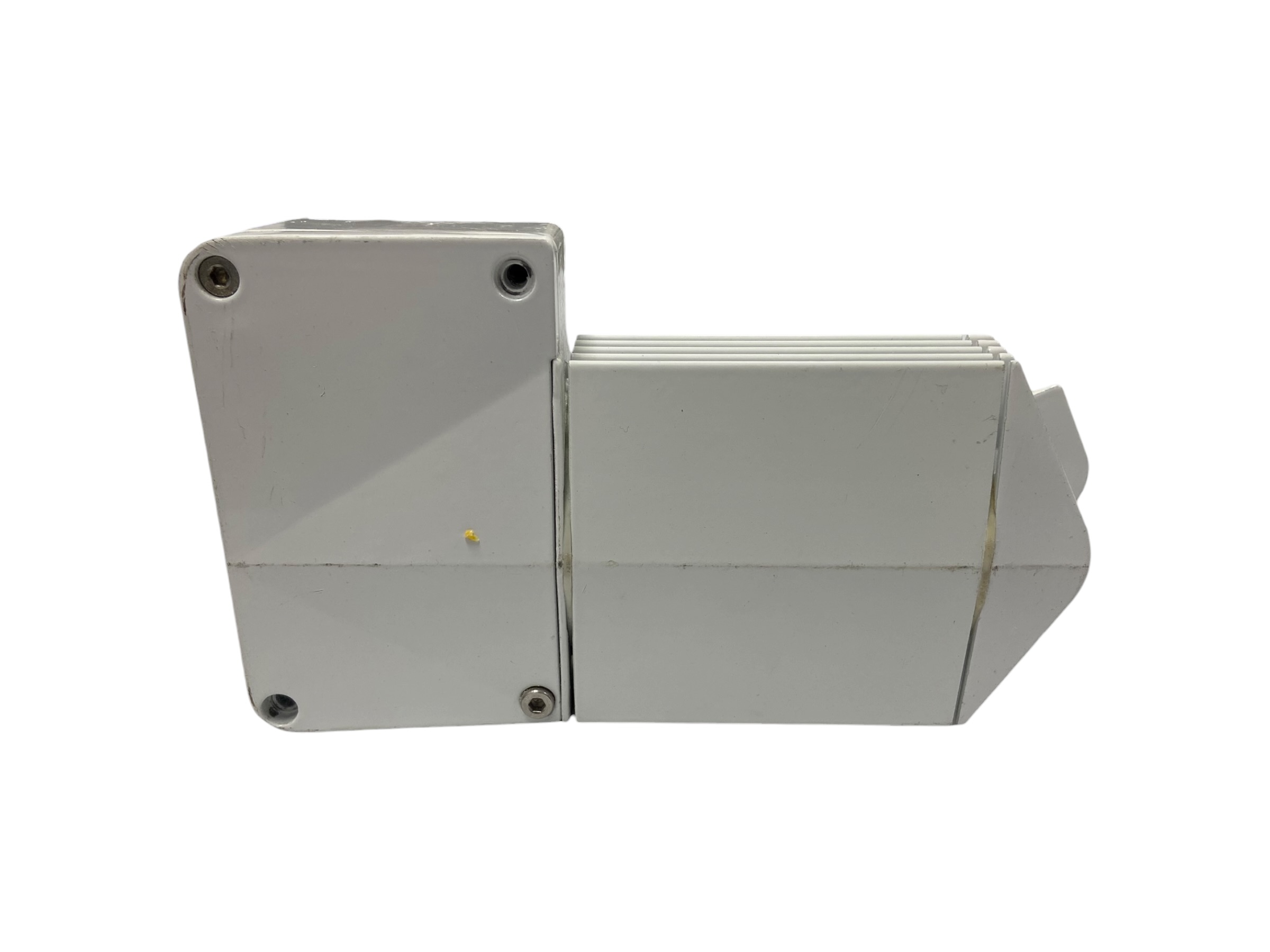

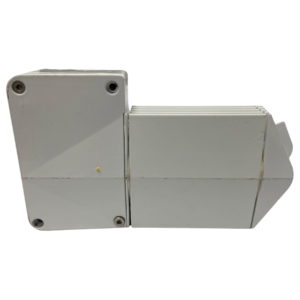

Also these items are missing 2 screws in the back cover.

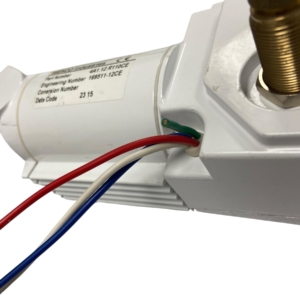

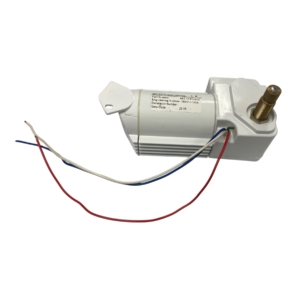

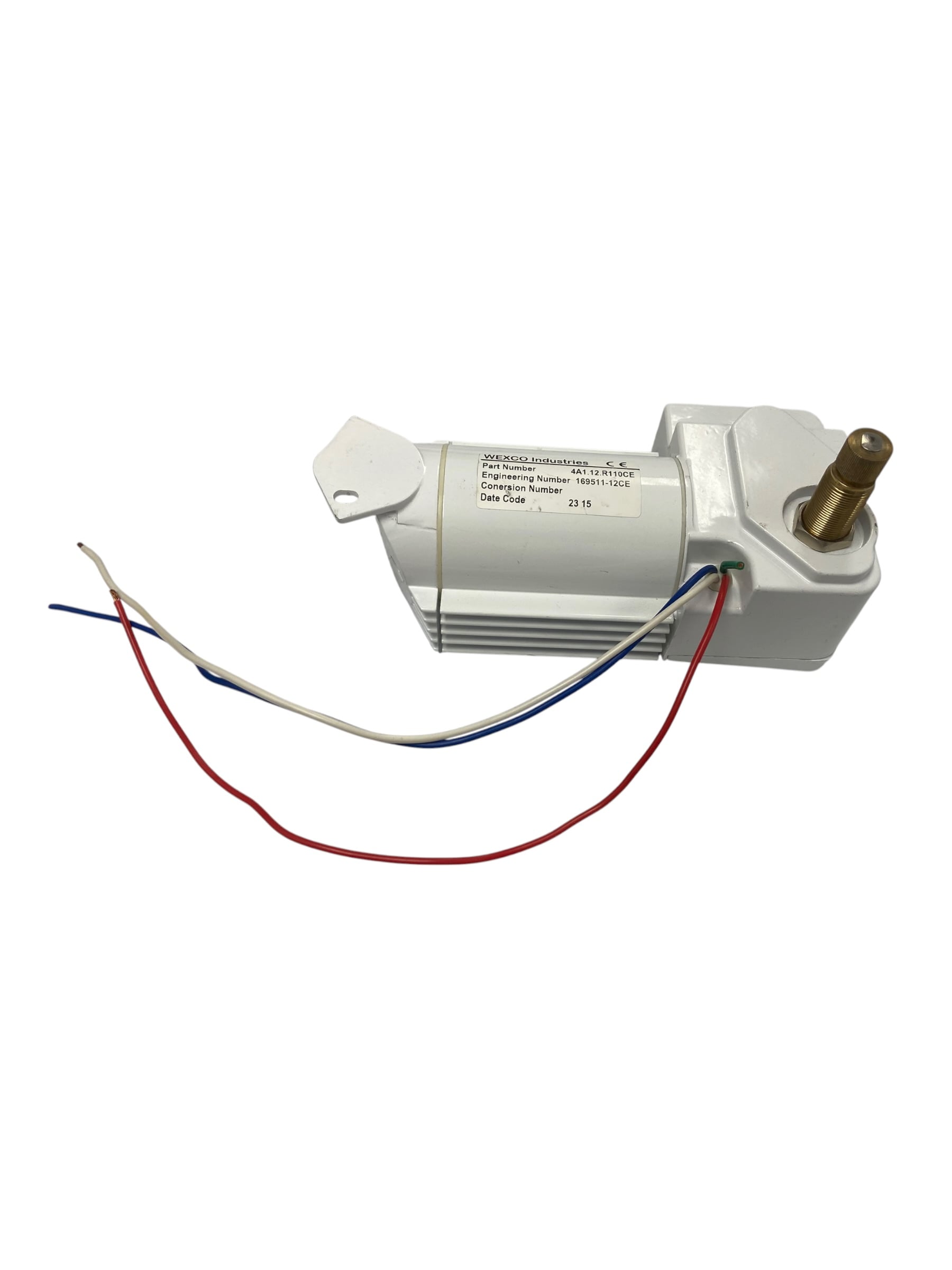

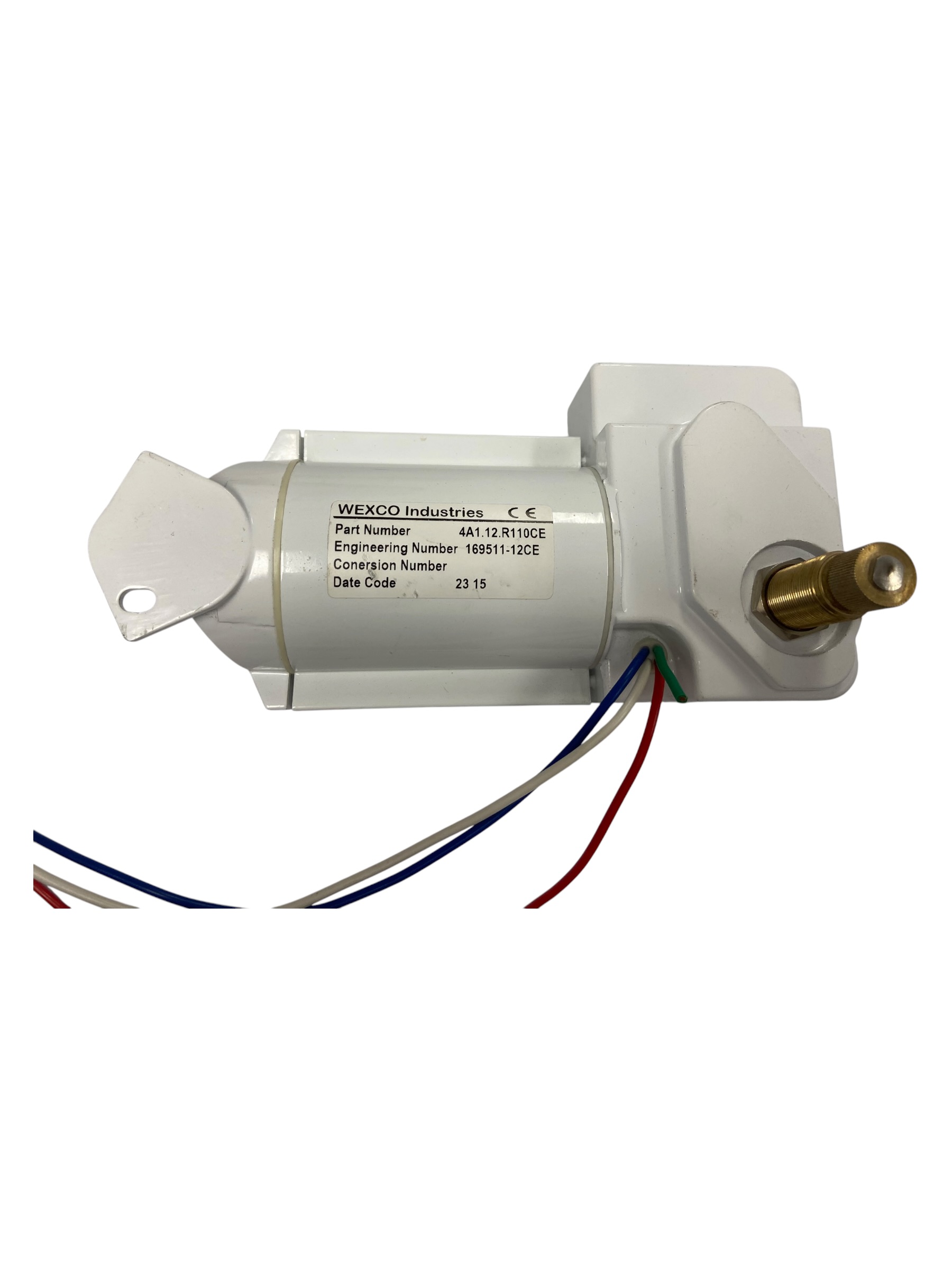

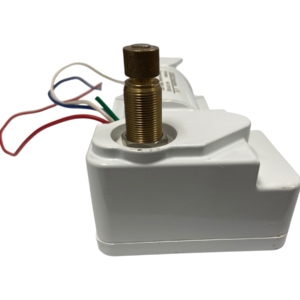

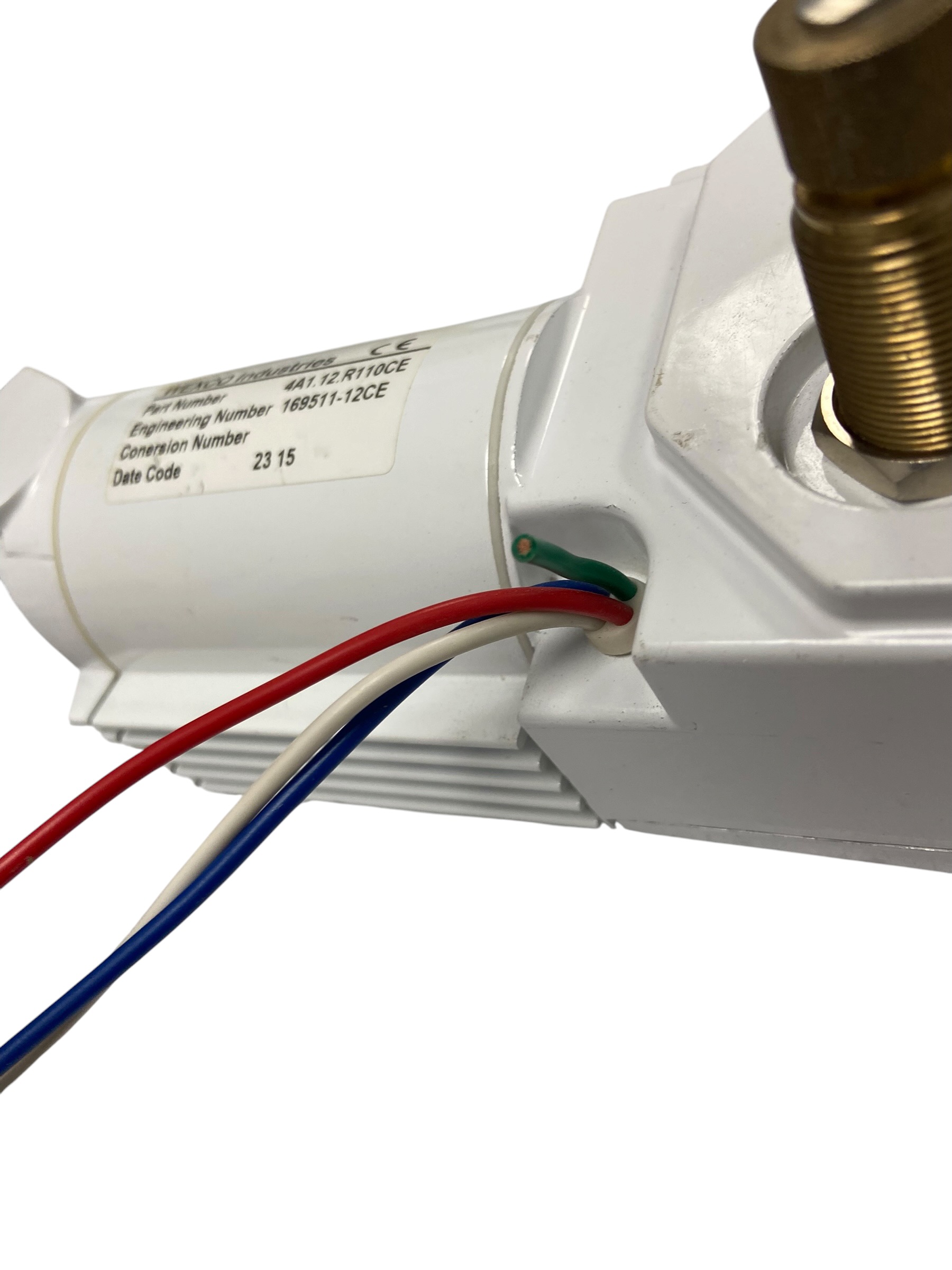

Please be Advise that the previous owner cut the wires when removing this item from the original installation. Please review measurements listed bellow for the exact wire lengths, and be sure to check all photos for clear view of the modification and overall condition.

Wires Lengths:
Green: 1″
Red: 12 1/8″
White: 11 1/2″
Blue: 11″

PRODUCT SPECIFICATIONS:

• Motor torque: 18 Nm
• Motor voltage: 12V
• Low speed: 40 sweeps/min
• High speed: 60 sweeps/min
• Park circuitry: coast-to-park
• Park positions: adjustable: left or right
• Case: powder coated aluminum
• Shaft construction: stainless steel with brass housing
• Shaft length: 1.5″
• Shaft type: 1/2″drum
• Grounding: isolated, white wire
• Fusing: 12 amps minimum

 Wire insulation:

• Red = park
• Green = low speed
• White = ground
• Blue = high speed

WWF motors default at a 110° wipe angle that can be adjusted to one of these 6 different wipe angles:

• 40 degrees
• 50 degrees
• 60 degrees
• 70 degrees
• 80 degrees
• 90 degrees
• 100 degrees

What’s Included:

• Wexco 4A1.12.R110CE WWF Marine Sealed Wiper Motor, 4A Series 110 Degree 12V

Dimensions (L x W x H): 8 x 4 x 5 in, Weight: 4 lbs
